WIRELESS KITS (DT01*, DS01E, DD01E, DD01F)
for additional assistance and explanation prior to ordering materials or cutting openings.
ATTENTION INSTALLING PERSONNEL
As a professional installer you have an obligation to know the product better than the customer.
Prior to actual installation, thoroughly familiarize yourself with this Instruction Manual.
it is possible to place yourself in a position which is more hazardous than when the unit is in operation.
Remember, it is your responsibility to install the product safely and to know it well enough
The precautions listed in this Installation Manual are intended as supplemental to existing practices.
However, if there is a direct conflict between existing practices and the content of this manual,
1/2013
www.PTACdirect.com • © 2009-2011, 2013 Goodman Company, L.P.
IO-729C
Due to policy of continued product improvement, the right is reserved to change specifications and design without notice.
I
NSTALLATION
A
Heating & Air Co nditioning
®
DS01E
DT01A
DT01G
The following installation instructions are for a typical installation.
Please contact your PTAC salesperson
This includes all safety precautions and related items.
Pay special attention to all safety warnings. Often during installation or repair
to be able to instruct a customer in its safe use.
Safety is a matter of common sense...a matter of thinking before acting.
Most dealers have a list of specific good safety practices...follow them.
the precautions listed here take precedence.
is a registered trademark of Maytag Corporation or its related companies
and is used under license to Goodman Company, L.P., Houston, TX. All rights reserved.
PTAC DIRECT SALES, INC.
185 South Kimball Ave., Suite 130 • Southlake, TX 76092
PTAC
I
NSTRUCTIONS
AIR CONDITIONING SENSOR
DD01E
AIR CONDITIONING SENSOR
DD01F

Advertisement

loading
Need help?

Need help?

Do you have a question about the DT01 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Amana DT01 Series

Summary of Contents for Amana DT01 Series

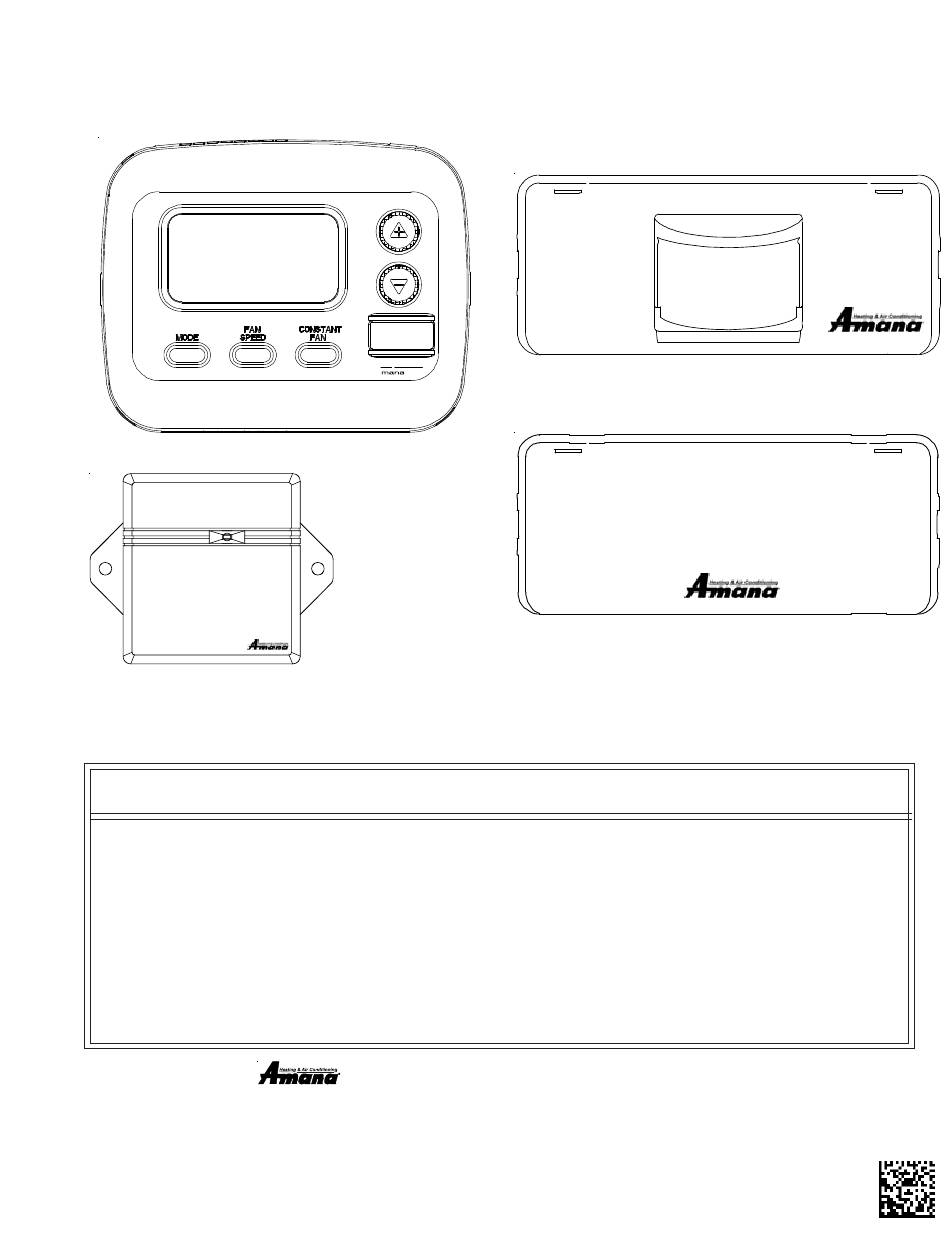

  • Page 1 PTAC WIRELESS KITS (DT01*, DS01E, DD01E, DD01F) NSTALLATION NSTRUCTIONS AIR CONDITIONING SENSOR Heating & Air Co nditioning ® DD01E DS01E DT01A DT01G AIR CONDITIONING SENSOR DD01F The following installation instructions are for a typical installation. Please contact your PTAC salesperson for additional assistance and explanation prior to ordering materials or cutting openings.
  • Page 2 5. Remove antenna cable and route cable through open- ing in bottom of antenna housing. 6. Mount antenna housing with two screws as shown in figure. (NOTE: The Amana brand logo should be in ® the lower right hand corner).

  • Page 3: Terminal Block

    Thermostat Installation for DS01E Kit NOTE: A DT01* must be installed on the digital PTAC unit for the DS01* to be operable. Skip these steps if not installing. 1. Select thermostat mounting location about five feet above the floor, on an inside wall, out of direct sun- light, away from sources of radiant heat (lamps, fire- TWO JUMPERS places, heating and air conditioning equipment, etc.),...

  • Page 4: Power Connection

    Mounting Sensor/Door Magnet Installation WIRED MAGNET AND POWERED DOOR for DD01E and DD01F Kits SENSOR OPTION DD01E and DD01F must be mounted on the top door frame In cases where there is no top door frame, the sensor will as close to the door as possible in the horizontal position. need to be mounted on the wall next to the door.
  • Page 5 Door Magnet Installation Viewed from the back with the power block in upper right corner. Power Connection NOTE: Magnet buckets are shipped from the factory with the magnets in position A. The position may change based on the door and door frame alignment on page 6. Wired Magnet Connection...
  • Page 6 Security Screw location (located on each side of sensor) MAGNET MUST BE 15/16” FROM THE SENSOR MOUNTING PLATE MAGNET HOLDER MAY EXTEND 1/8” max. ABOVE THE DOOR (OR THE DD01E OR DD01F MAGNET MAY EXTEND BELOW THE DOOR FRAME) TO ENSURE THE MAGNET IS NO MORE THAN 1/8”...
  • Page 7 CONSTRUCTION STYLE 1 CONSTRUCTION STYLE 2 Place magnet in Position A Place magnet in Position B in instances when the door in instances when the door extends into the room and frame align. beyond the door frame. POSITION A POSITION B CONSTRUCTION STYLE 3 CONSTRUCTION STYLE 4 Place magnet in Position C...
  • Page 8 DD01E THE ALIGNMENT GUIDE IS AT 15/16” FROM BACK PLATE. AIR CONDITIONING SENSOR ALIGNMENT GUIDES ON BOTTOM OF DD01E CENTER OF MAGNET (IN HOLDER) SENSOR MUST BE 15/16” FROM THE MOUNTING PLATE SENSOR MOUNTING PLATE IMPORTANT NOTE: When properly installed, the center line mark on the bottom of the DD01E or DD01F will line up with the center of the line of the magnet holder containing the magnet.
  • Page 9 DP01* or DL01E Entering Room Number (Skip if not using DP01* Front Desk Platform) 1. The PTAC control can be set for a 4-digit room number. To select the first two digits (floor), press the HEAT key until appears, then press the up down arrows to select the first two digits.
  • Page 10 Binding of RF Devices 3. Press and then immediately release the white tactile button on the back of the DD01* motion sensor. should now be displayed on the PTAC LED display. does not show on the display in 1-2 sec- onds, then press and release the white button a second time.
  • Page 11 CONFIGURATION SETTINGS CHART Configuration Code Description Option Code Description Interface Chassis Membrane* Wireless Remote Wired Thermostat Fan Operation Button present 7-Button, reverts to Cyclic Always run fan (even in Off) 7-Button, reverts to Continuous Reverse Cycle Operation Cooler Only Heat Pump* Service No Operation "Eo"...
  • Page 12 Setback Temps - DD01E / DD01F The DD01* and the DigiSmart™ control can be programmed for 3 different times to activate temperature setbacks. The current factory default temperature setbacks in v2.5 * software release are: 2º from set point in 30 minutes, 3º in one (1) hour, and 6º...
  • Page 13 9. Press HEAT key to scroll to third unoccupied setback time. Press either the up or down arrow to the desired third unoccupied setback time. 10. To exit configuration mode: Press the OFF key. NOTE: Configuration feature mode will also automatically exit if no keys are pressed for a period of two (2) minutes.
  • Page 14 Suggested Wireless Thermostat Locations in Typical Room Layouts Select thermostat mounting location about five feet above the floor, on an inside wall, out of direct sunlight, away from sources of radiant heat (lamps, fireplaces, heating and air conditioning equipment, etc.), away from windows or door to the outside, and avoid areas with poor air circulation.
  • Page 15 THIS PAGE LEFT BLANK INTENTIONALLY...
  • Page 16 is a registered trademark of Maytag Corporation or its related companies and is used under license to Goodman Company, L.P., Houston, TX. All rights reserved. ALES, INC. 185 South Kimball Ave., Suite 130 Southlake 76092 • www.PTACdirect.com © 2009 - 2011, 2013 Goodman Company, L.P.
