Snapdragon 820 SBC Hardware User Guide
2.9.3 RST/VOL- SWITCH
The Snapdragon 820 SBC supports Reset/Volume- Push button switch (SW4) to decrease the volume of audio out
and reset purpose (two actions in single button). RST/VOL- Push button switch (SW4) is physically located at the top
of the board as shown below.

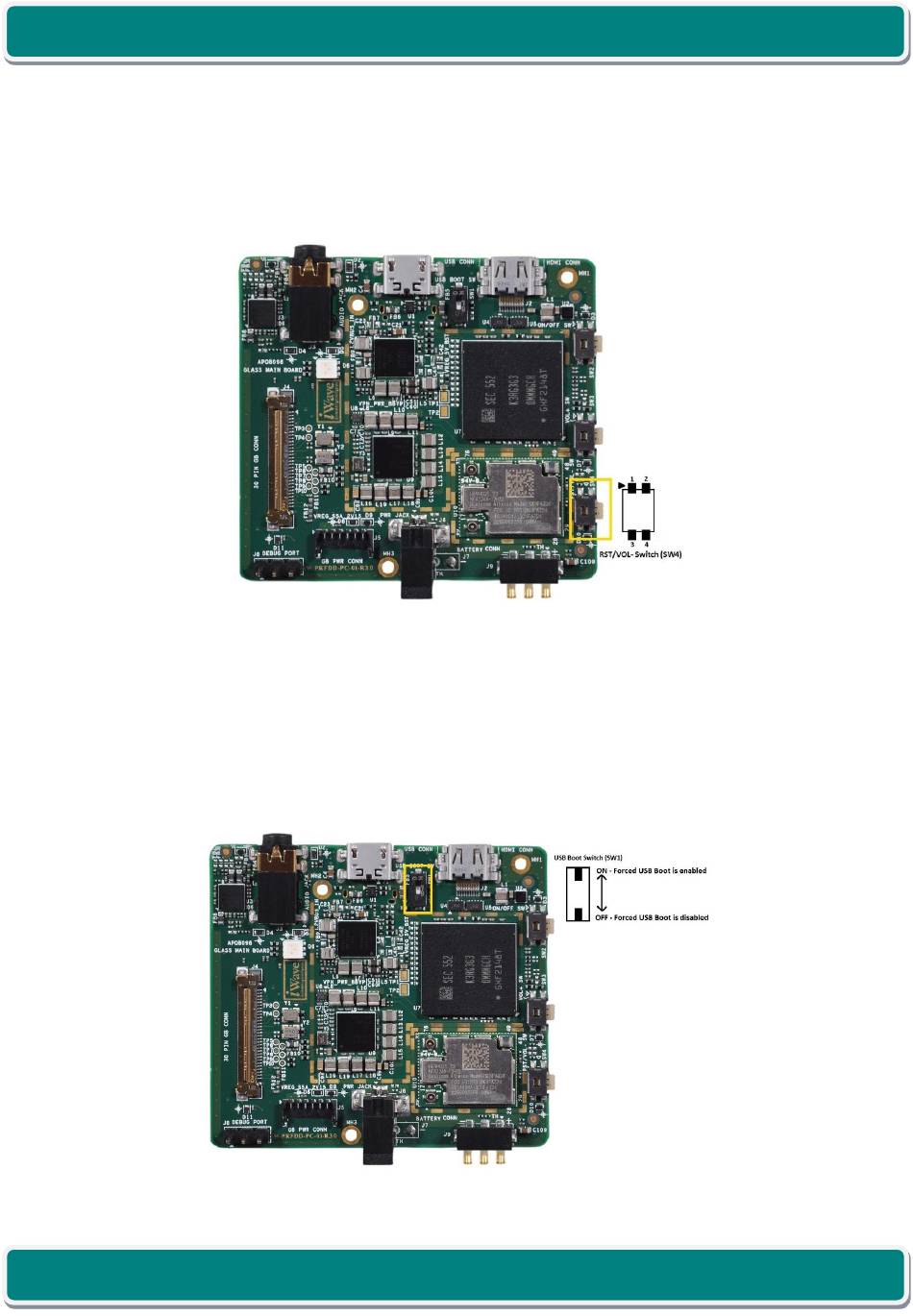

Figure 11: RESET/Volume Switch
2.9.4 Forced USB Boot Selection Switch
Snapdragon 820 SBC supports one position Boot Media Switch (SW1) to set the Forced USB Boot of APQ8096 CPU.
This mode can be used for programming the boot media and debug the CPU through USB Micro B connector (J1).
This USB boot selection switch (SW1) is physically located at the top of the board as shown below.
Figure 12: USB Boot Selection Switch
REL1.0
iWave Systems Technologies Pvt. Ltd.
Page 23 of 33
