3.2.3
LIN Interface (X105)
The board has a connector with 4 pins for LIN. For the pinout of the connector see
is connected to USIC1 Channel 0 for XE16xL module, and USIC0 Channel 0 for XE16xU module of the CPU.

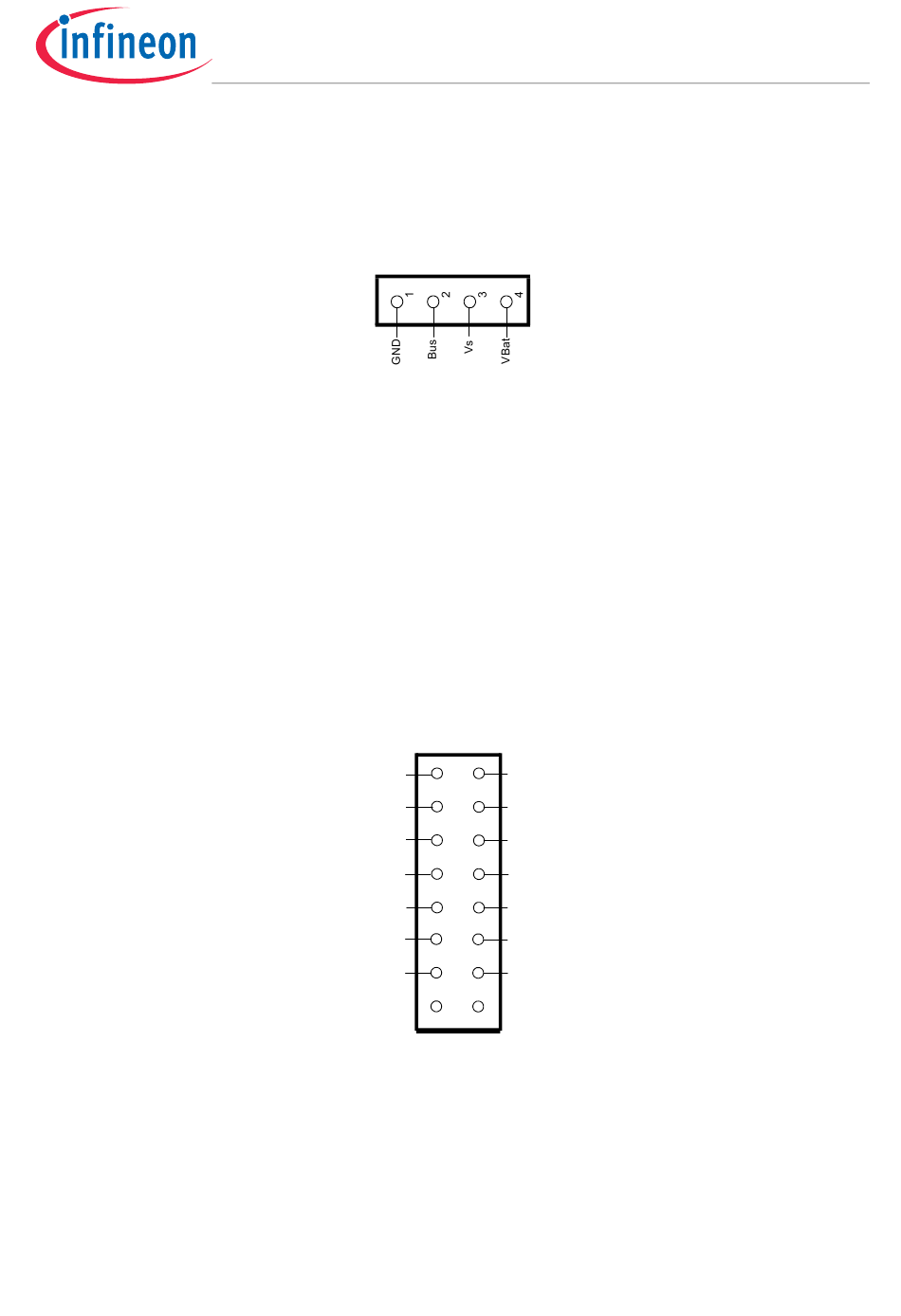

Figure 9
On-board header (X105)
3.2.4
OCDS Interface
The OCDS1 signals are connected to the IDC16 plug (X202). For pinout of the connector see
connect any debugger to this connector.
The signals /BRKIN and /BRKOUT are not connected by default.
If you connect a debug hardware, ensure that the MiniWiggler circuit is not active (ACTIV LED is off), and on the
DAP connector (X203), no hardware is connected or the hardware is tristate.
If the ACTIV LED is on, then stop the active DAS Server JTAG over USB Chip and/or remove the USB connection
to the PC.
Figure 10
On-board header X202
3.2.5
DAP Interface
The board comes with a DAP connector (X203). For pinout of this connector see
DAP/ SPD hardware here. If you use this connector make sure that the MiniWiggler is not active (ACTIV LED is
off) and a connected OCDS1 hardware is disconnected or tristate.
For single pin DAP (SPD) interface, DAP1 is used.
Hardware Manual
Hardware Manual XE166 Low End Easy Kit Board V1.5
TMS
1
2
TD0
3
4
CPUCLOCK
5
6
TDI
7
8
/TRST
9
10
TCLK
11
12
/BRKIN
13
14
15
16
16
Figure
Vcc
GND
GND
/PORST
/BRKOUT
GND
/OCDSE
Figure
Information in Detail
9. The LIN transceiver
Figure
10. You can
11. You can connect a
