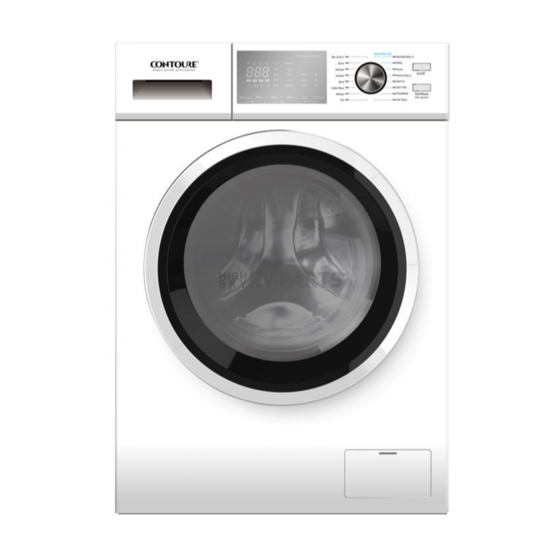

Digital Extra-Large Capacity
Ventless, Washer/Dryer Combo
OWNER'S MANUAL
Model RV-WD900W (White)
RV-WD900S (Titanium)
Before using your washing machine,please read this manual carefully and keep
it for future reference.
Read This Manual
Inside you will find many helpful hints on how to use and maintain your washing machine
properly. Just a little preventative care on your part can save you a great deal of time and
money over the life of your washing machine. You'll find many answers to common problems
in the chart of troubleshooting tips. If you review the chart of Troubleshooting Tips first, you may
not need to call for service.
Advertisement
Table of Contents
Summary of Contents for contoure RV-WD900W
- Page 1 Digital Extra-Large Capacity Ventless, Washer/Dryer Combo OWNER’S MANUAL Model RV-WD900W (White) RV-WD900S (Titanium) Before using your washing machine,please read this manual carefully and keep it for future reference. Read This Manual Inside you will find many helpful hints on how to use and maintain your washing machine properly.
-
Page 2: Safety And Precautions
This product contains a chemical known to the State of California to cause cancer, birth defects, or other reproductive harm. This appliance can cause low-level exposure to some of the substances listed, including benzene, formaldehyde, and carbon monoxide. Front Loading Combo Model No.: RV-WD900W (WHITE) -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING - To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following: - Read all instructions before using the appliance. - Do not wash articles that have been previously cleaned in, washed in, soaked in,or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive substances, as they give off vapours that could ignite or explode. - Page 4 - If the plug (power cord) is damaged, it shall be replaced by the manufacturer or a service agent to avoid any danger. Front Loading Combo Model No.: RV-WD900W (WHITE)
- Page 5 - Take care that power voltage and frequency shall be identical to those of washing machine. - Do not use any socket with rated current less than that of washing machine. Never pull out power plug with wet hand. - To ensure your safety, power cord plug must be inserted into an earthed three pole socket.
-
Page 6: Grounding Instructions
- This washing machine is for indoor use only. Attention shall be paid to protecting the machine Attention shall be paid to protecting the machine - Do not climb up and sit on top cover of the machine. - Do not lean against machine door. Front Loading Combo Model No.: RV-WD900W (WHITE) -
Page 7: Cautions When Washing Clothes
- Please do not close the door with excessive forces. If it is found difficult to close the door, please check if the excessive clothes are put in or distributed well. Cautions during Handling Machine WARNING - Transport bolts shall be reinstalled to the machine by a specialized person. - Page 8 - Always contact your dealer, distribute, service agent or the manufacturer about any problems or conditions that you do not understand. Front Loading Combo Model No.: RV-WD900W (WHITE)
-
Page 9: Installation Requirements
INSTALLATION REQUIREMENTS Installation requirements 1. This machine must be earthed properly. If there is any short circuit, earthing can reduce the danger of electrical shock. This machine is equipped with power cord, which includes plug, earthing wire at earthing terminal. 2. -
Page 10: Location Requirements
3. Additional clearances might be required for wall ,door , and floor moldings. 4. Additional spacing of 25mm on all sides of the washer is recommended to reduce noise transfer. 5. Companion appliance spacing should also be considered. Front Loading Combo Model No.: RV-WD900W (WHITE) -
Page 11: Electrical Requirements
4. Additional spacing of 25mm on all sides of the washer is recommended to reduce n transfer. 5. Companion appliance spacing should also be considered. Electrical requirements Electrical requirements WARNING Electrical Shock Harzard Connect to grounded 3 prong outlet with an individual 12 amp branch circuit protected by a 12 amp circuit breaker. -
Page 12: Unpacking The Washing Machine
If there is any damage to the washing machine during the transportation, or anyitem is missing, please contact the local dealer immediately. If there is any damage to the washing machine during the transportation, or anyitem is missing, please contact the local dealer P.10 immediately. Front Loading Combo Model No.: RV-WD900W (WHITE) -
Page 13: Installation Instructions
INSTALLATION INSTRUCTIONS Dispose the packing materials The packing materials of this machine may be dangerous to kids. Please dispose them properly and avoid easy touch by kids. Please Installation Instructions dispose the related packing materials according to the relevant local regulations. Please do no throw the packing materials away together with the other daily living rubbishes. -
Page 14: Connect Inlet Pipe
See“Tools and Parts”. The siphon break must be a minimum 28" min. of 28" (710 mm) from the bottom of the washer. (710 mm) be needed. Additional hoses might be needed. P.12 P.12 Front Loading Combo Model No.: RV-WD900W (WHITE) -
Page 15: Level The Washer
Level the washer Level the washer 1.When positioning the washing machine, please first check if the legs are closely attachedto the 1. When positioning washing cabinet. If not, please turn them to their original machine, please first check if the legs positions with hand or spanner andtighten the are closely attachedto the cabinet. - Page 16 Do not pull power cord forcibly. - If power cord is damaged or has any sign of being broken, special power cord must be selected or purchased from its manufacturer or service center for replacement Front Loading Combo Model No.: RV-WD900W (WHITE)
-
Page 17: Checklist And Preparation Before Washing Clothes
Operating Instructions OPERATING INSTRUCTIONS Operating instructions WARNING – To reduce the risk of fire, electric shock, or injury to WARNING – To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS before persons, read the IMPORTANT SAFETY INSTRUCTIONS operating this appliance. - Page 18 The symbol types of care labels: the clothes to be washed are classified into cotton, blended fiber, synthetic fiber, silk, wool and artificial fiber. Color: white and colorful colors shall be identified. All new colorful articles shall be washed in a separate way. Front Loading Combo Model No.: RV-WD900W (WHITE)
- Page 19 Size: the articles of different sizes are washed together to increase the washing effects. Sensitivity: soft articles shall be washed separately. As for new pure wool textiles, curtains and silks, the soft washing procedure shall be Operating Instructions selected. Check the labels in all washing articles. The clothes shall be sorted before being put into washing machine.
- Page 20 In the normal washing and draining status, moistures of water- proof clothes and fiber products can not be drained while water is gathered in one direction so that the eccentricity of washing machine is too great and vibration or moving is caused. Front Loading Combo Model No.: RV-WD900W (WHITE)
-
Page 21: View Of Control Panel
Operating Instructions View of control panel View of control panel P.19 Front Loading Combo Model No.: RV-WD900S (TITANIUM) - Page 22 Press Spin 3sec.for my cycle to memory the programme. The default my cycle procedure is Perm Press. - Cold Wash Cold water flows in during wash. - Drain Only Drain off the water. Front Loading Combo Model No.: RV-WD900W (WHITE)
- Page 23 View of control panel -Timed Dry Dry Capacity The reference weight of dry clothes moisture Dry programme Load(kg) (kg) content (min) 4 shirts or 1 jean, 1 synthetic 4 shirts,1 T-shirt or 1jean, 12kg 1 synthetic, 1 T-shirt 3.0kg mix The Special function The Special function - Time Save...
- Page 24 4. Fill softener into Case 3 (when necessary). - Please choose suitable type of detergent for the various washing temperature to get the best washing effect with less water and energy consumption. Front Loading Combo Model No.: RV-WD900W (WHITE) Start up washing machine...
-
Page 25: Select The Procedure
Notes: - As for the agglomerated or ropy detergent or additive, before they are poured into the detergent box, it is suggested to use some water for dilution to prevent the inlet of detergent box from being blocked and overflowing while filling water. - Please choose suitable type of detergent for the various washing temperature to get the best washing effect with less water and energy consumption. - Page 26 • The parameters in this table are only for user's reference. The actual parameters maybe different with the parameters in above mentioned table. • The programme with can be choose dry function. P.24 Front Loading Combo Model No.: RV-WD900W (WHITE)
-
Page 27: Care And Cleaning
Care and cleaning Before your maintenance starts, please do pull out the power plug or disconnect power and close the tap. WARNING - Solvents are forbidden to avoid that the washing machine is damaged, and toxic gases are generated or exploded. - Never use water to sprinkle and wash the washing machine. - Page 28 4. Remove the inlet pipe from the tap. machine. 5. Use water to wash the filter. 2.Pull out the filter with long nose pliers and reinstall it back after being washed. Front Loading Combo Model No.: RV-WD900W (WHITE) 3.Reconnect the inlet pipe.
- Page 29 2.Select any procedure except “Wash” or “Drain” procedure. 3.Press the button “Start/Pause” and keep the procedure running for about 40 seconds. 6. Reconnect the inlet pipe. 4.Remove the inlet pipe from the tap. 5.Use water to wash the filter. Washing the filter in washing machine: 6.Reconnect the inlet pipe.
- Page 30 If need to run machine urgently, it is temperature residual water outflow from the machine tub recommended to open door after water is cooled, to avoid getting burn caused by high temperature residual water outflow from the machine tub Front Loading Combo Model No.: RV-WD900W (WHITE)
