Summary of Contents for Rain Bird SST-600in

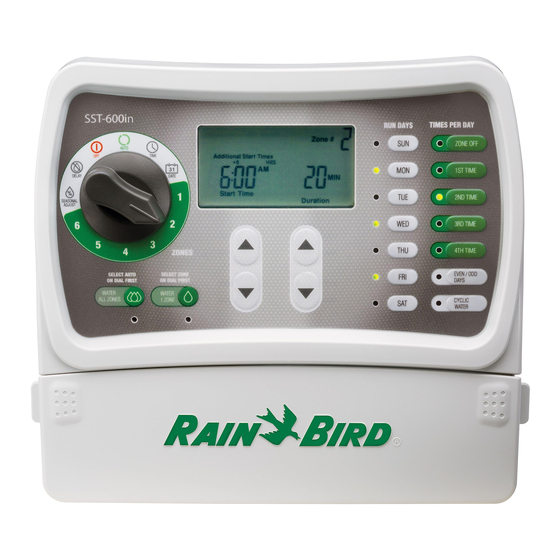

- Page 1 Rain+Birdt Simple To Set Timer (SST) Setup & Operation Instructions SST user manual (EN) web.indd 1 10/11/2016 8:17:22 PM...
-
Page 2: Table Of Contents
Set Start Time and Run Time ..............5 Select Run Days ..................5 for help setting up and operating the Rain Bird SST Timer Select Watering Times Per Day............5 Optional Features ..............6 Call Rain Bird toll free Technical Support at 1-800-724-6247 Multiple Start Times ................6... -
Page 3: Installation
Installation Step 2. Connect Power WARNING: DO NOT plug in or apply power to the timer until Tools and Supplies Needed you have completed and checked all wiring connections. • Phillips screwdriver Indoor Timer • Wire stripper Attach the transformer connector to the 24VAC POWER pin •... -
Page 4: Step 3. Connect Valve Wires To Timer
Unscrew the wire-nuts from the three wires connecting the NOTE: To insert or remove a wire, use a screwdriver to press power cord to the timer. down on the connection release. Remove the metal bracket holding the power cord to the back of the wiring compartment and pull the cord out through the bottom of the cabinet. -
Page 5: Step 4. Verify System Operation
Step 4. Verify System Operation Optional Accessories Battery Pull Tab Rain Sensor To activate the internal battery, grasp the yellow pull-tab on Connect an optional Rain Sensor to the Timer the side of the timer and pull it out. Remove the wiring bay cover at the bottom of the unit. NOTE: If the timer doesn’t have AC power for more than Remove the yellow jumper wire from the terminals marked a week, the time needs to be reset. -
Page 6: Master Valve Or Pump Start Relay
Master Valve Or Pump Start Relay Additional instructions for connecting a pump start relay To avoid possible pump damage, connect a short jumper Connect an optional master valve or pump start relay wire from any unused zone terminal(s) to the previous ter- SST timers support the use of a master valve or pump start relay. -
Page 7: Setting The Timer
Setting the Timer Select Run Days " " Press the RUN DAYS buttons to select which days to water. Step 1. Set Time Active watering days will show lights illuminated. Turn the dial to the SET TIME position. NOTE: By default ALL days are lit. Press the button(s) to turn "... -
Page 8: Optional Features
Optional Features Normal Operation While set to AUTO RUN, one of the following screens will be dis- Multiple Start Times played: After selecting a time per day the screen will show that time, “First", as an example. Not Watering Screen displays the current time, the zone that is scheduled to be First watered next, and the date and time when watering will occur. -
Page 9: Manual Operation
Manual Operation Water 1 Zone Now Turn the dial to select a ZONE. Choose from two Manual Watering options: " " Press the WATER 1 ZONE NOW button to start watering (default run time of 10 minutes). Zone Water All Zones Now Minutes Turn the dial to AUTO RUN. - Page 10 6991 East Southpoint Road Tucson, AZ 85756 USA Tel: (520) 741-6100 Fax: (520) 741-6522 2016 Rain Bird Corporation Registered trademark of Rain Bird Corporation Questions? Call 1-800- RAIN BIRD (800-724-6247) or visit www.rainbird.com Rev.10/16 09OC16 SST user manual (EN) web.indd 8...
