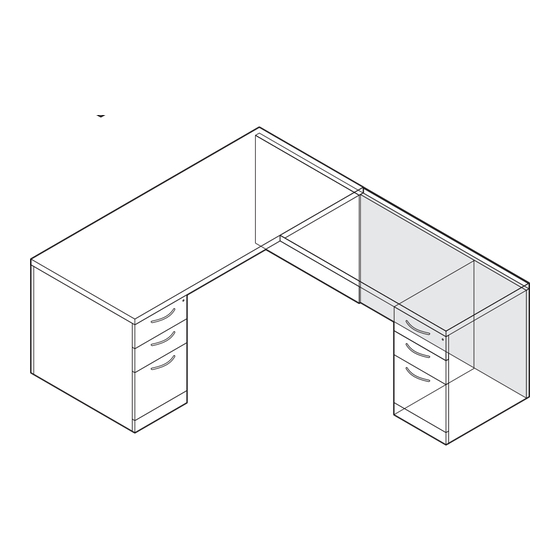

Return worksurface has a coped edge
to provide a smooth fit with adjacent top.
If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
© 2018 Steelcase Inc.
Grand Rapids, MI 49501
U.S.A.
Printed in U.S.A.
Rear view of Return with
L-Shape End Panel
Modesty Panel
installed on the
back of a pedestal
(refer to page 7).
Steps for correct installation of
soft close drawers
1
Pull LH and RH suspensions to full extents
2
Find and disengage rear posts, LH and RH
3
Align drawer suspensions and install
Elective Elements, Walden - Freestanding Return
NOTICE
Soft close mechanism
can be damaged if this
step is skipped.
2
RH post is
shown here
in yellow
1
Rear view of Return with
a Full Modesty Panel
Bottom view of Return with a
Technology Modesty Panel
(refer to page 9).
3
DRILL BIT
1/8"
Page 1 of 9
939500245 Rev E
Advertisement
Table of Contents
Related Manuals for Steelcase Elective Elements
Summary of Contents for Steelcase Elective Elements
- Page 1 (refer to page 9). (refer to page 7). NOTICE If you have a problem, question, or request, call DRILL BIT your local dealer, or Steelcase Line 1 at Steps for correct installation of Soft close mechanism 1/8" soft close drawers can be damaged if this 888.STEELCASE (888.783.3522)
- Page 2 ® FULL MODESTY PANEL CLIP Insert (3) connecting bolts into the holes MODESTY PANEL END PANEL on the modesty panel as shown. Align modesty panel with end panel (2a) and insert the connecting bolts into the clips (2b) With connecting bolt inserted into clip push modesty panel downward (2c) until connecting bolt is secured (2d).
-
Page 3: Drill Bit
® ARROW POINTING IN DIRECTION OF THE CONNECTING BOLT HEAD Insert (5) cam locks into the holes on the modesty panel and end panel (3a), making sure the arrow on the cam lock is pointed toward the connecting bolt (3b). Turn worksurface over onto carpet or other clean, soft material. - Page 4 ® CONNECTING BOLT Insert (5) connecting bolts into the holes on underside of return top. Lower modesty/end panel assembly onto top so that bolts are inserted in holes. Secure all hardware with a half turn of cams. Page 4 of 9 939500245 Rev E...
- Page 5 ® Align panel to panel bracket to end panel of adjoining unit and secure using (1) screw. ADJOINING UNIT PANEL TO PANEL BRACKET Page 5 of 9 939500245 Rev E...
- Page 6 ® Align modesty panel on return with panel DRILL BIT to panel bracket (10a) and slide modesty panel (1/8") into bracket (10b). Locate brackets on underside on return and drill (5) pilot holes (11a). Secure brackets to adjoing unit by attaching with five (5) screws (11b).
-
Page 7: Rear View
® INSTALL A MODESTY PANEL TO A PEDESTAL Locate (2) holes Remove drawers (if any) from pedestal. in stretchers in back of pedestal as shown, Drill (2) holes through pedestal back then drill through back panel in the locations shown. panel of pedestal. -
Page 8: Front View
® Position pedestal onto worksurface so that it is flush to the modesty panel and edge of worksurface. Refer to assembly direction 939500237 for more detailed information if required. Secure pedestal to worksurface. Secure modesty panel to pedestal through holes in back panel. Carefully turn assembly over and reinstall drawers. -
Page 9: Side View
® NOTE: Bracket used on end panel is about 3/8" (9.5 mm) deep. Bracket for 15" and 18" peds is about 1" (25 mm) deep. Bracket for lateral file peds is about 1-1/4" (32 mm) deep. Center catch side to TECHNOLOGY MODESTY PANEL side in kneespace.
