- Page 1 User Manual Mains Operated Thermoptek Smoke Alarm Mains Operated Heat Alarm Mains Operated Thermoptek Smoke Alarm with Wi-Safe 2 Mains Operated Heat Alarm with Wi-Safe 2 TEST YOUR ALARM WEEKLY ST-230 / HT-230 / WST-230 / WHT-230...
- Page 2 KM 676743 KM 677057 With the present declaration, FireAngel Safety Technology Limited confirms that the WST-230 and WHT-230 conform to the essential requirements and other relevant measures of the 2014/53/EU Directive. The Declaration of Conformity can be accessed on the website: http://spru.es/WST-230 or http://spru.es/WHT-230...
-
Page 3: Table Of Contents
CONTENTS Introduction ....4 Alarm Test ....12 Sensor Technology ..5 Alarm Smart Silence . -
Page 4: Introduction

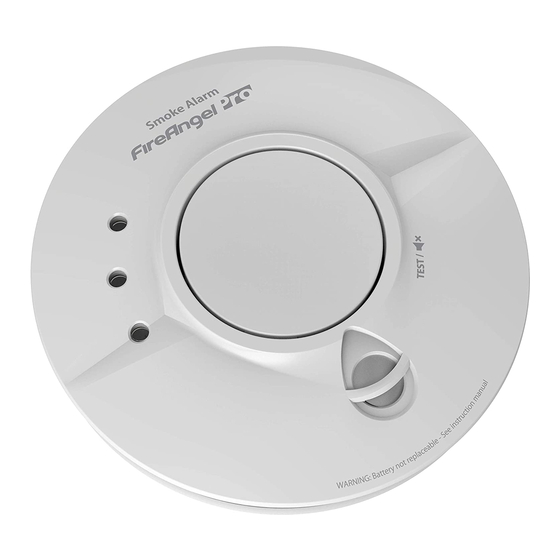

INTRODUCTION Smoke Alarm ST-230 / WST-230 Heat Alarm HT-230 / WHT-230 Please read this guide in full before using your alarm! This user guide covers a number of different models. Some of the illustrations will look different to your particular model. -
Page 5: Sensor Technology
SYSTEM GRADES AND CATEGORIES high fire risk to occupants, including any The mains powered FireAngel Pro alarms kitchen and the principal habitable room. with 10 year life are suitable for Grade D1 LD3 = A system incorporating detectors in systems. -
Page 6: Positioning
POSITIONING Locations of alarms must be compliant with either BS 5839: Part 6 or relevant Building Regulations if in any doubt. This alarm is not intended for any non-residential, commercial or industrial application, nor for any other purpose other than described in the above. -
Page 7: Hardwire Installation
HARDWIRE • If trunking is required, snap the break- out tab away from the base plate prior INSTALLATION to connection. • The wiring must be connected to the The alarm base plate is designed to be permanently mounted, using it’s own built- terminal block as follows: in terminal block to connect it to the mains. -
Page 8: Hardwire Interconnect
YT2 trunking. HARDWIRE INTERCONNECT ST-230 and HT-230 For multiple alarm installations use a ‘three core and earth’ style cable between all the alarms to be interconnected. Connect the interconnect cable between each alarms ‘I’... -
Page 9: Wireless Interlink
• Exceed 250 m of connecting wire alarms will still need a mains supply per circuit. in accordance with BS 5839: Part 6 and • Connect FireAngel Pro alarms to any Building Regulations. other models produced by another IMPORTANT: Obstructions such as steel manufacturer. - Page 10 How to ‘learn-in’ two wireless alarms into a network: Install Alarm 1 as described earlier (see ‘Hardwire Installation’). Install the base plate for Alarm 2 in one of the recommended locations. Learn button To complete the installation, fit Alarm 2 onto it’s base plate.
-
Page 11: Mixed Systems
MIXED SYSTEMS Interconnecting both hardwired and wireless products together in a network: Battery operated alarms WIRING KEY = Neutral Mains 230V AC = Interconnect Power Supply = Live (from upstairs circuit) = Earth = Wireless Interlink Mains 230V AC Power Supply (from downstairs circuit) Make sure there is only one wireless connection into each wired network. -
Page 12: Alarm Test
ALARM TEST • Remove the dust cover from each alarm before use. Briefly press the test button in the centre Dust cap and release. • Test the alarms on a weekly basis. • Keep this guide in a safe place for future reference. -
Page 13: Alarm Smart Silence Tm
ALARM SMART If your alarm is interlinked with other alarms, pressing the test button will SILENCE™ also silence other alarms in the network. However, any alarm that has sensed Your alarm features ‘Smart Silence™’ smoke (an instigating alarm) cannot be technology. -
Page 14: Troubleshooting
TROUBLESHOOTING Problem Solution • Make sure you push the centre of the test button firmly. Your alarm does not • If you are in the process of 'learning-in' the alarm and it does sound during testing not test, repeat the process. •... - Page 15 • Check the location of your alarm (see ‘Positioning’). • Check that your alarm is definitely the source of chirping; make sure the noise isn’t coming from another alarm. • If the alarm is chirping once approximately every 45 seconds and the amber LED is flashing around the same time, it Your alarm chirps indicates that the battery is low.
-
Page 16: Maintenance
5 years for the WST-230/WHT-230 and 2 years for the ST-230/HT-230 - from the date of purchase. Provided the product is sent back to FireAngel Safety Technology Limited with proof and date of purchase,... - Page 17 5 years for the WST-230/WHT-230 and 2 years for the ST-230/ HT-230. This warranty does not affect your statutory rights. Except for death or personal injury, FireAngel...
