6

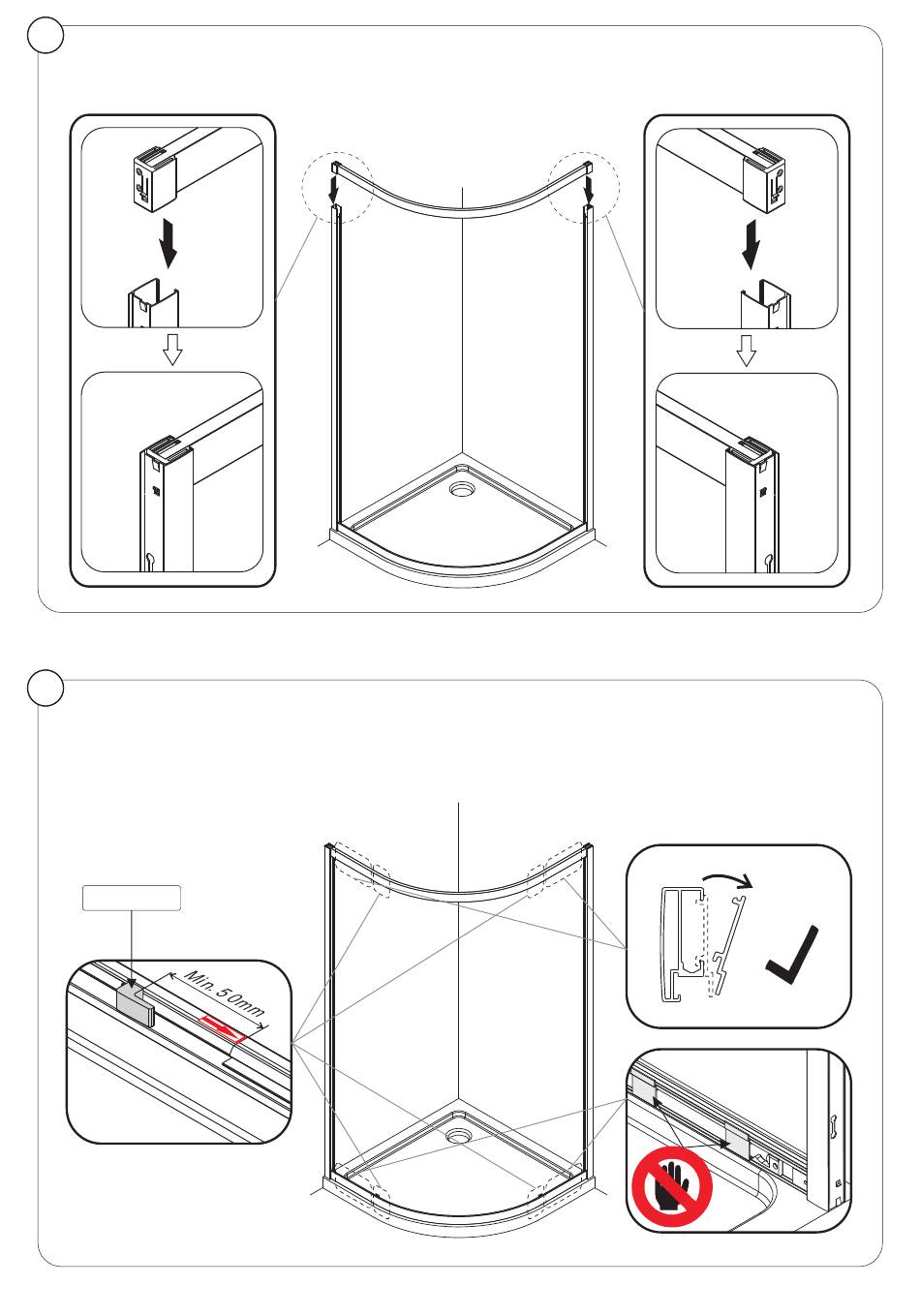

Slide the top frame fully into the ends of the wall profiles. Check the frame is locked in place
and does not slide back out of the frame.
A
B
7
A. Slide the clip K143/K144 away from the seal on the top and bottom of the frame.
B. Remove the PVC installation tool by releasing the side closest to the top first, then lift out
from the frame.
C. Leave the bottom PVC installation tool in place to aid the fitting of the fixed glass panel.
Note: make sure the installation tools are positioned at each end of the bottom seal.
K143/K144
A
5
C
D
B
C
