Assembly of the chassis

1
2
2
3a
3
3
4
6

Assembly of the seat-unit

4
7
Manual Ozone City v. 1.2

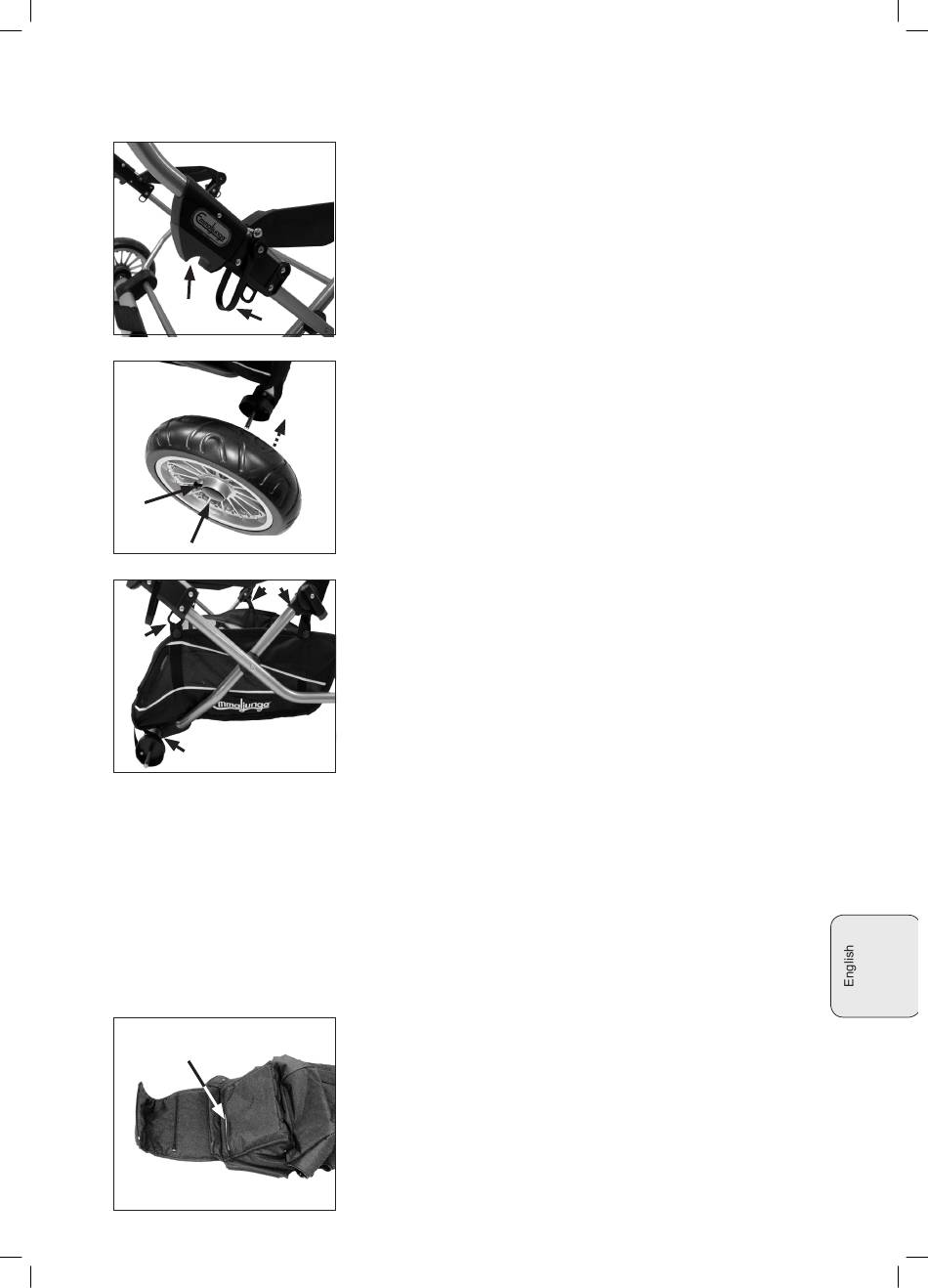

Unfolding the chassis
• Apply the brake on the pram. To unfold the chassis, pull the handle
upwards, whilst holding down the side of the chassis.
• The safety catch (1) is activated to prevent unintentional folding if the
chassis lock (2) is not locked into position.
WARNING
• The chassis locks need to click into the locked position.
• Please make sure, before you use the pram that the chassis lock
1
(2) is in the locked position otherwise the pram will be dangerous to
use.
Attaching the wheels
• Remove the plastic protection from the axles. Save them for future
use.
• Release the brake by pushing the brake bar upwards using mini-
mum force with your foot.
• Press in the hub cap's release button (3 or 3a), push the wheel onto
the axle as far as it can go. Release the button and pull the wheel
towards you, until you hear a definite click. Repeat the same proce-
dure for both rear wheels. Make sure that the wheels are attached
properly and cannot be pulled off the axle.
IMPORTANT
• The wheels are greased and can leave marks on textiles. Please
5
use wheel protection indoors to protect your floors.
• Risk of suffocation. Don't let your child play with or in some other
way handle the plastic protectors.
• Attach the tray to the rings on the chassis (4 and 5).
• Fasten the tray around the brake axle (6).
Removing and assembling the seat-fabrics
• The fabrics of the pram are assembled at delivery, but can be remo-
ved to be washed.
• Before washing, remove the wooden seat plate which you will find
within the seat unit fabrics. Open with the aid of the zipper (7).
IMPORTANT
• Follow the washing instructions in this instruction manual's section
for care and maintenance.
83
