3. Remove the Impeller as shown in the impeller removal section.

Remove the shaft sleeve

1. Remove the shaft sleeve (126) from the shaft (122). Use a short pry bar to gently facilitate
2. Remove the impeller hub o-ring (412A) and shaft sleeve o-ring (412F).
100

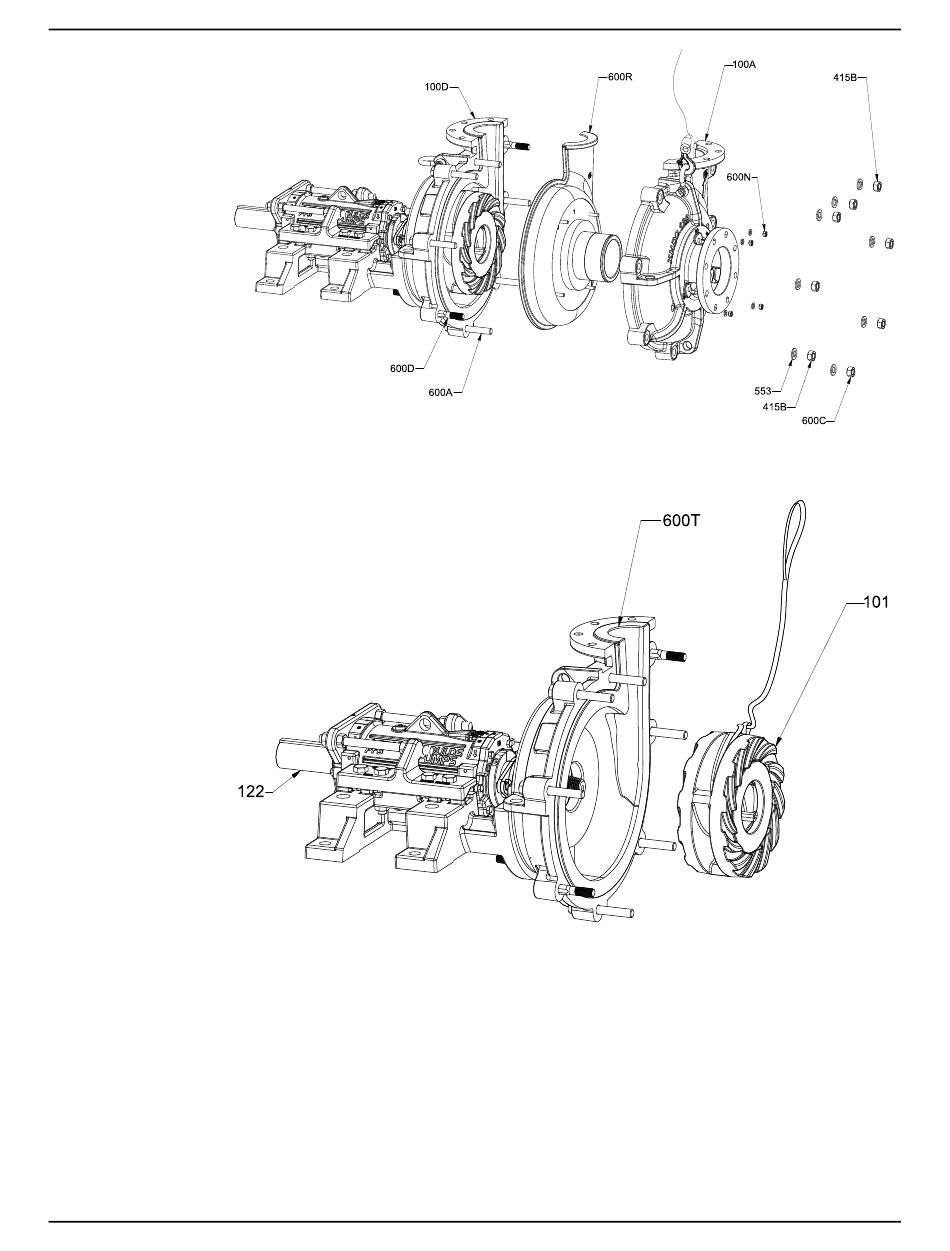

Figure 86: Volute liner and impeller lifting
Figure 87: Impeller Removal
removal, if necessary.
