GAS CONNECTION

WARNING:
Before starting any work related with gas installation, turn off gas supply. Risk
of explosion.
1. Connect your appliance to gas cock from the shortest way and in a manner
to prevent any leakage. For safety, the hose used should be maximum 125 cm
and minimum 40 cm.
2. While making gas leakage control; never use lighter, match, glowing cigarette
or similar inflammable matter.
3. Apply soap bubble on connection point. If any leak/leakage exists, foaming will
occur on soaped region.
4. If the cooktop is to be mounted on a cabinet or openable drawer, a heat protection
panel having 15 mm minimum opening should be mounted under the cooktop.

FOR LPG CONNECTION

Main gas pipe
Gasket
Hose inlet connector
Metal clamp
Lpg connection hose
NOTE:
The regulator to be affixed on LPG cylinder should have 300 mmSS feature.
WARNING:
Gas hose and electric connection of the appliance should not pass next to hot areas such
as back of the appliance. Gas hose should be connected by making wide angle turns
against breaking possibility. Movement of appliance whose gas connection is made may
cause gas leakage.

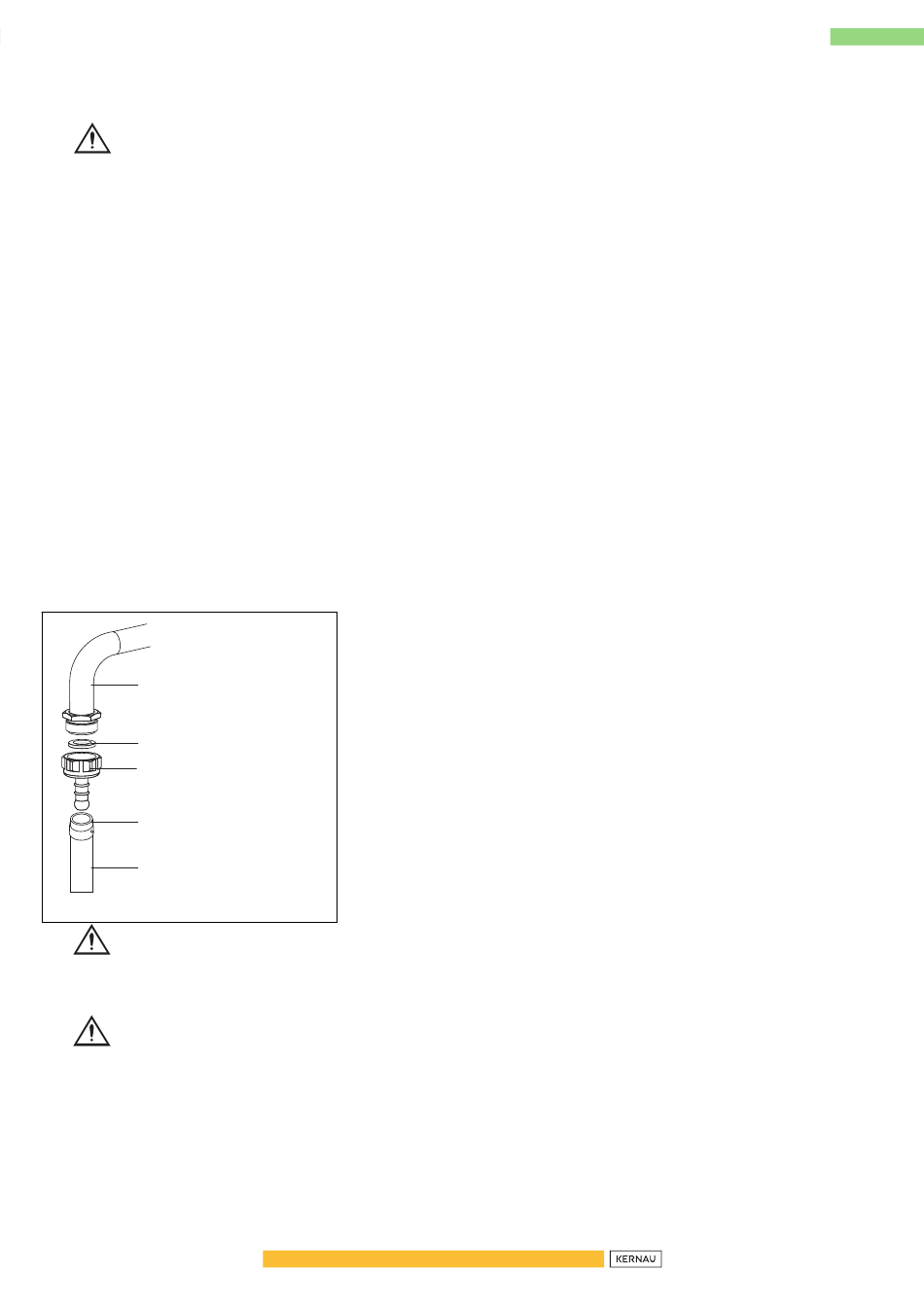

For LPG (cylinder) connection, affix metal clamp on
the hose coming from LPG cylinder. Affix an edge of
the hose on hose inlet connector behind the appliance
by pushing to end through heating the hose in boiled
water. Afterward, bring the clamp towards end section
of the hose and tighten it with screwdriver. The gasket
and hose inlet connector required for connection is as
the picture shown below.
