Warmington Tasman 46L & 70L Fires
Freestanding Fires - Clean Air Approved Wood Burner
Installation Instructions

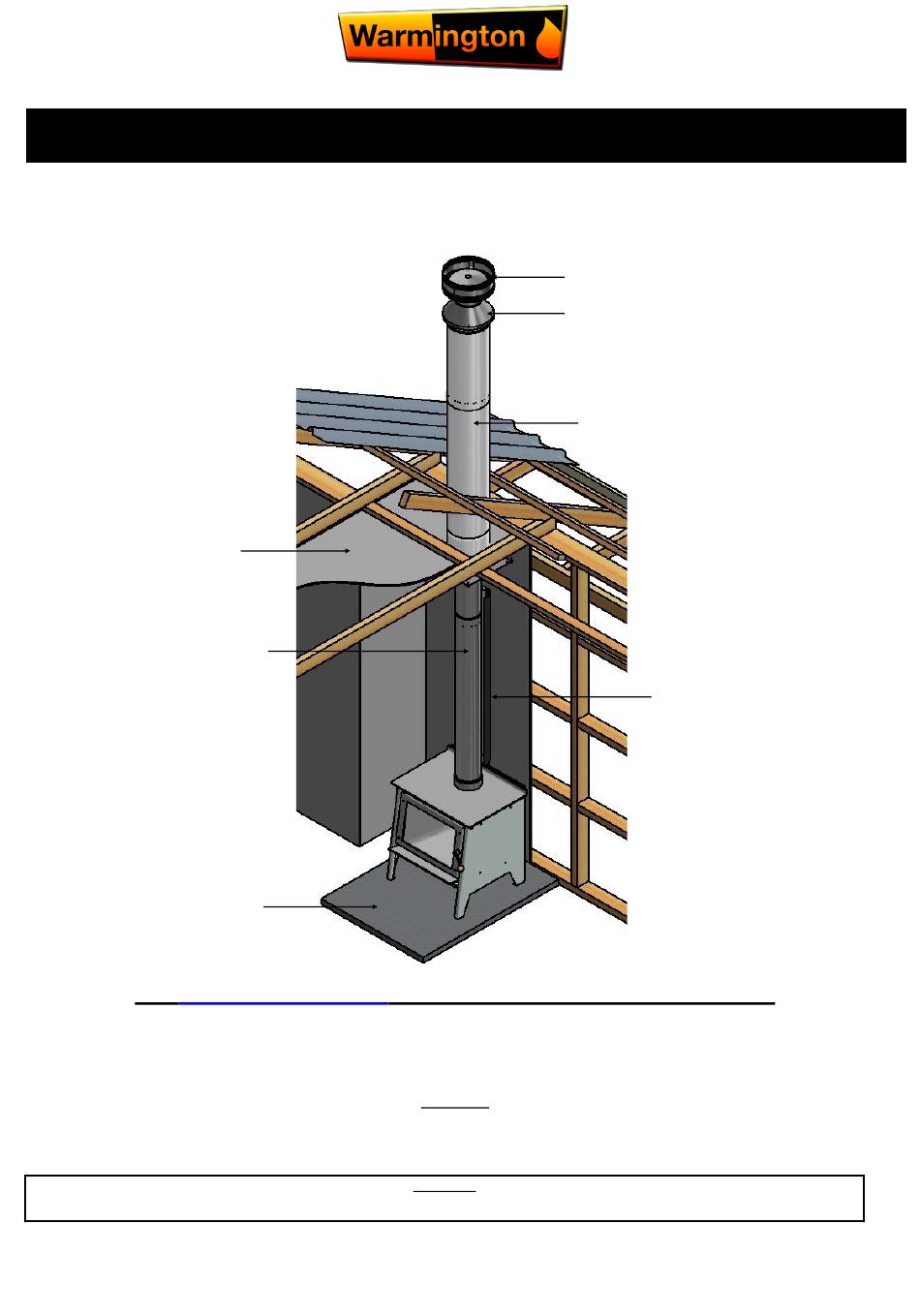

ADD Cowl
Flashing Cone
Galv Combo Liner
Ceiling
Flue
Warmington
Double Flue
Shield
Floor Protector
Visit
www.warmington.co.nz
for Spec's, DWG's and PDF uploads of Fires
Fire, Flue System and Instructions to Comply with ASNZS 2918:2001
Keep these Instructions for further reference......Ensure that you have the correct and current Installation details for the Warmington Fire
Installation
The Warmington unit is to be Installed by a Certified Warmington Installer or a Certified NZHHA SFAIT Installation Technician .
See www.warmington.co.nz/members for a Certified NZHHA SFAIT Installer in your area .
CLEARANCES TO COMBUSTIBLE SURFACES UNLESS STATED
IMPORTANT
Read all the instructions carefully before commencing the Installation. Failure to follow these instructions may result in a fire hazard and void the warranty
Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification.
All Dimension are in mm.............Copyright ©
1
Advertisement
Related Manuals for Warmington Tasman 46L Fire
Summary of Contents for Warmington Tasman 46L Fire
- Page 1 Keep these Instructions for further reference……Ensure that you have the correct and current Installation details for the Warmington Fire Installation The Warmington unit is to be Installed by a Certified Warmington Installer or a Certified NZHHA SFAIT Installation Technician . See www.warmington.co.nz/members for a Certified NZHHA SFAIT Installer in your area .
- Page 2 When Tested in Accordance with AS/NZS 4012 Performance may vary from tested values depending on actual operating conditions. Date of installation: _____/_____/20_____ Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
- Page 3 Serial Number Check Flue Height 3600 Packed By Measured From Top of Cabinet C + 3600 Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
- Page 4 ASNZS 2918 (minimum Flue Shield height is 1200mm) BAFFLES & POSITIONING Vermiculite Board Baffle in Position Steel Baffle Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
- Page 5 Secondary Air Holes on the back plate are clear of back of the firebox. any obstructions. Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
- Page 6 Seismic Restraint complies with ASNZS 2918:2001— Ref 3.8 Seismic restraint holes on base of firebox legs Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
-
Page 7: Flue Details
It is the responsibility of the installer to ensure that the installation of the flue kit complies with AS/NZ 2918:2001, the appli- ance manufacture’s specifications for flues and that relevant Local Body requirements are adhered to. Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©... - Page 8 All external air vents & ceiling penetrations must be bird proofed with permanently fixed screens. All flashing to comply with E2. Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
-
Page 9: General Information & Operation
Warmington wood-burning appliances work best when a small amount of ash is left approximately 25mm deep in the firebox after cleaning, this aids with stable burning. -
Page 10: Chimney Maintenance
11. Flue System The installation and construction of the flue system must comply with ASNZS 2918. The fire requires a Warmington Tested and approved flue system only, as tested to ASNZS 2918. The tested flue system should not be modified in any way with- out the written approval of the manufacturer. - Page 11 Paint (Stovebright) 17. Installation The Fire is to be Installed by an Approved Warmington Installer or a Certified SFAIT NZHHA Installation Technician . See www.homeheat.co.nz/members for a Certified SFAIT NZHHA Installer in your area . GENERAL INFORMATION ON PAINT & FINISHING Information on the paint coating is on the web site: http://www.forrestpaint.com/stovebright/troubleshooting_guide1.html...
- Page 12 Fire Box Litres : Approx. up to 4.35kg TBA kg Industries 1994 LTD PO Box 58652, Botany 2163, Auckland www.warmington.co.nz Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All Dimension are in mm………….Copyright ©...
