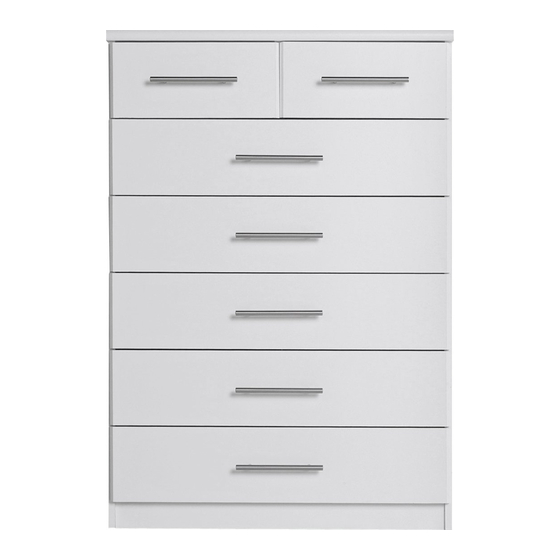

5+2 Drawer Chest
Dimensions
Width - 75cm
Depth - 40cm
Height - 107.5cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Please keep for future reference
246/5014
238/4872
245/7589
343/3904
346/6562
325/9731
MADE IN
BRITAIN
Issue 6 - 09/09/14
Advertisement
Table of Contents
Related Manuals for Argos Home Normandy 5+2 Drawer Chest of Drawers
Summary of Contents for Argos Home Normandy 5+2 Drawer Chest of Drawers
- Page 1 5+2 Drawer Chest Assembly Instructions - 246/5014 Please keep for future reference 238/4872 245/7589 343/3904 346/6562 325/9731 Dimensions Width - 75cm Depth - 40cm MADE IN Height - 107.5cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Issue 6 - 09/09/14...
- Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 37.5kgs. space to layout the parts before recommend the Please lift with care. starting.
- Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the panels listed below (D2363A) (750 x 396mm) Left Side Right Side Rail (D2364B) (D2365B) (D2370A) (1051 x 372mm)
- Page 4 Components - Fittings Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. Large locking Wooden dowel Metal dowel x 24 (F22) (F901)
- Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 08456 400800 quoting the reference numbers below Step 1 Step 1 Prepare the 2 small drawer fronts Screw 2 metal dowels into the holes shown on the back of the small drawer fronts Note: Tighten metal dowels up fully against...
- Page 6 Assembly Instructions Step 4 325mm Fit the small drawer base Slide the small drawer base down the grooves in the drawer sides then down into the groove in the small drawer front Step 5 Fit the small drawer back Fit the small drawer back between the drawer sides Make sure that the small...
- Page 7 Assembly Instructions Step 8 Prepare the 5 large drawer fronts Screw 2 metal dowels into the holes shown on the back of each large drawer front Step 9 Note: Due to the manufacturing process, the holes for the Prepare 5 sets of locking nut can be on either surface of the drawer sides.
- Page 8 Assembly Instructions Step 11 Fit the large drawer base Slide the large drawer base down the grooves in the drawer sides then down into the groove in the large drawer front Step 12 Fit the large drawer back Fit the large drawer back between the drawer sides Make sure that the large...
- Page 9 Assembly Instructions Step 15 Prepare the left side Place 6 runners the left side . Slide back the top of runner and use the 2nd hole Finished front edge from the front to fit the 1st screw Slide the runner back the other way and fit the 2nd screw into...
- Page 10 Assembly Instructions Step 16 Prepare the right side Place 6 runners the right side . Slide back the top of runner and use the 2nd hole from the front to fit the Finished front edge 1st screw Slide the runner back the other way and fit the 2nd screw into...
- Page 11 Assembly Instructions Step 17 Prepare the 3 rails Plain chipboard Insert 2 large locking surface nuts into each of the 3 rails Tap 2 wooden dowels into each of the 3 rails Step 18 Fit the 3 rails to the right side 2 people are needed here...
- Page 12 Assembly Instructions Step 19 Fit the left side Push the left side onto the 3 rails Use a screwdriver to tighten the 3 large locking nuts fitted to the rails Step 20 Prepare the top Screw 4 metal dowels into the top Fix the bracket 220mm 220mm in from the end...
- Page 13 Assembly Instructions Step 21 Note: Due to the manufacturing process, the 2 holes for the Prepare the divider large locking nut can be on either surface of the divider. Tap a wooden dowel into the divider Finished Insert 2 large locking front edge nuts into the divider...
- Page 14 Assembly Instructions Step 22 Reminder: The 2 large Fit the divider to the locking nuts may be on either surface of the divider Push the divider onto the top Use a screwdriver to tighten the 2 large Finished locking nuts fitted to front edge the divider...
- Page 15 Assembly Instructions Step 24 The measurement from top corner X to bottom corner X must be equal to the measurement from top corner Y to bottom corner Y Fit the back Square up the unit by making sure that measurement x to x equals y to y.
- Page 16 Assembly Instructions Step 26 Fit the drawers Starting with the bottom drawer, slide both the runners forward and 2nd threaded locate the drawer hole sides between them, lining up the holes in the drawer wrap with the 2nd 'threaded' holes in the runners Working from the inside of the drawer, insert 2...
