- Page 1 Culligan ® ™ Aquasential Tankless RO Owners Guide 01037575_RevA DCO 190496 11/19 ©2019 Culligan International Company...
- Page 2 United States and other countries. Culligan reserves the right to change the specifications referred to in this literature at any time, without prior notice. Culligan and Aquasential™ are trademarks of Culligan International Company or its affiliates.
-
Page 3: Table Of Contents
Contents About This Manual ............................Thank You..............................Specifications .............................. Introduction ..............................Things to Check Before You Call for Service..................... Performance Data Sheet ........................... Records and Data............................Culligan Limited Warranty ......................... 01037575 A 11/19... -
Page 4: About This Manual
Gives specifications and troubleshooting information Read this Manual First Before you operate the Culligan Aquasential™ Tankless RO, read this manual to become familiar with the device and its capabilities. Installation or maintenance done on this system by an untrained service person can cause major damage to equipment or property damage. -
Page 5: Thank You
Thank you for choosing a Culligan Aquasential™ Tankless Reverse Osmosis (RO) drinking water system. Your new system is designed to bring you years of deliciously crystal-clear Culligan water. The best part is it comes right from the tap. No more lugging around bottles or waiting for pitchers to slowly fill up. -
Page 6: Specifications
41° - 100° F Outlet Flow Rate* 0.42 gpm Rated Daily Production Rate 757.2 gpd Culligan Part Number 01037562 Recovery Rating 69.6% *Depending on local water quality and use environment, the actual filtered water flow rate and total filtered water volume will vary. -
Page 7: Introduction

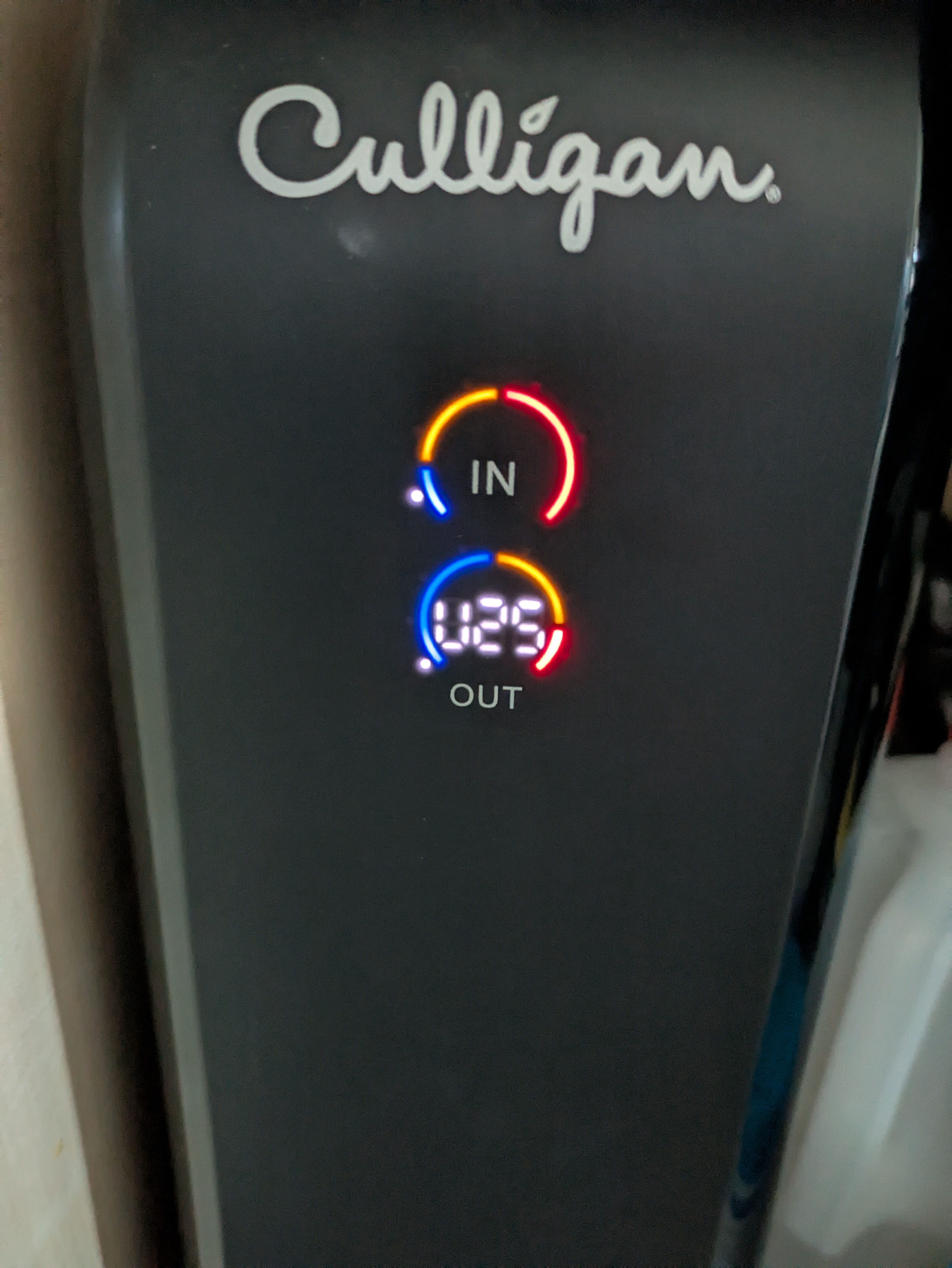

This owner’s guide provides visual assembly reference only. Since specialized skills are required in the assembly of the drinking water system, we recommend that you contact your local independently operated Culligan dealer to complete this installation. Factors Which Affect Performance Performance of the reverse osmosis membrane is affected by several factors which must be considered when judging the condition of the system. - Page 8 Lights and Indicators Front Cover Indicator Inlet water quality indicator Filtered water quality indicator Value display zone Malfunction indicator Figure 1. Front Cover Indicator Lights Table 1. Color Descriptions The inlet water quality indicators and corresponding filtered water quality points displays the quality of the water by the color of the lights on the front cover.
- Page 9 Faucet Indicator Filter cartridge Water quality life indicators indicator Figure 2. Filtered Water Indicator Water Quality Indicator The water drop-shaped water quality indicator shows the TDS value of the filtered water. The color of the indicator depends on the TDS value sent from the device. Table 4.
- Page 10 Completed Installation Drain water line (1/4" PE tubing / red) Outlet water line (1/4" PE tubing / white) Inlet water line (3/8" PE tubing) Cold To air gap and drain Faucet power / communication cord Power Figure 3. Complete Installation 01037575 A 11/19...
-
Page 11: Things To Check Before You Call For Service
It is recommended to have your local Culligan dealer perform the sanitization process. Your local Culligan man has been specifically trained to test the water quality and efficiency of the system in order to determine when the RO membrane should be replaced and ensure the system is working properly. - Page 12 Malfunction Troubleshooting Handling Check whether or not the water pressure meets the Inlet water pressure is low requirements for the operating pressure of the product. The booster pump runs The product is performing flush loudly The running sound will return to normal (power-up for the first time, long when the flush is finished.
-
Page 13: Performance Data Sheet
Performance Culligan knows the more informed you are about your water treatment systems, the more confident you will be about its performance. It’s because of this and more than seventy years of commitment to customer satisfaction Data Sheet that Culligan is providing this Performance Data Sheet to its customers. -
Page 14: Records And Data
Records Model: Serial No: and Data Date Installed: For Service Call Culligan at: Cartridge(s) Changed Date Feed Product Serviced Filter Membrane Carbon Block 01037575 A 11/19... -
Page 15: Culligan Limited Warranty
If a part described above is found defective within the specified period, you should notify your independently operated Culligan dealer and arrange a time during normal business hours for the dealer to inspect the water conditioner on your premises. Any part found defective within the terms of this warranty will be repaired or replaced by the dealer. - Page 16 Notes 01037575 A 11/19...
