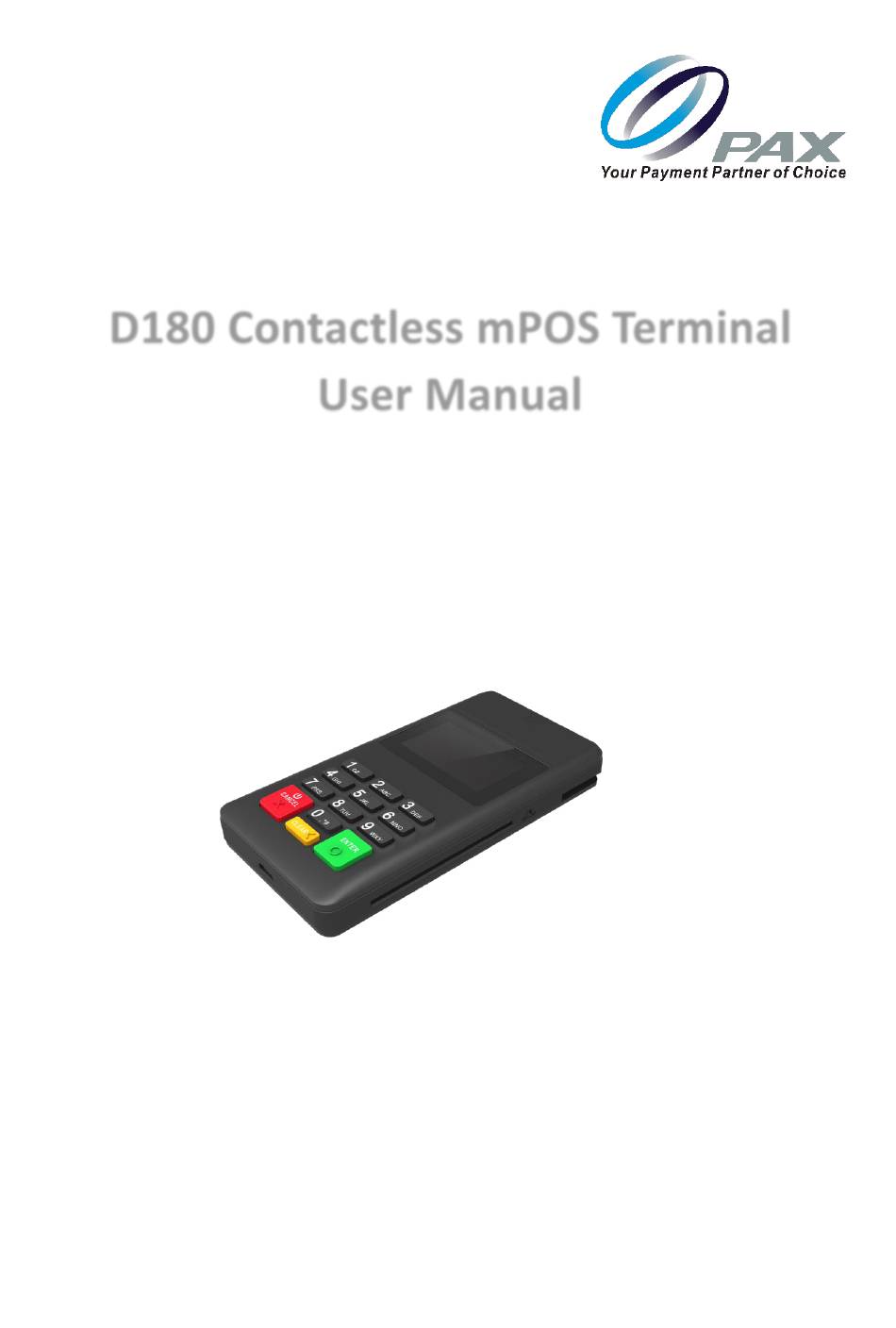

- Page 1 D180 Contactless mPOS Terminal User Manual PAX Computer Technology (Shenzhen) Co. Ltd.
- Page 2 Copyright © 2020 PAX Computer Technology (Shenzhen) Co., Ltd. all rights reserved. Reproduction or distribution of this document in part or in whole without the express permission of PAX Computer Technology (Shenzhen) Co., Ltd. is strictly prohibited. Although PAX Computer Technology (Shenzhen) Co., Ltd.
- Page 3 Revision History Author Date Version Note Zhaiyang 2020-8-26 Create the draft document...
-
Page 4: Table Of Contents
Table of Contents Introduction ............................. 4 Glossary ..........................4 Product Overview ..........................5 Product Contents ......................... 5 Product Introduction ......................5 Device Illustration ........................ 5 Environmental Conditions ....................7 Product Specifications ........................7 Hardware Specifications ...................... 7 Operational Outline ......................8 Connect mobile equipment through Bluetooth ................ -
Page 5: Introduction
1 Introduction 1.1 Glossary Table 1 Glossary of Terms Term Definition Secure Card Reader Electrostatic Discharge Ground Liquid Crystal Display Universal Serial Bus Random Access Memory Microcontroller Unit Central Processing Unit Universal Serial Bus Near Field Communication Electronic Cash Register technical standard for smart cards created by Europay, MasterCard, and Visa Personal Identification Number... -
Page 6: Product Overview
D180 Installation Manual USB A male to Micro USB male cable（Charging only） 2.2 Product Introduction D180 is a portable mPOS developed by PAX. Its functions mainly include: Support IC card, magnetic card, Contactless card Support Bluetooth®... -
Page 7: Table 2 Components, Interface, And Ports
Figure 2 Front view Figure 3 Back view Table 2 components, interface, and ports Charging LED indicator Magnetic stripe card reader Contactless card LED indicator Display Smart card reader Keyboard Nameplate Serial number MicroUSB... -
Page 8: Environmental Conditions
2.4 Environmental Conditions Operational temperature 0-50℃ Storage temperature -20℃～70℃ Relative humidity 10℅～93℅ ESD contact discharge ±4kV ESD air discharge ±8kV 3 Product Specifications 3.1 Hardware Specifications Table 3 Hardware Technical Specifications Module Specifications 32 bit ARM CPU memory CPU FLASH built-in 1MB flash + 128KB SRAM; External 4MB flash display 128×64 dot matrix LCD display, 1.8 inches, white backlight. -
Page 9: Operational Outline
Turn on Bluetooth of the mobile equipment and scan for D180. By default, the device name of D180 is PAX D180_XXXX, and XXXX are the last 4 letters of the Bluetooth MAC address of D180, please notice that the device name may be modified according to user requirement. -
Page 10: Device Installation And Operation
Do not place the D180 near heavy objects; impacts to the D180 may cause damage to the device. The D180 can be used while placed on a flat surface such as table or countertop in addition to while being held in hand. ... -
Page 11: Card Readers
4.3 Card Readers 4.3.1 Smart Card Reader Figure 5 Insert smart card When inserting smart card into its slot, the chip of smart card must be faced up. In order to avoid any physical damage to the card or the smart card slot of the terminal, it is recommended to insert the card gently. -
Page 12: Magnetic Strip Card Reader
D180 LCD screen anywhere from 0 to 4 cm above the surface of the screen (as indicated in Figure 6 contactless card reader). Card reader tips: Place the card as close to the screen as possible. Place the card parallel to the screen. -
Page 13: Display
4.6 Display D180 has a 128×64 dot matrix LCD display, 1.8 inches, white backlight. Located directly above it. 4.7 Functional Keys D180 has 13 buttons, numbers 0-9, ENTRA, CLEAR, CANCEL, no backlight. The power button and cancel button are multiplexed. -
Page 14: Product Services
5 Product Services 5.1 FAQ Startup Q: What should I do if the terminal does not start? A: Answer: First, check whether the battery is still charging. The terminal may not be able to start when the battery is exhausted. If you plug the device into a power adapter and the charging indicator does not light up, please check the power adapter to see if it is operating normally. - Page 15 Q: What should I do if the smart card reader is not working? A: First check to see if the smart card has been inserted fully and oriented properly, the proper use of the smart card reader is outlined in Figure 8 . Also check the metallic contacts on the smart card for signs or corrosion or other damage and attempt to use another card to determine whether the problem is a defective card.
- Page 16 Q: What should I do if there are errors while using the USB port? A: The USB cable of D180 can only charge but not communicate, so use a third-party USB cable. Do not use an USB hub, directly attach the cable to whatever device is being linked.
- Page 17 Other problems Q: What should I do if there appears to be damage to the tamper proof label? A: Damage to the tamper proof label may indicate damages to the device itself,. Immediately return the device to the supplier, the device safe to use only after it has been properly tested.
