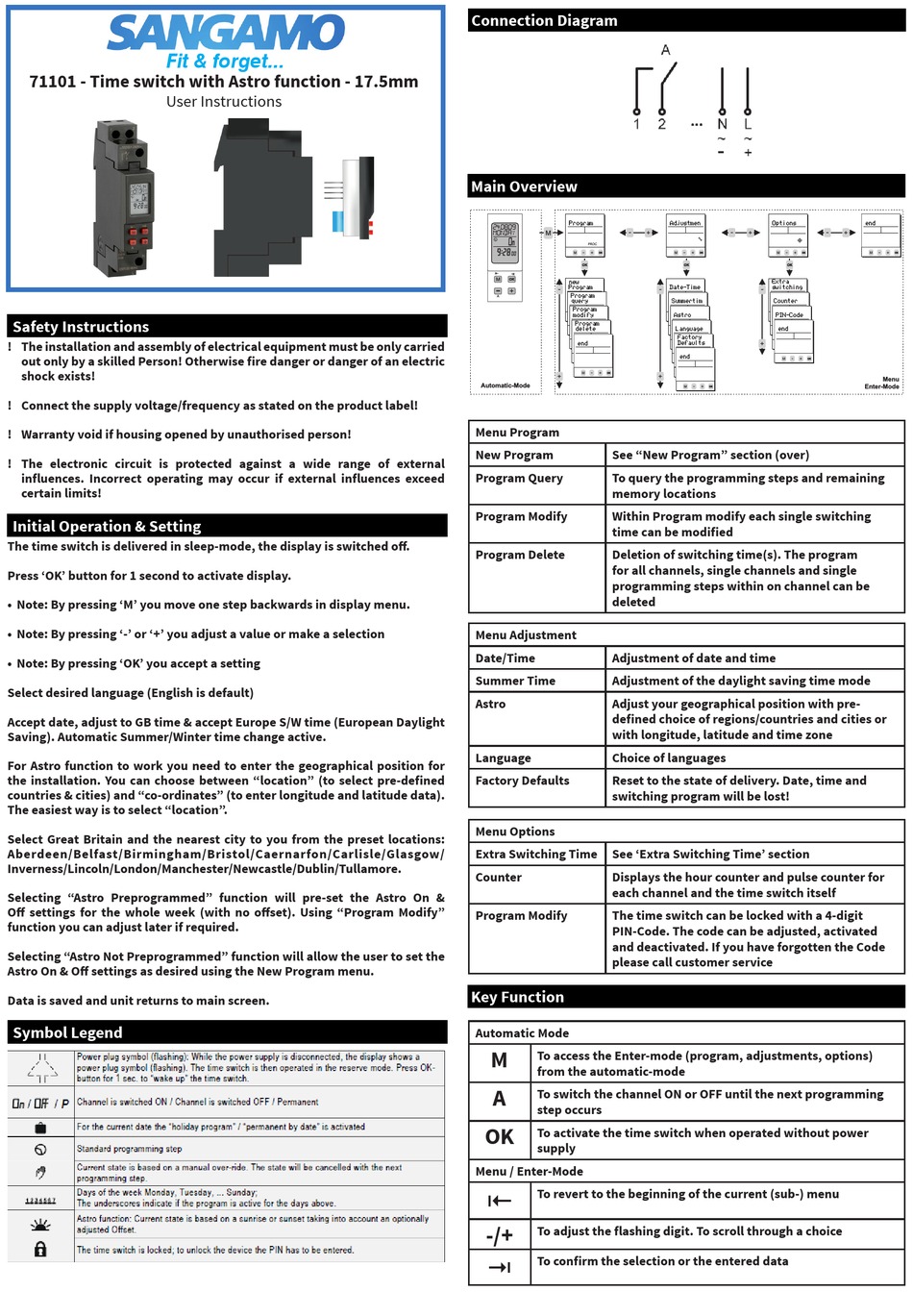

Sangamo 71101 User Instructions

Fit & forget...

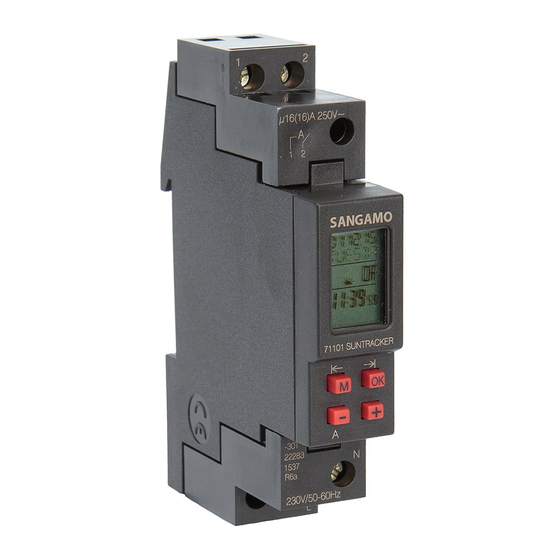

71101 - Time switch with Astro function - 17.5mm
User Instructions
Safety Instructions
! The installation and assembly of electrical equipment must be only carried
out only by a skilled Person! Otherwise fire danger or danger of an electric
shock exists!
! Connect the supply voltage/frequency as stated on the product label!
! Warranty void if housing opened by unauthorised person!
! The electronic circuit is protected against a wide range of external
influences. Incorrect operating may occur if external influences exceed
certain limits!
Initial Operation & Setting
The time switch is delivered in sleep-mode, the display is switched off.
Press 'OK' button for 1 second to activate display.
• Note: By pressing 'M' you move one step backwards in display menu.
• Note: By pressing '-' or '+' you adjust a value or make a selection
• Note: By pressing 'OK' you accept a setting
Select desired language (English is default)
Accept date, adjust to GB time & accept Europe S/W time (European Daylight
Saving). Automatic Summer/Winter time change active.
For Astro function to work you need to enter the geographical position for
the installation. You can choose between "location" (to select pre-defined
countries & cities) and "co-ordinates" (to enter longitude and latitude data).
The easiest way is to select "location".
Select Great Britain and the nearest city to you from the preset locations:
Aberdeen/Belfast/Birmingham/Bristol/Caernarfon/Carlisle/Glasgow/
Inverness/Lincoln/London/Manchester/Newcastle/Dublin/Tullamore.
Selecting "Astro Preprogrammed" function will pre-set the Astro On &
Off settings for the whole week (with no offset). Using "Program Modify"
function you can adjust later if required.
Selecting "Astro Not Preprogrammed" function will allow the user to set the
Astro On & Off settings as desired using the New Program menu.
Data is saved and unit returns to main screen.
Symbol Legend
Connection Diagram
Main Overview
Program
24. 0 8. 0 9
Monday
p
f
new
Program
Program
a
query
p
Program
modify
p
Program
delete
p
end
p
Automatic-Mode
Menu Program
New Program See "New Program" section (over)
Program Query To query the programming steps and remaining
memory locations
Program Modify Within Program modify each single switching
time can be modified
Program Delete Deletion of switching time(s). The program
for all channels, single channels and single
programming steps within on channel can be
deleted
Menu Adjustment
Date/Time Adjustment of date and time
Summer Time Adjustment of the daylight saving time mode
Astro Adjust your geographical position with pre-
defined choice of regions/countries and cities or
with longitude, latitude and time zone
Language Choice of languages
Factory Defaults Reset to the state of delivery. Date, time and
switching program will be lost!
Menu Options
Extra Switching Time See 'Extra Switching Time' section
Counter Displays the hour counter and pulse counter for
each channel and the time switch itself
Program Modify The time switch can be locked with a 4-digit
PIN-Code. The code can be adjusted, activated
and deactivated. If you have forgotten the Code
please call customer service
Key Function
Automatic Mode
M
To access the Enter-mode (program, adjustments, options)
from the automatic-mode
A
To switch the channel ON or OFF until the next programming
step occurs
OK
To activate the time switch when operated without power
supply
Menu / Enter-Mode
)
To revert to the beginning of the current (sub-) menu
-/+
To adjust the flashing digit. To scroll through a choice
*
To confirm the selection or the entered data
Adjustmen Options
E
O
Extra
Date-Time switching
Summertim Counter
E
O
Astro PIN-Code
E
O
Language end
E
O
Factory
Defaults
E
end
end
Menu
Enter-Mode
