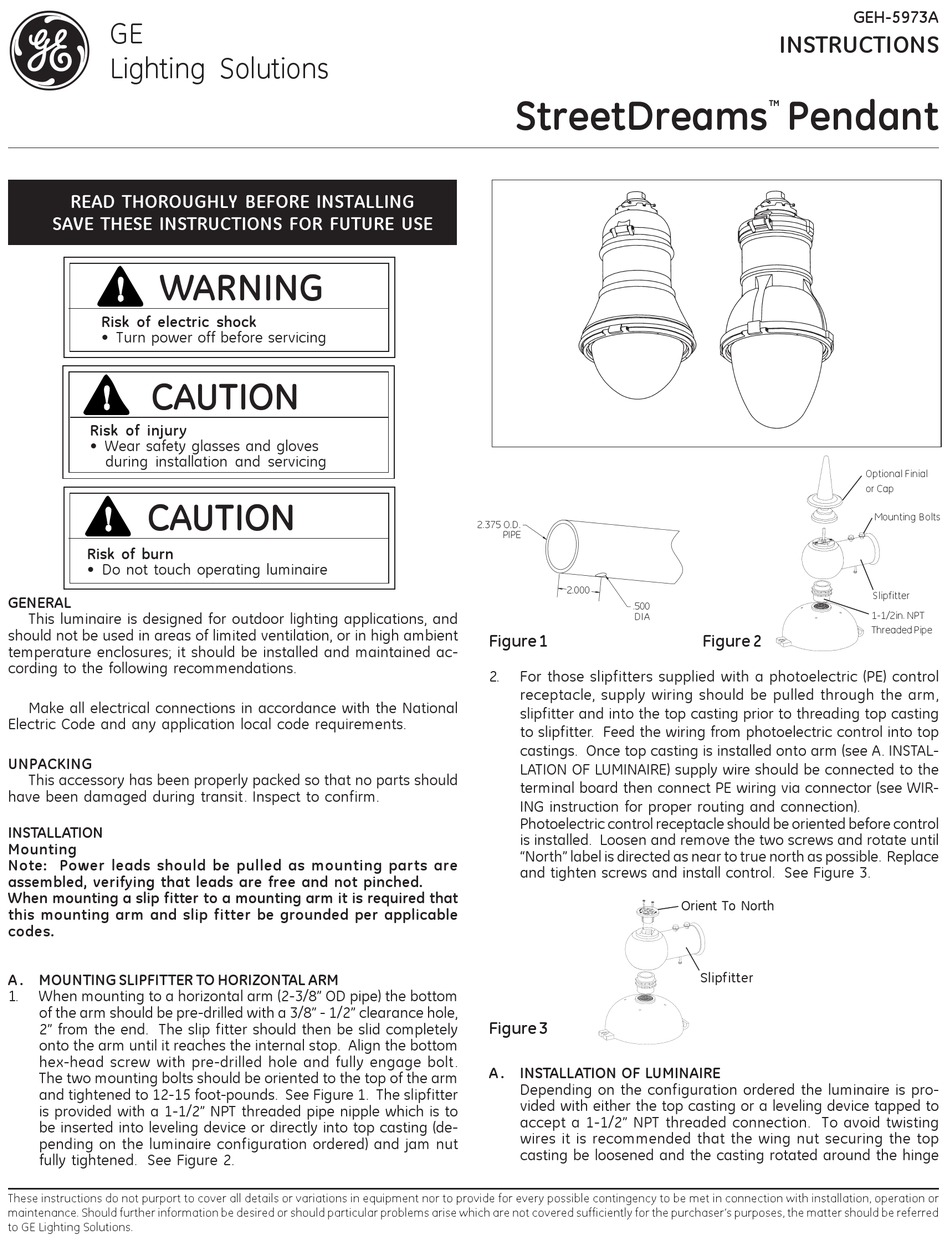

GE StreetDreams Pendant Instructions

g
GE
Lighting Solutions
READ THOROUGHLY BEFORE INSTALLING
SAVE THESE INSTRUCTIONS FOR FUTURE USE
WARNING
Risk of electric shock
• Turn power off before servicing
CAUTION
Risk of injury
• Wear safety glasses and gloves
during installation and servicing
CAUTION
Risk of burn
• Do not touch operating luminaire
GENERAL
This luminaire is designed for outdoor lighting applications, and
should not be used in areas of limited ventilation, or in high ambient
temperature enclosures; it should be installed and maintained ac-
cording to the following recommendations.
Make all electrical connections in accordance with the National
Electric Code and any application local code requirements.
UNPACKING
This accessory has been properly packed so that no parts should
have been damaged during transit. Inspect to confirm.
INSTALLATION
Mounting
Note: Power leads should be pulled as mounting parts are
assembled, verifying that leads are free and not pinched.
When mounting a slip fitter to a mounting arm it is required that
this mounting arm and slip fitter be grounded per applicable
codes.
A . MOUNTING SLIPFITTER TO HORIZONTAL ARM
1. When mounting to a horizontal arm (2-3/8" OD pipe) the bottom
of the arm should be pre-drilled with a 3/8" - 1/2" clearance hole,
2" from the end. The slip fitter should then be slid completely
onto the arm until it reaches the internal stop. Align the bottom
hex-head screw with pre-drilled hole and fully engage bolt.
The two mounting bolts should be oriented to the top of the arm
and tightened to 12-15 foot-pounds. See Figure 1. The slipfitter
is provided with a 1-1/2" NPT threaded pipe nipple which is to
be inserted into leveling device or directly into top casting (de-
pending on the luminaire configuration ordered) and jam nut
fully tightened. See Figure 2.
These instructions do not purport to cover all details or variations in equipment nor to provide for every possible contingency to be met in connection with installation, operation or
maintenance. Should further information be desired or should particular problems arise which are not covered sufficiently for the purchaser's purposes, the matter should be referred
to GE Lighting Solutions.
StreetDreams
2.375 O.D.
PIPE
2.000
.500
DIA
Figure 1
2. For those slipfitters supplied with a photoelectric (PE) control
receptacle, supply wiring should be pulled through the arm,
slipfitter and into the top casting prior to threading top casting
to slipfitter. Feed the wiring from photoelectric control into top
castings. Once top casting is installed onto arm (see A. INSTAL-
LATION OF LUMINAIRE) supply wire should be connected to the
terminal board then connect PE wiring via connector (see WIR-
ING instruction for proper routing and connection).
Photoelectric control receptacle should be oriented before control
is installed. Loosen and remove the two screws and rotate until
"North" label is directed as near to true north as possible. Replace
and tighten screws and install control. See Figure 3.
Figure 3
A . INSTALLATION OF LUMINAIRE
Depending on the configuration ordered the luminaire is pro-
vided with either the top casting or a leveling device tapped to
accept a 1-1/2" NPT threaded connection. To avoid twisting
wires it is recommended that the wing nut securing the top
casting be loosened and the casting rotated around the hinge
GEH-5973A
INSTRUCTIONS
Pendant
™
Figure 2
Orient To North
Slipfitter
Optional Finial
or Cap
Mounting Bolts
Slipfitter
1-1/2in. NPT
Threaded Pipe
