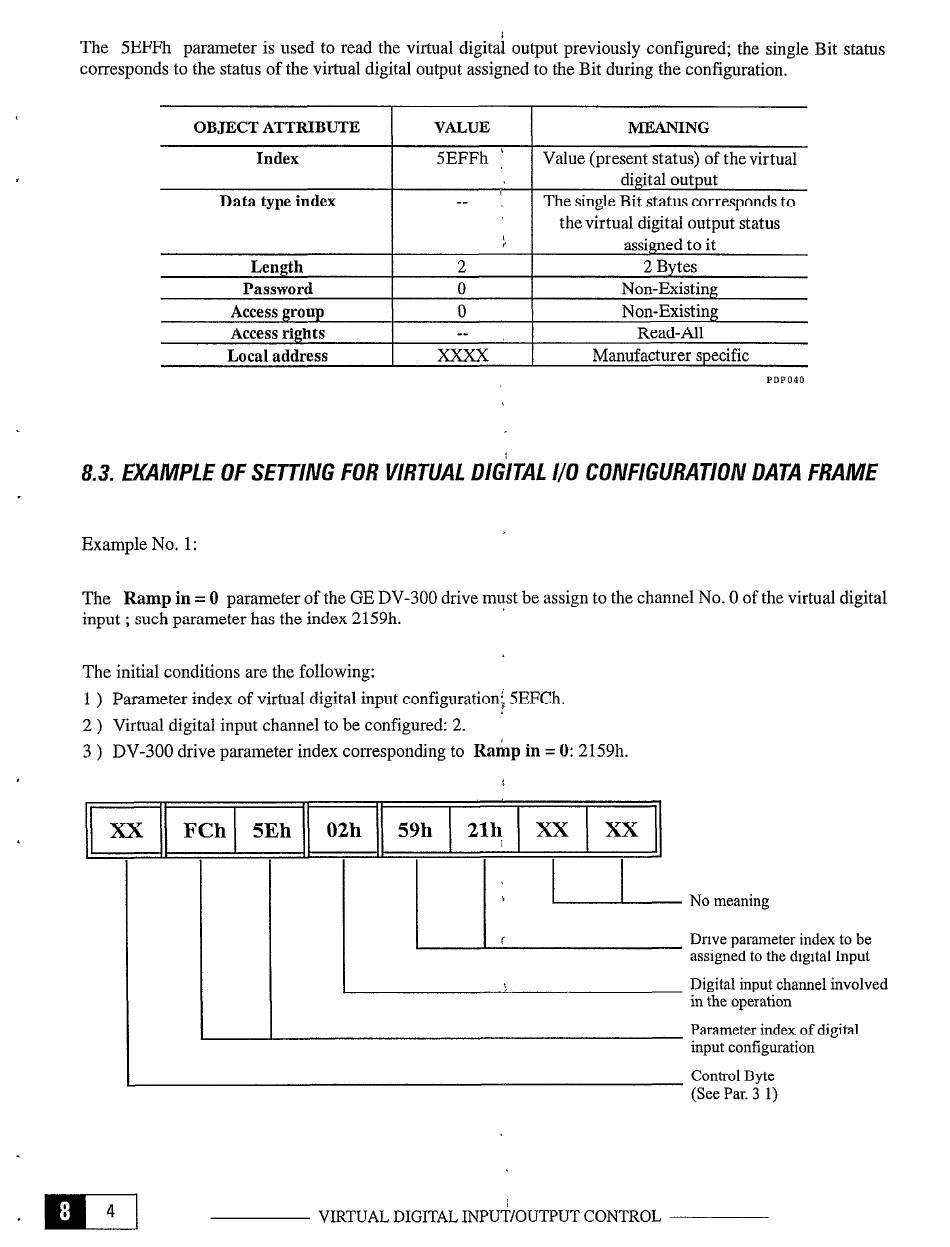

The SEFFh parameter is used to read the virtual digital output previously configured; the single Bit status
corresponds to the status of the virtual digital output assigned to the Bit during the configuration.
POP040
8.3. EXAMPLE OF SETUNG FOR VIRTUAL DIGITAL l/O CONFIGURATION DATA FRAME
Example No. 1:
The Ramp in = 0 parameter of the GE DV-300 drive must be assign to the channel No. 0 of the virtual digital
input ; such parameter has the index 2159h.
The initial conditions are the following:
1 ) Parameter index of virtual digital input configuration; SEFCh.
2 ) Virtual digital input channel to be configured: 2.
3 ) DV-300 drive parameter index corresponding to Rarhp in = 0: 215921.
PCh 5Eh 02h 59h 21$ xx xx
: '
I I I
I I
1 I No meaning
I
Drive parameter index to be
assigned to the digital Input
Digital input channel involved
in the operation
Parameter index of digital
input configuration
Control Byte
(See Par. 3 1)
VIRTUAL DIGITAL INPU+/OUTPUT CONTROL
