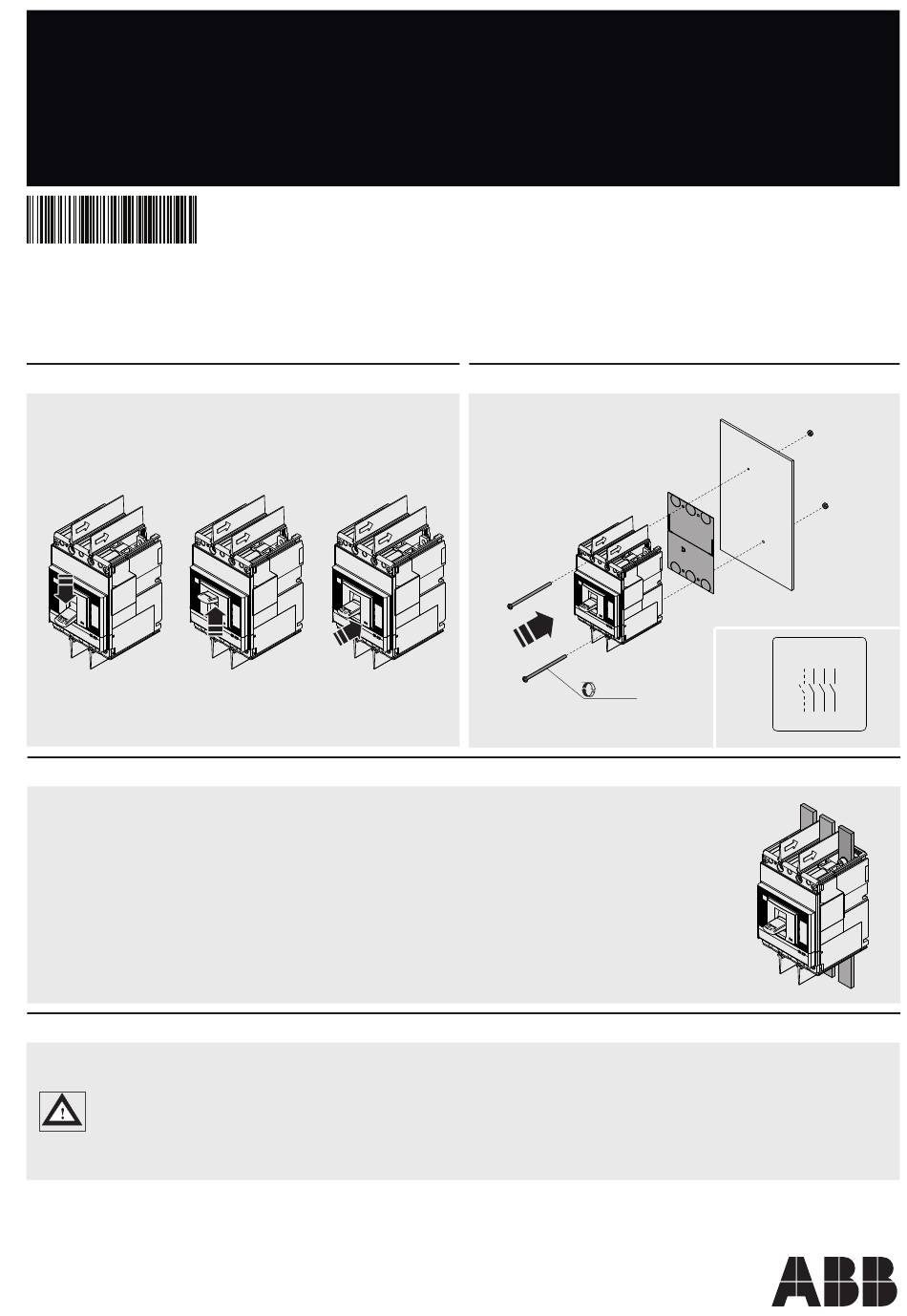

Doc. N.° 1SDH000721R0001 - ECN000096326 - Rev. B
SACE Tmax XT
1SDH000721R0001
Istruzioni di installazione XT2
Installation instructions XT2
Installationsanleitung XT2
Instructions pour l'installation XT2
Instrucciones de instalación XT2
安装说明书 XT2
1
OFF
3
Usare cavi o barre isolate/ o eseguire prove di tipo specifiche sull' installazione.
Use cable or insulated busbars/ or perform specific type test on the installation.
Kabel oder isolierte Sammelschienen verwenden / oder die spezifische Typprüfung
auf derInstallation durchführen.
Utiliser un câble ou des barres isolées/ ou réaliser un test de type spécifique sur installation.
Utilizar un cable o barras aisladas / o efectuaruna prueba de tipo específico sobre instalacíon.
使⽤电缆或经绝缘处理的母排，否则需对安装进⾏指定的型式试验
4
ATTENZIONE! Istruzioni relative alla Trip unit Ekip Touch sono reperibili con il documento 1SDH002031A1001.
WARNING! Istructions on Ekip Touch Trip unit are available with document 1SDH002031A1002.
ACHTUNG! Anweisungen zu Trip unit Ekip Touch finden Sie mit dem Dokument 1SDH002031A1003.
ATTENTION! Istructions concernant Trip unit Ekip Touch peuvent être trouvées avec le document 1SDH002031A1004.
ATENCIÓN! Instrucciones sobre Trip unit Ekip Touch se encuentran con el documento 1SDH002031A1005.
警告！Ekip Touch脱扣器有可用的说明文件
* fold this paper with barcode on the outer side
XT2/III-IV
CLACK
ON
TRIPPED
1SDH002031A1002.
2
1,1 Nm
XT2/III-IV
UE>480V
LINE
LOAD
XT2/III-IV
XT2/III-IV
