APsmart RSD-S-PLC Installation & User Manual
Hide thumbs
Also See for RSD-S-PLC:
- Installation & user manual (19 pages) ,
- Installation and user manual (19 pages) ,
- Quick installation manual (2 pages)
Table of Contents
Related Manuals for APsmart RSD-S-PLC
Summary of Contents for APsmart RSD-S-PLC
- Page 1 Installation / User Manual APsmart rapid shutdown system Rev1.0 2019/09/11 RSD-S-PLC TRANSMITTER-PLC/TRANSMITTER-PLC-PCBA/ TRANSMITTER-PLC-OUTDOOR KIT © All Rights Reserved ALTENERGY POWER SYSTEM Inc. www.APsystems.com...
-
Page 2: Table Of Contents
Step 2: According to the component arrangement, connect the output port of the RSD-S-PLC and connect the input port to the junction box--------------------8 Step 3: Connect the RSD-S-PLC serially connected output to the inverter with a self-made DC extension cable------------------------------------------------------8 TRANSMITTER-PLC INSTALLATION ----------------------------------------------------------9 TECHNICAL DATA—RSD-S-PLC---------------------------------------------------------------12... -
Page 3: Important Safety Instructions
APsystems microinverter system and the solar array. · Be aware that the body of the running RSD-S-PLC is the heat sink and can reach high temperatures. To reduce risk of burns, do not touch the body of the RSD-S-PLC. -
Page 4: Rsd Products
PV modules · Meets SunSpec requirements RSD-S-PLC meets SunSpec demands: to maintain proper functioning by continually receiving heartbeat frame from Transmitter-PLC. In the meanwhile, users could stop the Transmitter-PLC by AC switching out in case of emerency to realize the module-level rapid shutdown. -
Page 5: Transmitter Products

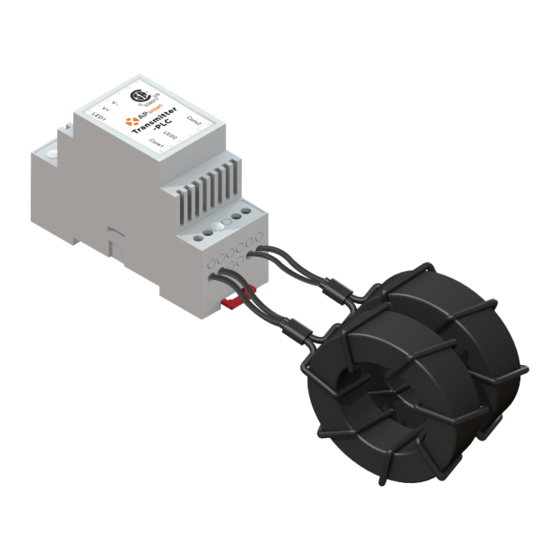

TRANSMITTER PRODUCTS Transmitter-PLC： · Meets NEC 2017 (690.12) requirements · Switch o RSS Transmitter, rapid shutdown the output of PV modules · Meets SunSpec requirements · Equipped with single/dual core · Optional 120/240VAC power supply · Optional 480/277VAC power supply Transmitter-PLC-Outdoor Kit：... -
Page 6: System Wiring Diagram
The APsmart Rapid Shutdown System (RSS) Transmitter-PLC is part of a rapid shutdown solution when paired with APsystems RSD-S-PLC, a PV module rapid shutdown unit. While powered on, the RSS Transmitter sends a signal to the RSD-S-PLC units to keep their PV modules connected and supplying energy. - Page 7 ① RSD-S-PLC ② Transmitter-PLC-Outdoor Kit ③ Inverter ① RSD-S-PLC ② Inverter with Transmitter-PLC-PCBA...
-
Page 8: Rsd-S-Plc Installation
② Be aware that only qualified professionals should install and/or replace the RSD-S-PLC. ③ Before installing or using an RSD-S-PLC, please read all instructions and warnings in the technical documents and on the inverter system itself as well as on the PV array. -
Page 9: Step 1: Install The Rsd-S-Plc
Step 1: Install the RSD-S-PLC. DC input - DC input + DC output - DC output + Mounting brackets Buckle RSD-S-PLC on the PV module frame. A. Front buckle B. Back buckle Note: Both installations can be installed anywhere on the PV module frame. -
Page 10: Rsd-S-Plc And Connect The Input Port To The Junction Box
Step 2: According to the component arrangement, connect the output port of the RSD-S-PLC and connect the input port to the junction box. Input- Input + Input- Input + Output- Output + Output- Output + Step 3: Connect the RSD-S-PLC serially connected output to the inverter with a self-made DC extension cable. -
Page 11: Transmitter-Plc Installation
Transmitter power supply must be on same AC branch circuit as inverter to meet rapid shutdown requirements Note: Install RSD-S-PLC before powering on Transmitter. • Mount Transmitter-PLC and power supply on DIN rail • Connect DC leads from power supply to transmitter-PLC •... - Page 12 Homerun Only (+) or (-) through Core Note: Install RSD-S-PLC before powering on Transmitter. • Pass either positive or negative homerun through Cores (Max 10 strings per core) • Connect wires to AC side of Power supply Max number of strings per Core: 10...
- Page 13 Drilling Guide for .75" Conduit 2×∅28 3×∅28 Drilling Guide for 1" Conduit 2×∅35 3×∅35...
-
Page 14: Technical Data-Rsd-S-Plc
TECHNICAL DATA—RSD-S-PLC Model RSD-S-PLC Input Data (DC) Input operating Voltage Range 8-80V Maximum Cont. Input Current (Imax) Maximum Input Power 800W Output Data (DC) Output operating Voltage Range 8-80V Output Power Range 0-800W Maximum System Voltage 1000V/1500V Mechanical Data Operating Ambient Temperature Range -40 °C to + 85 °C (-40 oF to +185 oF ) -
Page 15: Technical Data-Transmitter-Plc
TECHNICAL DATA—TRANSMITTER-PLC Model Transmitter-PLC Main electrical data Input Voltage 12 VDC Input Current Communication Power Supply Residential（optional） 85-264VAC Input, 12VDC Output, 90mm x 17.5mmx58.4 mm Commercial（optional） 200-500VAC Input, 12VDC Output, 125.2mm x 40mmx113.5mm Core data Max. Current 300A（150AX2） Max. System Voltage 1500VDC Internal Opening For Wires 29mm... -
Page 16: Technical Data-Transmitter-Plc-Outdoor Kit
TECHNICAL DATA— TRANSMITTER-PLC-OUTDOOR KIT Model Transmitter-PLC-Outdoor Kit Main electrical data Input Voltage 12 VDC Input Current Communication Power Supply Residential（optional） 85-264VAC Input, 12VDC Output, 90mm x 17.5mmx58.4 mm Commercial（optional） 200-500VAC Input, 12VDC Output, 125.2mm x 40mmx113.5mm Core data Max. Current 300A（150AX2）... -
Page 17: Technical Data-Transmitter-Plc-Pcba
TECHNICAL DATA—TRANSMITTER-PLC-PCBA Model Transmitter-PLC-PCBA Main electrical data Input Voltage 12 VDC Input Current Communication Power Supply Residential（optional） 85-264VAC Input, 12VDC Output, 90mm x 17.5mmx58.4 mm Commercial（optional） 200-500VAC Input, 12VDC Output, 125.2mm x 40mmx113.5mm Core data Max. Current 300A（150AX2） Max. System Voltage 1500VDC Internal Opening For Wires 29mm... -
Page 18: Ordering Information
409001 Single Core Transmitter-PLC-PCBA (no power supply) 902000 120/240VAC Power Supply 903000 480/277VAC Power Supply RSD-S-PLC 405001 1000V UL/TUV, 1.2m cable, MC4 compatible, Mounting brackets 405002 1000V UL/TUV, 1.2m cable, MC4, Mounting brackets 405003 1500V UL/TUV, 1.2m cable, MC4-Evo2, Mounting brackets APsystems Jiaxing China No.
