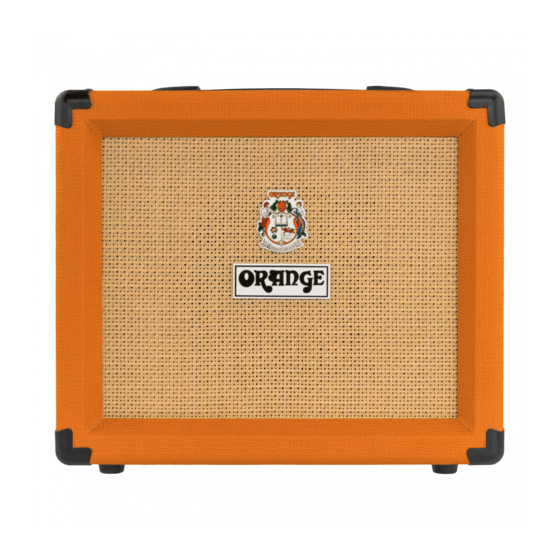

ORANGE CRUSH 20RT Manual
  1. Manuals
  2. Brands
  3. ORANGE Manuals
  4. Musical Instrument Amplifier
  5. CRUSH 20RT
  6. Manual

ORANGE CRUSH 20RT Manual

Hide thumbs Also See for CRUSH 20RT:
Table of Contents

Advertisement

Quick Links

Manual V1.0
CRUSH 20RT MANUAL
INTRODUCTION
THANK YOU FOR CHOOSING ORANGE
has been a pioneering force in the guitar amplification industry. Today, with a team of the world's finest amplifier
Ever since the founding of the company in 1968,
Orange
engineers, Orange continues to push back the boundaries of conventional amplifier design.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CRUSH 20RT and is the answer not in the manual?

Questions and answers

Related Manuals for ORANGE CRUSH 20RT

Summary of Contents for ORANGE CRUSH 20RT

  • Page 1 Today, with a team of the world’s finest amplifier Ever since the founding of the company in 1968, Orange engineers, Orange continues to push back the boundaries of conventional amplifier design.

  • Page 2: Important Safety Information

    Our commitment to craftsmanship and quality control has allowed our amplifiers to stand the test of time, giving their owners as much pleasure now, as the day they were bought. To maintain this level of excellence, each Orange amplifier is put through many rigorous test procedures before leaving the factory.
  • Page 3 This Orange product fulfils the requirements of IEC 60065:2001 (Seventh Edition) + A1:2005 + A2:2010 for Audio, Video and Similar Electronic Apparatus. This product complies with the WEEE Directive (2002/96/EC) marking requirement. This affixed product label indicates that you must not discard this electrical/electronic product in domestic household waste.

  • Page 4: Before Using Your Amplifier

    IMPORTANT! The voltage selector switch and mains fuse is set at the factory for the country or region in which this Orange product is intended to be sold. To prevent serious damage to the product, ensure that the rated AC mains voltage indicated on the product's rear panel agrees with the mains voltage from your AC mains inlet before connecting the IEC power cable.

  • Page 5: Panel Features

    PANEL FEATURES...
  • Page 6 Volume Dirty/Clean Adjusts the output level for each channel. Higher settings on the Clean channel will produce natural overdrive and breakup. Note: with the Dirtychannel Gain set to zero, no sound will be heard on theDirty channel. Treble Adjusts the high-end response. Increasing the Treble produces brighter tones.
  • Page 7 Middle control for a ‘fatter’ tone, especially with thin sounding pickups. Reduce the Adjusts the mid-range response. Increase theMiddle Middle control with higher Gain settings for a ‘scooped’ modern tone. Bass Adjusts the low-end response. Increasing the Bass produces deeper tones.
  • Page 8 Gain Dirty Channel Experiment with the Gaincontrol for a wide range of ‘crunch’ and heavily distorted tones. Higher settings add more distortion and saturation. Balance with theDirty Volume control to achieve the desired output level. Power The power light will illuminate when the Powerswitch (rear) is set to ON.
  • Page 9 Phones Connect headphones via a stereo 1/4″ jack for silent practice. The Phones output features Cabinet Simulation and can also be used to connect the amp to a mixer or recording console. Avoid using headphones for extended periods at loud levels. Aux In Connect MP3 players etc.
  • Page 10 Clean/Dirty Selector Switch Selects between the Clean andDirty channels. This can be switched remotely via a footswitch (see rear panel) Input Connect your instrument to theInput jack via a quality shielded instrument cable.
  • Page 11 Reverb Adjusts the reverb level for both channels. Higher settings add longer trails for a spatial effect. Tuner Depress the ON/OFF button to engage the integrated chromatic Tuner. Set the Volume to zero for silent tuning if required. The appropriate red LED will illuminate on the display to indicate the note being played. If the green LED also illuminates, this indicates a chromatic note, e.g.
  • Page 13 Connect a latching footswitch (e.g. FS-1) to remotely switch between Clean Dirty channels. The front panel channel switch is disengaged when using a footswitch. An Orange FS-1 LED will illuminate when the Clean channel is selected. AC Mains Input ‘Before Using Your Amplifier‘.

  • Page 14: Free Extended Warranty Offer

    Valves and speakers supplied with an Orange amplifier or purchased separately at our online store are covered for 90 days from the date of purchase. The warranty status of any Orange product is subject to its being used for its intended purpose in suitable conditions. As the manufacturer we reserve the right to refuse to warranty any Orange product which has been misused in any way whatsoever.

  • Page 15: Related Accessories

    RELATED ACCESSORIES These items are compatible with your Orange product. For customers in the USA please click here.
