Vixen Horns La Cucaracha VXH6803R Installation Manual

BEFORE BEGINNING YOUR INSTALLATION

Read through the instruction guide before getting started with the installation. Professional installation is recommended for
this product.

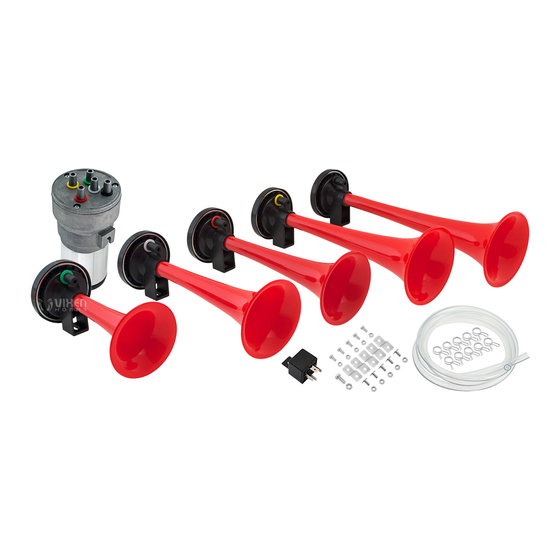

CONTENTS

 5-Trumpet "La Cucaracha" Musical Air Horn (Red)
 12V Heavy Duty Air Compressor
 4-PIN 12V/30A Relay
 3/8" OD Air line
 Mounting Hardware
The specific voltage requirement for this horn kit is 12 volt DC, therefore installation must be done to a DC power
source of 12 volts.

SAFETY INSTRUCTIONS

 Make sure you never attempt to disassemble this horn kit's electrical components.
 Never use your bare hands to any part of the compressor immediately after or during use.
 Avoid operating this product in an area with risk of falling or submergence into a liquid (water).
 Do not reach out for or touch any component that has fallen or been submerged into water.
 Make sure you set up in areas with good ventilation.
 Never sound the air horn anywhere near your ear(s) or that of another person.
 Make sure your battery ground is detached before getting your installation started.

Employ equipment for eye protection during drilling operations.

HORN MOUNTING

 Identify a suitable area for mounting, preferably an unobstructed sheet-metal surface like the frame or body of
the vehicle so as to provide a firm platform which will help protect the horn from damage due to excessive
shaking. Do not attach the horn to any plastic or other flexible material.
 Indicate the positions before drilling a hole of 1/4-inches in diameter for each trumpet. With the provided
hardware for mounting, firmly tighten them to the vehicle.

IMPORTANT: The downward orientation of the trumpets is to prevent the trumpets from collecting any water.
PAGE 1 of 2
VXH6803R
INSTALLATION GUIDE
