- Page 1 User Guide v2.1 | December, 2019 Software Release Package v3.0 All content © 2019, cmotion GmbH. All specifications are subject to change without further notice. page 1 of 30 http://www.cmotion.eu...
- Page 2 This USER GUIDE applies to the following product: K2.0015992 cPRO camin with Software Release Package v3.0 Document revision history: v2.1 Release Date: 02.12.2019 All content © 2019, cmotion GmbH. All specifications are subject to change without further notice. page 2 of 30 http://www.cmotion.eu...
- Page 3 No license, express, implied or otherwise, is granted under any patents, copyrights or other intellectual property right of cmotion or others.
-
Page 4: Table Of Contents
6.5.2. to use as a range extender ................19 7. Compatibility ......................20 8. Software update ......................20 9. Power disconnection ....................20 All content © 2019, cmotion GmbH. All specifications are subject to change without further notice. page 4 of 30 http://www.cmotion.eu... - Page 5 10.5. Part numbers..................... 24 10.6. Cleaning and maintenance ................27 10.7. Service contacts ....................28 10.8. International declarations .................. 29 All content © 2019, cmotion GmbH. All specifications are subject to change without further notice. page 5 of 30 http://www.cmotion.eu...
-
Page 6: For Your Safety
NOTICE explains practices not related to physical injury. No safety alert symbol appears with this signal word. Note: Provides additional information to clarify or simplify a procedure. All content © 2019, cmotion GmbH. All specifications are subject to change without further notice. page 6 of 30 http://www.cmotion.eu... - Page 7 For operation, always use a power source as indicated in the instructions. Always unplug the cable by gripping the plug, not the cable. Never try to repair. All repair work should be done by a qualified cmotion Service Center. Never remove or deactivate any safety equipment (incl. warning stickers or paintmarked screws).
-
Page 8: Audience And Intended Use
Original packaging Warranty: For scope of warranty, please ask your local cmotion Service Partner. cmotion is not liable for consequences from inadequate shipment, improper use, or third-party products. All content © 2019, cmotion GmbH. All specifications are subject to change without further notice. -
Page 9: Introduction

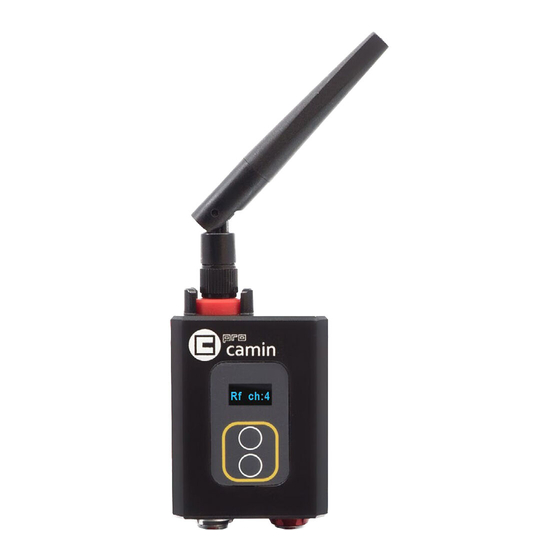

The cPRO camin provides full lens data and can pair with up to two cPRO or cPRO ONE hand units for split focus, iris or zoom control. The unique command mode allows you to use a cPRO camin with non-wireless controls and integrate them into a wireless network. -
Page 10: Cam Interface
Mounting rail (on back side) Display 5.1. Control panel The cPRO camin features a user interface to configure the system. The display shows menu and status information. All content © 2019, cmotion GmbH. All specifications are subject to change without further notice. -
Page 11: Soft Buttons
5.2.2. Command mode This unique feature allows you to use any cPRO camin as a master or client, at the push of a button to create a wireless solution for any LBUS controller. Simply connect your non-wireless LBUS device; i.e. pan-bar zoom, steady zoom, Master Grip or OCU-1 to the cPRO camin, connect it to a power source and set the camin to “client”. -
Page 12: Region Settings
In order to switch between master and client, simply press and hold the upper button on the cPRO camin for 3 seconds. Then, select master or client with the up/down buttons and wait for 5 seconds to enable the function. -
Page 13: System Info
Selected channel used by another device Green/red flashing No device connected, wireless or hardwired Solid red Camin initializing / hardware fault Red flashing Update All content © 2019, cmotion GmbH. All specifications are subject to change without further notice. page 13 of 30 http://www.cmotion.eu... -
Page 14: Cpro Camin Preparation
1. Choose the 1/4-20 UNC or 3/4-16 UNC mounting insert, depending on the mounting options on your camera. 2. Match the registraion marks of the insert and the cPRO camin bracket and snap in the insert accordingly. The insert can be fixed in two different orientations, depending on the best suitable mounting option on your camera. -
Page 15: Alternative Mounting Options
5. Close the clamp console by turning the thumbscrew clockwise. NOTICE Mounting options to 19 mm and 15 mm rods are not included in the cPRO camin basic set. For this K2.0006176 cforce mini clamp console 19/15mm (including: K2.0006175 cforce mini clamp insert 19/15mm) is required and needs to be ordered seperately. -
Page 16: Mounting To Panavision Rods
6. Close the clamp console by turning the thumbscrew clockwise. NOTICE A mounting option to Panavision rods is not included in the cPRO camin basic set. For this K2.0006176 cforce mini clamp console 19/15mm and K2.72115.0 CLM-4 Clamp Insert 5/8” is required and needs to be ordered seperately. -
Page 17: Setting Up The Cpro Camin
6.4. Connecting to the cPRO hand unit 1. Set the cPRO hand unit to the same radio channel as the cPRO camin (please refer to the cPRO hand unit user manual). Once both units are set to the same radio channel, the two devices will connect automatically. -
Page 18: Setting Up The Cpro Camin´s Command Mode
5 seconds to enable the function. 4. Set the cPRO camin (client) to the same radio channel as the cPRO camin / cPRO motor (master) on the camera side. Once both units are set to the same radio channel, the two devices will connect automatically. -
Page 19: To Use As A Range Extender
2. Supply power to the daisy chain through the cPRO camin´s CAM or LBUS connector. 3. Set one cPRO camin to “master”, the other one to “client”. In order to switch between master and client, simply press and hold the upper button on the cPRO camin for 3 seconds. -
Page 20: Compatibility
CAM interface cables. 8. Software update The cPRO camin can be updated from the cPRO hand unit via USB through its LBUS interface. To keep your cPRO camin up-to-date, you may need to update its firmware. Please check cmotion`s website for the latest firmware packages. -
Page 21: Appendix
10.5 - 34 V Radio system: The cPRO camin contains a radio unit that enables wireless lens control with a red coded radio module. A red ring at the base of the antenna mount identifies it. It offers 14 channels... -
Page 22: Dimensions And Weight
10.3. Dimensions and weight Dimensions: Weight: Weight of cPRO camin: 77 g (< 3oz) including antenn All content © 2019, cmotion GmbH. All specifications are subject to change without further notice. page 22 of 30 http://www.cmotion.eu... -
Page 23: Pinouts
2 CAM lf2 (CAN1-L) 3 GND 4 +V-Bat 5 CAM lf3 (CAN RS232 TX) 6 CAM lf4 (CAN1-H) 7 Cable ID All content © 2019, cmotion GmbH. All specifications are subject to change without further notice. page 23 of 30 http://www.cmotion.eu... -
Page 24: Part Numbers
K2.0001996 swivel antenna for SMC-1, EMC-1, AMC-1, cPRO hand unit / motor / camin NOTICE The cPRO camin basic set does not include LBUS or CAM cables. LBUS cables are available in various lengths and need to be ordered separately. Part numbers - antennas Radiall/Larsen K2.0002007 Dipole / Reverse SMA... - Page 25 Cable CAM (7p) - Sony Hi (4p) / D-Tap Connects cPRO motor and camin to Sony F5/F55/Venice cameras and D-Tap power source. Provides camera RUN/STOP function and tally. All content © 2019, cmotion GmbH. All specifications are subject to change without further notice. page 25 of 30 http://www.cmotion.eu...
- Page 26 Connects cPRO motor and camin CAM connector to D-Tap power source. K2.0006758 Cable LPS-7 Connects cPRO motor and camin LBUS connector to D-Tap power source. All content © 2019, cmotion GmbH. All specifications are subject to change without further notice. page 26 of 30 http://www.cmotion.eu...
-
Page 27: Cleaning And Maintenance
10.6. Cleaning and maintenance The cPRO camin is a precision instrument. Do not drop it or subject it to physical shock. The cPRO camin is not waterproof and cannot be used underwater. If you accidentally drop a cPRO camin into water, consult your nearest service center. Wipe off any water droplets with a dry cloth and do not attempt to turn the camin on. -
Page 28: Service Contacts
Unit 4C, 4th Floor, Goldline Business Centre, New Malad Link Rd, Malad (W), 400064, Mumbai / India support@cineom.com Service Hotline: +91 22 42109000 All content © 2019, cmotion GmbH. All specifications are subject to change without further notice. page 28 of 30 http://www.cmotion.eu... -
Page 29: International Declarations
Cet appareil numérique de la Classe A respecte toutes les exigences du Réglement sur le matériel brouilleur du Canada. All content © 2019, cmotion GmbH. All specifications are subject to change without further notice. page 29 of 30... - Page 30 The cPRO camin contains the following radio module: FCC ID: Y7N-EMIP400 IC ID: 9482A-EMIP400 CMIT ID: 2017DJ7863C(M) MIC ID: 020-180030 NCC: CCAH18LP0660T0 KC: R-CRM-ARg-EMIP400 EMIP400s: ETA:1385/2018/ERLO All content © 2019, cmotion GmbH. All specifications are subject to change without further notice. page 30 of 30 http://www.cmotion.eu...
