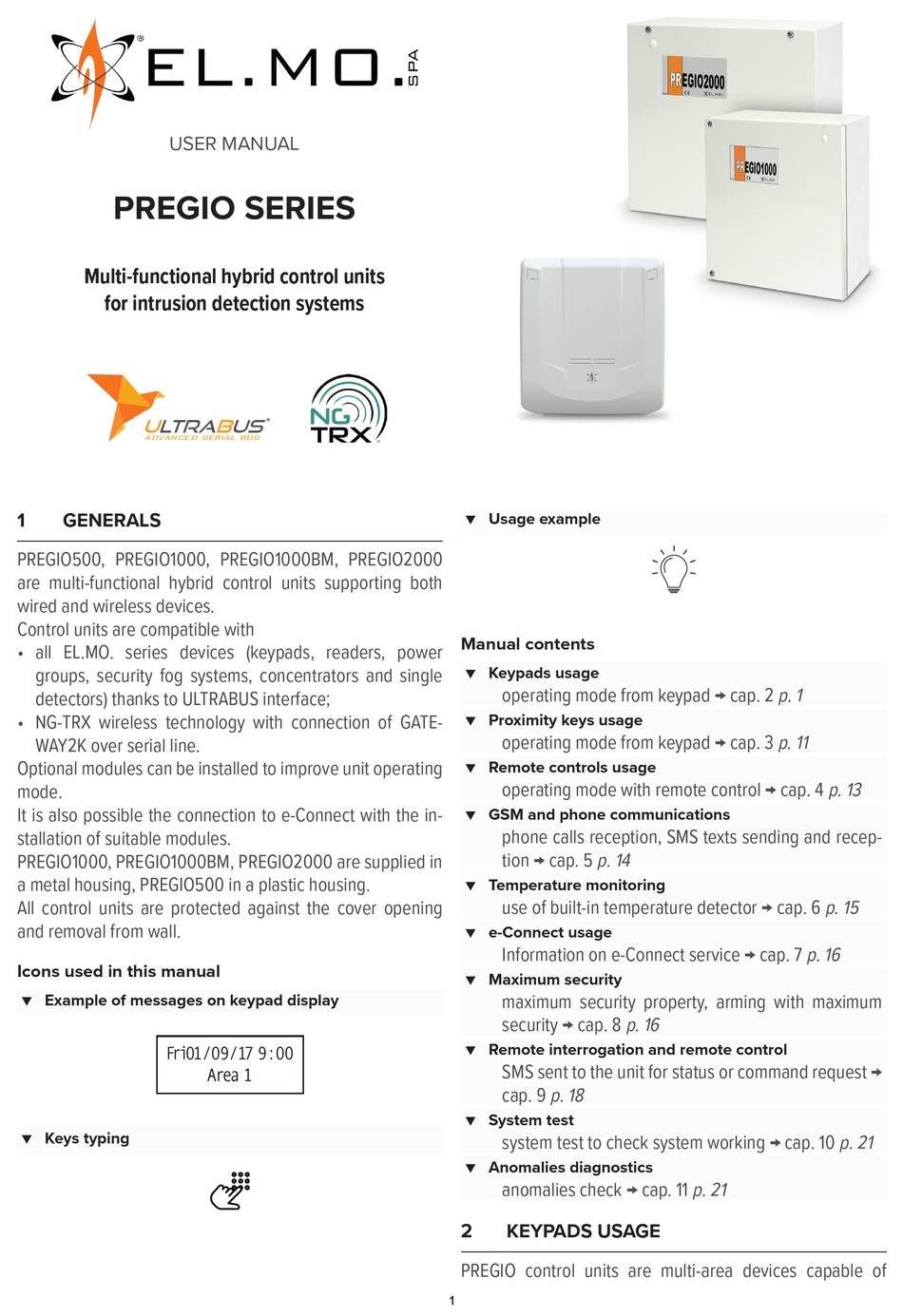

User manUal
PREGIO sERIEs
Multi-functional hybrid control units
for intrusion detection systems
ULTRABUS
advanced serial bus
1
GENERALs

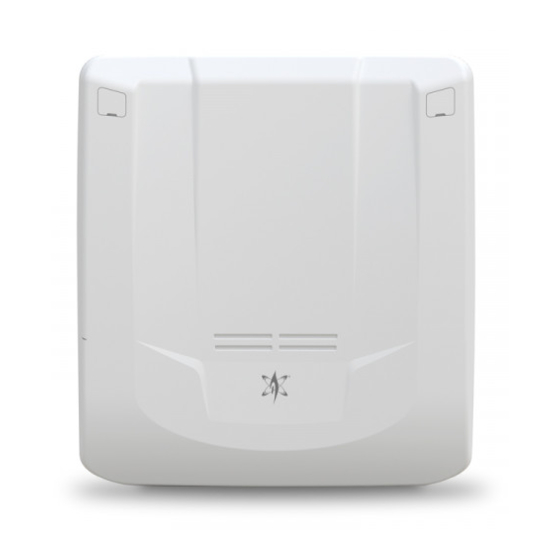

PREGIO500, PREGIO1000, PREGIO1000BM, PREGIO2000
are multi-functional hybrid control units supporting both
wired and wireless devices.
Control units are compatible with
• all EL.MO. series devices (keypads, readers, power
groups, security fog systems, concentrators and single
detectors) thanks to ULTRABUS interface;
• NG-TRX wireless technology with connection of GATE-
WAY2K over serial line.
Optional modules can be installed to improve unit operating
mode.
It is also possible the connection to e-Connect with the in-
stallation of suitable modules.
PREGIO1000, PREGIO1000BM, PREGIO2000 are supplied in
a metal housing, PREGIO500 in a plastic housing.
All control units are protected against the cover opening
and removal from wall.
Icons used in this manual
▼ Example of messages on keypad display
Fri01/09/17 9:00
▼ Keys typing
®
Area 1
▼ Usage example
Manual contents
▼ Keypads usage
operating mode from keypad → cap. 2 p. 1
▼ Proximity keys usage
operating mode from keypad → cap. 3 p. 11
▼ Remote controls usage
operating mode with remote control → cap. 4 p. 13
▼ GsM and phone communications
phone calls reception, SMS texts sending and recep-
tion → cap. 5 p. 14
▼ Temperature monitoring
use of built-in temperature detector → cap. 6 p. 15
▼ e-Connect usage
Information on e-Connect service → cap. 7 p. 16
▼ Maximum security
maximum security property, arming with maximum
security → cap. 8 p. 16
▼ Remote interrogation and remote control
SMS sent to the unit for status or command request →
cap. 9 p. 18
▼ system test
system test to check system working → cap. 10 p. 21
▼ Anomalies diagnostics
anomalies check → cap. 11 p. 21
2
KEYPADs UsAGE
PREGIO control units are multi-area devices capable of
1 1 1
