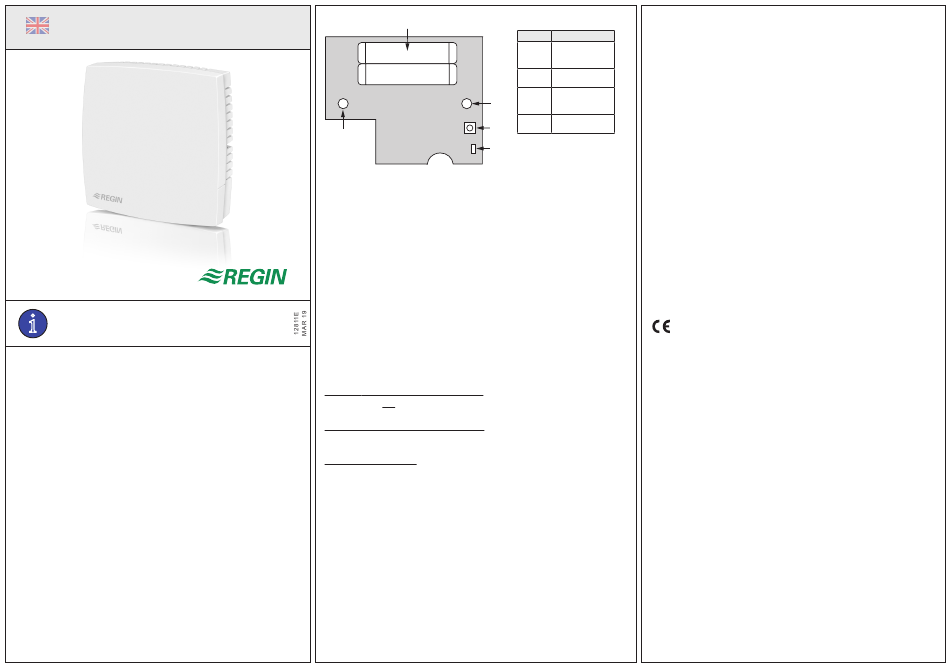

Regin TG-R5W Instruction

INSTRUCTION
EN
TG-R5W
i
Read this instruction before installation
of the product
Wireless room temperature sensor
TG-R5W is a wireless room temperature sensor that monitors tem-
perature and sends a signal to a Regin Modbus receiver.
Commissioning
For optimal temperature monitoring, the sensor should be mounted in
an open space with good air circulation, and at a height of 1.2 to 1.4
meters.
The sensor must be paired with the receiver before it can be used.
Installation of batteries
1. Open the cover by pressing the locking tab carefully with a
screwdriver
2. Insert two 1.5 V L91 Lithium batteries
1
-
+
-
+
2
3
2
4
Pairing the sensor with the receiver
Look in the receiver instruction for information on how to pair the sensor
with the receiver.
Pairing/connection test
The connection to the receiver must be tested before mounting the sen-
sor.
1. Place the receiver and the sensor at the desired locations.
2. For RCW-M: Put the receiver into Programming mode
For RCW-M32: Push the Test button to activate the display.
3. Perform a Walk test: Press the Test button on the sensor to see if the
location is within signal range of the receiver. The LED light will indi-
cate if the sensor is paired with the receiver or not. There will also be
a long beep from the receiver when the sensor is paired successfully.
LED light
3 flashes (When Test button is pressed):
The sensor is not paired with the receiver.
Flashing (When Test button is pressed):
The sensor is paired with the receiver.
Flash every 4 seconds:
Batteries need to be replaced.
Mounting the sensor
The sensor should be mounted in an open space with good air circulation,
and at a height of 1.2 to 1.4 meters.
1. Use the screw holes to mount the sensor on the wall
2. Snap on the cover
TG-R5W
Other functions
Number Description
1 Battery
Temperature detection
compartments
The sensor monitors the temperature at a preset time interval (factory
2 Screw holes setting is 2 minutes), and if the temperature has changed by more
than ± 0.2°C it will send a signal to the receiver. If the temperature is
3 Connection/
stable, the sensor will transmit a signal every 95-115 minutes.
Test button
4 LED light
Self test
The sensor will automatically send a supervisory signal to the receiver
at an interval of 95 to 115 minutes to test the signal.
The receiver will indicate "out of signal" if it has not received the
signal at a preset interval.
Technical data
Power supply
Battery lifetime
Frequency
Operating temperature
Operation humidity
Protection class
Dimensions (HxWxD)
This product carries the CE mark. For more information, see
www.regincontrols.com.
Product documentation
All documentation can be downloaded from www.regincontrols.com
Contact
AB Regin, Box 116, 428 22 Kållered, Sweden
Tel: +46 31 720 02 00, Fax: +46 31 720 02 50
www.regincontrols.com, info@regincontrols.com
1.5 V L91 Lithium x 2
10 years
868 MHz
-10...+50°C
Max. 85 % RH (non-condensing)
IP30
86 x 86 x 30 mm
1
