Bed Exit Monitoring Section

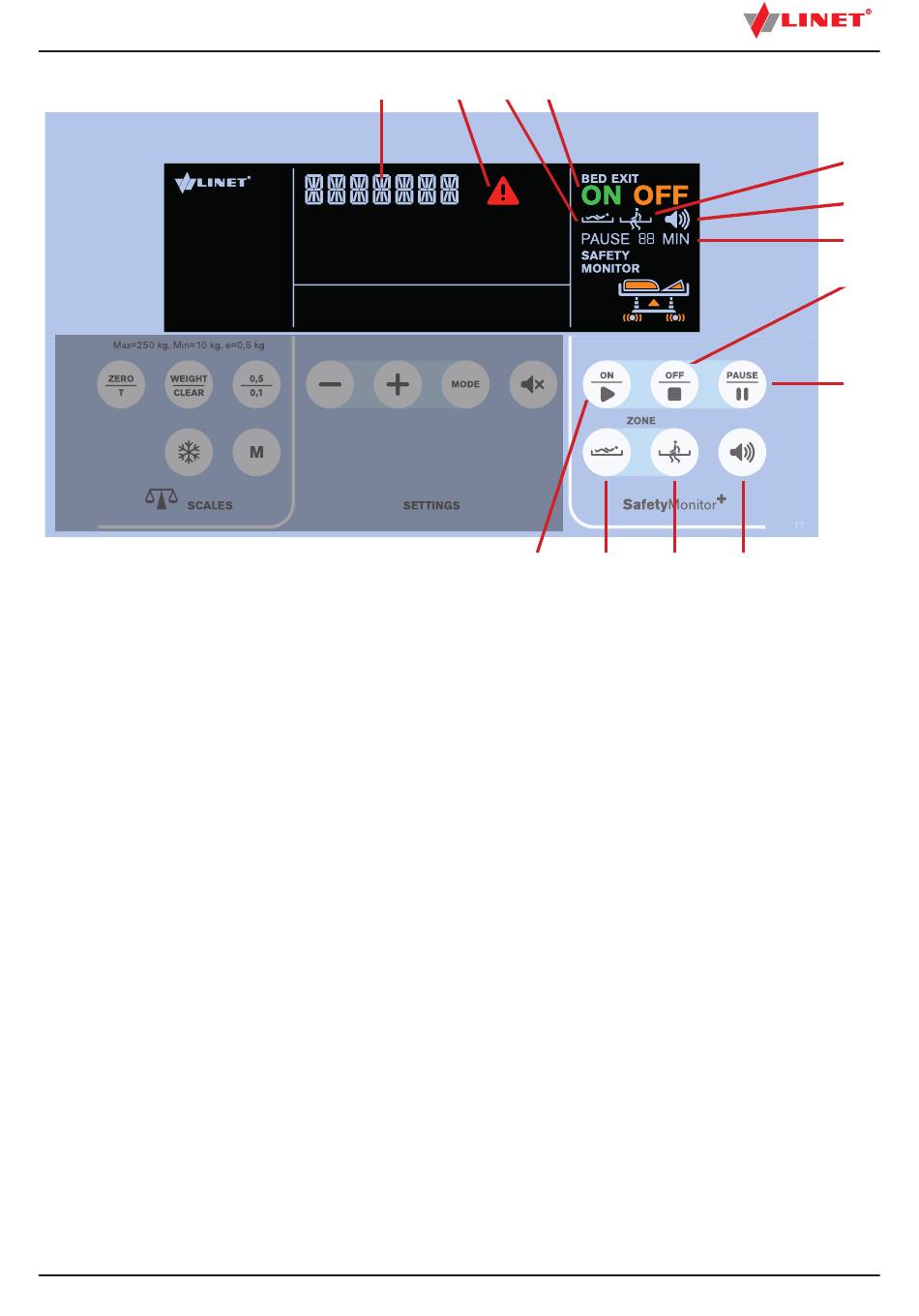

Fig. 11 Bed Exit Monitoring Section - Display and Keyboard
1. ON Button
2. Bed Exit Monitoring Zone Button (Inner Zone)
3. Bed Exit Monitoring Zone Button (Outer Zone)
4. VOLUME Button (3 levels)
5. PAUSE Button
6. OFF Button
7. PAUSE Coundown Icon
8. Volume Icon (3 levels)
9. Bed Exit Monitoring Activated (Outer Zone)
10. OFF Icon
11. ON Icon
12. Bed Exit Monitoring Activated (Inner Zone)
13. Alert Icon
14. Status indicator
1) Preparation
► Place a patient on the bed with suitable mattress.
NOTE For the correct Bed Exit Monitoring in the Inner Zone patient´s position in the middle of the bed is needed.
2) Activation of Bed Exit Monitoring
Bed Exit Monitoring is OFF and icon 10 is displayed by default.
To activate Bed Exit Monitoring:
Press button 1.
►
Icon 11 appears on the display.
When Bed Exit Monitoring is activated Inner Zone is set by default. Icon 12 therefore appears on the display.
NOTE Minimum patient´s weight for Bed Exit Monitoring is 35 kg.
3) Monitored Zone
To set Outer Zone:
► Press button 3.
Icon 9 appears on the display.
D9U001GE0-0101_02
14 13 12 11
1 2 3 4
9
8
7
6
5
