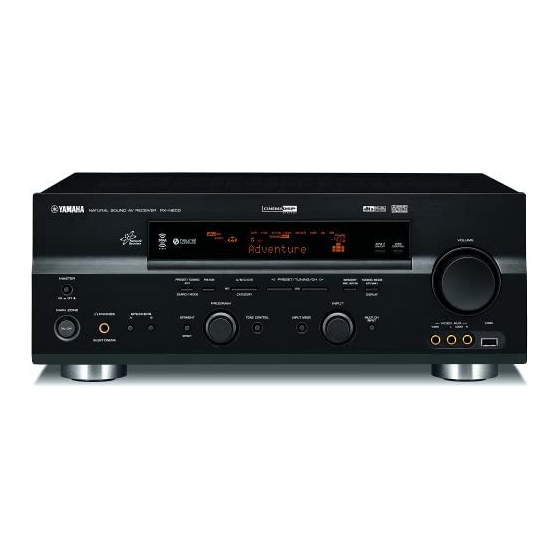

RX-N600D
AV Receiver
OWNER'S MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Yamaha RX-N600D

Summary of Contents for Yamaha RX-N600D

  • Page 1 RX-N600D AV Receiver OWNER’S MANUAL...
  • Page 2 YAMAHA will not be held responsible for any damage resulting from use of this unit with a voltage other than specified.

  • Page 3: Table Of Contents

    Connecting a DVD player, a DVD recorder, a VCR or an STB... 18 Connecting a CD player, an MD player or a tape deck ... 20 Connecting a YAMAHA iPod universal dock ... 21 Connecting the network... 22 Connecting a multi-format player, an external decoder or a sound processor...

  • Page 4: Features

    Inc., registered in the U.S. and other countries. FEATURES Network features ◆ LAN port to connect a PC and YAMAHA MCX-2000 or access the Internet radio via a LAN ◆ DHCP automatic or manual network configuration USB features ◆ USB port to connect a USB memory device or a USB portable...

  • Page 5: Getting Started

    Supplied accessories Check that you received all of the following parts. Remote control AM loop antenna CODE SET TRANSMIT POWER POWER STANDBY POWER SLEEP CD-R MULTI CH IN TUNER DOCK V-AUX SOURCE TV VOL TV CH VOLUME TV MUTE TV INPUT MUTE STEREO MUSIC...

  • Page 6: Controls And Functions

    CONTROLS AND FUNCTIONS CONTROLS AND FUNCTIONS Front panel MASTER MAIN ZONE PHONES SPEAKERS ON/OFF SILENT CINEMA 1 MASTER ON/OFF Turns on or off this unit (see page 28). 2 MAIN ZONE ON/OFF Turns on the main zone or sets it to the standby mode (see page 28).
  • Page 7 8 TUNING MODE (AUTO/MAN’L), DISPLAY • Switches between automatic tuning (the AUTO indicator is turned on) and manual tuning (the AUTO indicator is turned off) when this unit is in the FM/AM tuning mode (see page 46). • Displays various information about the DAB service currently being broadcast when this unit is in the DAB tuning mode (see page 63).

  • Page 8: Remote Control

    CONTROLS AND FUNCTIONS Remote control This section describes the function of each control on the remote control used to control this unit. To operate other components, see “REMOTE CONTROL FEATURES” on page 96. Note The operation mode of the remote control buttons in the shaded area below depends on the component selector switch position.
  • Page 9 L Network and USB input selector buttons Select the sub input source of NET/USB (see page 106). PC/MCX Selects a PC server or YAMAHA MCX-2000 as the sub input source of NET/USB. NET RADIO Selects the Internet radio as the sub input source of NET/USB.

  • Page 10: Using The Remote Control

    CONTROLS AND FUNCTIONS ■ Controlling the TUNER (FM/AM and DAB) functions Set the component selector switch to SOURCE and then press TUNER to select “TUNER” as the input source. Press BAND repeatedly to switch the reception band between FM, AM and DAB. 456Numeric buttons •...

  • Page 11: Front Panel Display

    Lights up when headphones are connected and a sound field program is selected (see page 34). 7 DOCK indicator Lights up when you station your iPod in a YAMAHA iPod universal dock (such as YDS-10 sold separately) connected to the DOCK terminal of this unit (see page 21).
  • Page 12 CONTROLS AND FUNCTIONS I Headphones indicator Lights up when headphones are connected. J ZONE2 indicator Lights up when Zone 2 is turned on (see page 102). K NIGHT indicator Lights up when you select a night listening mode (see page 34). L HiFi DSP indicator Lights up when you select a HiFi DSP sound field program (see page 72).

  • Page 13: Rear Panel

    7 DIGITAL INPUT jacks See pages 18 and 20 for connection information. 8 DOCK terminal Use to connect a YAMAHA iPod universal dock (such as YDS-10 sold separately) where your iPod can be stationed. See page 21 for connection information.

  • Page 14: Connections

    Subwoofer (SW) The use of a subwoofer with a built-in amplifier, such as the YAMAHA Active Servo Processing Subwoofer System, is effective not only for reinforcing bass frequencies from any or all channels, but also for high fidelity reproduction of the LFE (low-frequency effect) channel included in Dolby Digital and DTS sources.

  • Page 15: Connecting Speakers

    Connecting speakers Be sure to connect the left channel (L), right channel (R), “+” (red) and “–” (black) properly. If the connections are faulty, no sound will be heard from the speakers, and if the polarity of the speaker connections is incorrect, the sound will be unnatural and lack bass.

  • Page 16: Connecting The Speaker Cable

    SURROUND BACK terminals Connect a surround back speaker (6) to these terminals. SUBWOOFER OUTPUT jack Connect a subwoofer with a built-in amplifier (7) (such as the YAMAHA Active Servo Processing Subwoofer System) to this jack. Speaker layout ■ Connecting the speaker cable...

  • Page 17: Information On Jacks And Cable Plugs

    Information on jacks and cable plugs Audio jacks and cable plugs DIGITAL AUDIO AUDIO COAXIAL (White) (Red) (Orange) Left and right Coaxial analog audio digital audio cable plugs cable plug ■ Audio jacks This unit has three types of audio jacks. Connection depends on the availability of audio jacks on your other components.

  • Page 18: Audio And Video Signal Flow

    CONNECTIONS Audio and video signal flow ■ Audio signal flow for AUDIO OUT (REC) DIGITAL AUDIO COAXIAL DIGITAL AUDIO OPTICAL AUDIO Digital output Analog output Note This unit handles digital and analog signals independently. Thus, audio signals input at the analog jacks are output only at the analog AUDIO OUT (REC) jacks.

  • Page 19: Connecting A Tv

    CONNECTIONS Connecting a TV Connect your TV to the VIDEO MONITOR OUT jack, the S VIDEO MONITOR OUT jack or the COMPONENT VIDEO MONITOR OUT jacks of this unit. CAUTION Do not connect this unit or other components to the AC power supply until all connections between components are complete.

  • Page 20: Connecting A Dvd Player, A Dvd Recorder, A Vcr Or An Stb

    CONNECTIONS Connecting a DVD player, a DVD recorder, a VCR or an STB Connect your DVD player, DVD recorder, VCR or STB (set-top box) using the same type of video connections as those made for your TV (see page 17). The cable TV receiver and the satellite receiver are examples of the STB. CAUTION Do not connect this unit or other components to the AC power supply until all connections between components are complete.
  • Page 21 ■ Connecting a DVD recorder or a VCR AUDIO VIDEO S VIDEO ■ Connecting an STB AUDIO DTV/CBL DTV/CBL VIDEO S VIDEO DVD recorder or Cable TV receiver or satellite receiver DIGITAL INPUT DTV/CBL OPTICAL CONNECTIONS COMPONENT VIDEO Component video out Component video out DTV/ COMPONENT VIDEO...

  • Page 22: Connecting A Cd Player, An Md Player Or A Tape Deck

    CONNECTIONS Connecting a CD player, an MD player or a tape deck Connect your CD player, MD player or tape deck via analog and/or digital connections. CAUTION Do not connect this unit or other components to the AC power supply until all connections between components are complete.

  • Page 23: Connecting A Yamaha Ipod Universal Dock

    DOCK terminal of this unit as long as this unit is turned on. • Depending on the type of iPod, you may need to insert one of the iPod adapters supplied with a YAMAHA iPod universal dock (such as YDS-10 sold separately) into the dock slot before you station your iPod.

  • Page 24: Connecting The Network

    Configuration Protocol) server function. The following diagram shows a connection example where this unit is connected to one of the LAN ports on a 4-port router. To enjoy music files saved on your PC and YAMAHA MCX-2000 or access the Internet radio, each device must be connected properly in the network.

  • Page 25: Connecting A Multi-Format Player, An External Decoder Or A Sound Processor

    Connecting a multi-format player, an external decoder or a sound processor This unit is equipped with 6 additional input jacks (FRONT L/R, CENTER, SURROUND L/R and SUBWOOFER) for discrete multi-channel input from a multi-format player, external decoder or sound processor. Connect the output jacks on your multi-format player, external decoder or sound processor to the MULTI CH INPUT jacks.

  • Page 26: Connecting The Fm And Am Antennas

    • A properly installed outdoor antenna provides clearer reception than an indoor one. If you experience poor reception quality, install an outdoor antenna. Consult the nearest authorized YAMAHA dealer or service center about outdoor antennas. AM loop antenna (supplied) Indoor FM antenna...

  • Page 27: Connecting The Dab Antenna

    Connecting the DAB antenna Connect the supplied indoor DAB antenna to the DAB antenna terminal on the rear panel and attach the indoor DAB antenna vertically on the wall. 75 Ω UNBAL. Indoor DAB antenna (supplied) It is recommended that you use the tuning aid function (see page 66) when you set up the indoor DAB antenna in order to maximize DAB reception capability.

  • Page 28: Connecting The Power Cable

    CONNECTIONS Connecting the power cable Once all connections are complete, plug the power cable into the AC wall outlet. ■ AC OUTLET (SWITCHED) Use this outlet to supply power to any connected components. Connect the power cable of another component to this outlet. Power to this outlet is supplied when the main zone or Zone 2 is turned on.

  • Page 29: Setting The Speaker Impedance

    Setting the speaker impedance CAUTION If you are to use 6 ohm speakers, set “SP IMP.” to “6ΩMIN” as follows BEFORE using this unit. 4 ohm speakers can be also used as the front speakers. MASTER MASTER PRESET/TUNING PRESET/TUNING FM/AM FM/AM A/B/C/D/E A/B/C/D/E...

  • Page 30: Turning On And Off The Power

    CONNECTIONS Turning on and off the power When all connections are complete, turn on this unit. MASTER ON/OFF MASTER PRESET/TUNING FM/AM A/B/C/D/E EDIT NEXT SEARCH MODE PROGRAM MAIN ZONE PHONES SPEAKERS STRAIGHT TONE CONTROL ON/OFF EFFECT SILENT CINEMA MAIN ZONE ON/OFF ■...

  • Page 31: Basic Setup

    The “BASIC SETUP” feature is a useful way to set up your system quickly and with minimal effort. Notes • Make sure you disconnect your headphones from this unit. • If you wish to configure this unit manually using more precise adjustments, use the detailed parameters in “SOUND MENU” (see page 82).
  • Page 32 BASIC SETUP Press d to select “SUBWOOFER” and then j / i to select the desired setting. PRESET/CH . SUBWOOFER;;;;YES ENTER A/B/C/D/E Choices: YES, NONE • Select “YES” if you have a subwoofer in your system. • Select “NONE” if you do not have a subwoofer in your system.
  • Page 33 Press j / i to select the desired setting. ;BASIC SETUP PRESET/CH ROOM: SUBWOOFER;;;;YES SPEAKERS;;;;6spk ENTER SETUP:>OK CANCEL . CHECK OK?;;;;YES A/B/C/D/E [<]/[>]:Select Choices: YES, NO • Select “YES” to complete the setup procedure if the test tone levels from each speaker were satisfactory.

  • Page 34: Playback

    PLAYBACK CAUTION Extreme caution should be exercised when you play back CDs encoded in DTS. If you play back a CD encoded in DTS on a DTS-incompatible CD player, you will only hear some unwanted noise that may damage your speakers. Check whether your CD player supports CDs encoded in DTS. Also, check the sound output level of your CD player before you play back a CD encoded in DTS.
  • Page 35 Rotate VOLUME on the front panel (or press VOLUME +/– on the remote control) to adjust the volume to the desired output level. VOLUME Front panel Press TONE CONTROL on the front panel repeatedly to select “TREBLE” or “BASS” and then rotate the PROGRAM selector to adjust the corresponding frequency response level.

  • Page 36: Using Audio Features

    USING AUDIO FEATURES Using SILENT CINEMA SILENT CINEMA allows you to enjoy multi-channel music or movie sound, including Dolby Digital and DTS sources, through ordinary headphones. SILENT CINEMA activates automatically whenever you connect headphones to the PHONES jack while listening to a source with a CINEMA DSP or HiFi DSP sound field program (see page 71).

  • Page 37: Selecting The Input Mode

    “NIGHT:CINEMA” and “NIGHT:MUSIC” adjustments are stored independently. Notes • You cannot use the night listening modes in the following cases: – when the “DIRECT STEREO” mode (see page 39) is selected. – when the component connected to the MULTI CH INPUT jacks is selected as the input source (see page 38).

  • Page 38: Adjusting The Speaker Level

    USING AUDIO FEATURES Press SLEEP on the remote control repeatedly to set the amount of time. Each time you press SLEEP, the front panel display changes as shown below. SLEEP SLEEP 120min SLEEP 90min SLEEP OFF SLEEP 30min The SLEEP indicator flashes while you are switching the amount of time for the sleep timer.

  • Page 39: Selecting The Compressed Music Enhancer Mode

    Press j / i on the remote control to adjust the speaker output level. • Press i to increase the value. • Press j to decrease the value. Control range: –10 dB to +10 dB PRESET/CH ENTER A/B/C/D/E This operation can also be performed using the control buttons on the front panel.

  • Page 40: Selecting The Multi Ch Input Component

    USING AUDIO FEATURES Set the component selector switch to AMP and then press ENHANCER on the remote control repeatedly to select the desired Compressed Music Enhancer mode. The following display appears in the OSD and the ENHANCER indicator lights up in the front panel display.

  • Page 41: Enjoying Multi-Channel Sources In 2-Channel Stereo39

    Enjoying multi-channel sources in 2-channel stereo You can mix down multi-channel sources to 2 channels and enjoy playback in 2-channel stereo. Set the component selector switch to AMP and then press STEREO on the remote control repeatedly to select “2ch Stereo”. STEREO SOURCE 2ch Stereo...

  • Page 42: Using Video Features

    USING VIDEO FEATURES Displaying the input source information You can display the format, sampling frequency, channel, bit rate and flag data of the current input signal. Set the component selector switch to AMP and then press SET MENU on the remote control.

  • Page 43: Selecting The Osd Mode

    Selecting the OSD mode You can display the operating information of this unit on a video monitor. If you display the “SET MENU” and sound field program parameter settings on a video monitor, it is much easier to see the available options and parameters than it is to read the information in the front panel display.

  • Page 44: Enjoying Surround Sound

    ENJOYING SURROUND SOUND ENJOYING SURROUND SOUND Enjoying multi-channel sources in 6.1-channel surround If you connected a surround back speaker, use this feature to enjoy 6.1-channel playback for multi-channel sources using the Dolby Pro Logic IIx, Dolby Digital EX or DTS-ES decoders. Set the component selector switch to AMP and then press EXTD SUR.

  • Page 45: Enjoying 2-Channel Sources In Surround

    Enjoying 2-channel sources in surround Signals input from 2-channel sources can also be played back on multi-channels. Set the component selector switch to AMP and then press STANDARD on the remote control repeatedly to switch between the “SUR. STANDARD” and “SUR. ENHANCED” programs or press MOVIE to select the “MOVIE THEATER”...

  • Page 46: Using Virtual Cinema Dsp

    ENJOYING SURROUND SOUND Using Virtual CINEMA DSP Virtual CINEMA DSP allows you to enjoy the CINEMA DSP programs without surround speakers. It creates virtual speakers to reproduce the natural sound field. If you set “SUR. L/R SP” NONE” (see page 83), to “...

  • Page 47: Recording

    Recording adjustments and other operations are performed from the recording components. Refer to the operating instructions for those components. CAUTION The DTS signal is a digital bitstream. Attempting to digitally record the DTS bitstream will result in noise being recorded. Therefore, if you want to use this unit to record sources encoded in DTS, the following considerations and adjustments need to be made.

  • Page 48: Fm/Am Tuning

    FM/AM TUNING There are 2 tuning methods: automatic and manual. Automatic tuning is effective when station signals are strong and there is no interference. If the signal from the station you want to select is weak, tune into it manually. You can also use the automatic and manual preset tuning features to store up to 40 stations (A1 to E8: 8 preset station numbers in each of the 5 preset station groups).

  • Page 49: Manual Tuning

    Manual tuning If the signal received from the station you want to select is weak, tune into it manually. Note Manually tuning into an FM station automatically switches the tuner to monaural reception to increase the signal quality. MASTER PRESET/TUNING FM/AM A/B/C/D/E l PRESET/TUNING h...

  • Page 50: Automatic Preset Tuning

    FM/AM TUNING Automatic preset tuning You can use the automatic preset tuning feature to store FM stations with strong signals up to 40 (A1 to E8: 8 preset station numbers in each of the 5 preset station groups) of those stations in order. You can then recall any preset station easily by selecting the preset station number.

  • Page 51: Manual Preset Tuning

    ■ Automatic preset tuning options You can specify the preset number from which this unit stores FM stations and/or begins tuning toward lower frequencies. Note First carry out steps 1 through 3 in “Automatic preset tuning” on page 48. • Press A/B/C/D/E and then PRESET/TUNING l / h to select the preset station number under which the first station will be stored.

  • Page 52: Selecting Preset Stations

    FM/AM TUNING Press PRESET/TUNING l / h to select a preset station number (1 to 8) while the MEMORY indicator is flashing. • Press h to select a higher preset station number. • Press l to select a lower preset station number. l PRESET/TUNING h LEVEL V-AUX...

  • Page 53: Exchanging Preset Stations

    Press PRESET/TUNING l / h on the front panel (or PRESET/CH u / d on the remote control) to select the desired preset station number (1 to 8). The preset station group and number appear in the front panel display along with the station band and frequency.
  • Page 54 FM/AM TUNING Select preset station “A5” using A/B/C/D/E and PRESET/TUNING l / h. “A5” and the MEMORY indicator flash in the front panel display. See “Selecting preset stations” on page 50. A/B/C/D/E NEXT V-AUX DTV/CBL A5:FM 90.60MHz Flashes Press EDIT again. “EDIT E1–A5”...

  • Page 55: Radio Data System Tuning

    RADIO DATA SYSTEM TUNING Radio Data System (Europe model only) is a data transmission system used by FM stations in many countries. The Radio Data System function is carried out among the network stations. This unit can receive various Radio Data System data such as PS (program service), PTY (program type), RT (radio text), CT (clock time), and EON (enhanced other networks) when receiving Radio Data System broadcasting stations.

  • Page 56: Using The Radio Data System Station Network

    RADIO DATA SYSTEM TUNING Press PTY SEEK START on the remote control to start searching for all the available Radio Data System preset stations. The name of the selected program type flashes and the PTY HOLD indicator lights up in the front panel display while this unit is searching for stations.

  • Page 57: Displaying The Radio Data System Information

    Press EON on the remote control repeatedly to select one of the 4 Radio Data System program types (NEWS, AFFAIRS, INFO or SPORT). The name of the selected program type appears in the front panel display. To cancel the EON feature, press EON on the remote control repeatedly until the name of the program type disappears and “EON OFF”...
  • Page 58 RADIO DATA SYSTEM TUNING Press FREQ/TEXT on the remote control repeatedly to select the desired Radio Data System display mode. FREQ/TEXT Frequency display • Select “PS” to display the name of the Radio Data System program currently being received. • Select “PTY” to display the type of the Radio Data System program currently being received.

  • Page 59: Dab (Digital Audio Broadcasting) Tuning

    DAB (DIGITAL AUDIO BROADCASTING) TUNING DAB (Digital Audio Broadcasting), also known as digital radio, is a new way of radio broadcasting. DAB is broadcast using digital signals instead of analog signals, resulting in near CD-quality sound. Analog signals (i.e. AM/FM) are susceptible to interference (i.e.

  • Page 60: Preparing The Dab Tuning

    DAB (DIGITAL AUDIO BROADCASTING) TUNING Preparing the DAB tuning Before tuning into DAB services, you must perform the initial scan. MASTER PRESET/TUNING FM/AM A/B/C/D/E l PRESET/TUNING h EDIT LEVEL NEXT SEARCH MODE PROGRAM INPUT MAIN ZONE PHONES SPEAKERS STRAIGHT TONE CONTROL INPUT MODE ON/OFF EFFECT...

  • Page 61: Dab Tuning

    DAB tuning There are five DAB tuning methods: “ALPHANUMERIC”, “ACTIVE”, “ENSEMBLE”, “FAVOURITE”, and “PRESET”. You can select the desired services with the channel labels displayed in the front panel display. Note Once you have performed the initial scan, the registry list of available services is updated automatically as long as this unit is in the DAB tuning mode.

  • Page 62: Dab Preset Tuning

    DAB (DIGITAL AUDIO BROADCASTING) TUNING Press PRESET/TUNING l / h on the front panel (or PRESET/CH u / d on the remote control) repeatedly to search for registered DAB services. l PRESET/TUNING h LEVEL Front panel To return to the top of the list, press A/B/C/D/E on the front panel (or j / i on the remote control).
  • Page 63 Press MEMORY on the front panel (or DAB MEMORY on the remote control). The MEMORY indicator flashes in the front panel display for approximately 5 seconds. MEMORY MAN'L/AUTO FM Front panel RETURN DAB MEMORY Remote control Press PRESET/TUNING l / h on the front panel (or PRESET/CH u / d on the remote control) repeatedly until “EMPTY”...

  • Page 64: Selecting Preset Dab Services

    DAB (DIGITAL AUDIO BROADCASTING) TUNING Selecting preset DAB services You can tune into any desired DAB service simply by entering the corresponding preset service number under which it was stored. MASTER l PRESET/TUNING h PRESET/TUNING FM/AM A/B/C/D/E EDIT NEXT LEVEL SEARCH MODE PROGRAM INPUT...

  • Page 65: Dab Service Information

    DAB service information Use this feature to display various information about the DAB service currently being received. Press DISPLAY on the front panel (or on the remote control) repeatedly while a DAB service is currently being broadcast. TUNING MODE AUTO/MAN'L DISPLAY Front panel Remote control...

  • Page 66: Using Dab Menu

    DAB (DIGITAL AUDIO BROADCASTING) TUNING Using DAB MENU There are 5 operations in DAB MENU: “INIT SCAN”, “TUNE AID”, “DRC MODE”, “PRUNE LIST”, and “PRESET DEL”. Use the remote control to access and adjust each operation in DAB MENU. This section explains how to access DAB MENU and perform each operation using the front panel display.
  • Page 67 ■ Initial scan A)INIT SCAN Use this feature to locate all of the DAB ensembles and services in your area. When “INIT SCAN” is selected, this unit scans the entire range of Band III and L-Band (or the limited range of Band III, if selected), and creates a registry list of all the receivable DAB ensembles and services.
  • Page 68 DAB (DIGITAL AUDIO BROADCASTING) TUNING Note If the initial scan operation was not successful, “Not Available” appears in the front panel display. In such cases, press A/B/C/D/E on the front panel (or u / d on the remote control) to start “INIT SCAN” automatically. •...
  • Page 69 ■ DRC mode C)DRC MODE Some DAB broadcasters transmit a wide dynamic range enabling high quality sound, accompanied by DRC (Dynamic Range Control) data. Use this feature to compress the dynamic range of the DAB broadcast. This is especially useful when you listen to a DAB service in a noisy environment or at a low volume at night.
  • Page 70 DAB (DIGITAL AUDIO BROADCASTING) TUNING ■ Prune list D)PRUNE LIST Use this feature to delete a group of inactive DAB ensembles and services from the DAB registry list. Press u / d to select “PRUNE LIST” in “DAB MENU”, and then press ENTER. For details, see “Using DAB MENU”...
  • Page 71 Press ENTER to delete the selected preset DAB service from the DAB registry list. Once this operation is has been completed, “DELETE OK” appears in the front panel display, and then this unit returns to the “PRESET DEL” menu. PRESET/CH ENTER A/B/C/D/E DELETE OK...

  • Page 72: Sound Field Programs

    The acoustics in your room could be changed to those of a concert hall, a dance floor, or a room with virtually any size at all. This ability to create sound fields at will is exactly what YAMAHA has done with the digital sound field processor.

  • Page 73: Sound Field Program Descriptions

    (DSP) chip containing several sound field programs which you can use to enhance your playback experience. The YAMAHA CINEMA DSP modes are compatible with all Dolby Digital, DTS, and Dolby Surround sources. Set “INPUT MODE” to “AUTO” (see page 35) to enable this unit to automatically switch to the appropriate digital decoder according to the input signal.

  • Page 74: For Music Sources

    SOUND FIELD PROGRAMS Remote control Sound field program button MOVIE THEATER Spectacle MOVIE THEATER Sci-Fi MOVIE THEATER Adventure MOVIE THEATER General SUR. STANDARD SUR. ENHANCED ■ For music sources You can select from the following sound fields when playing music sources, like CD, FM/AM broadcasting, tapes, etc. Rotate the PROGRAM selector on the front panel (or set the component selector switch to AMP and then press one of the sound field program selector buttons on the remote control) to select the desired sound field program (see page 70).

  • Page 75: Changing Sound Field Parameter Settings

    Changing sound field parameter settings You can enjoy good quality sound with the initial factory settings. Although you do not have to change the initial factory settings, you can change some of the parameters to better suit the input source or your listening room. Notes •...

  • Page 76: Sound Field Parameter Descriptions

    SOUND FIELD PROGRAMS ■ Sound field parameter descriptions You can adjust the values of certain digital sound field parameters so that the sound fields are recreated accurately in your listening room. Not all of the following parameters are found in every program. To change sound field parameter settings to suit your listening environment, see page 73 for details.
  • Page 77 Sound field parameter ROOM SIZE Room size. Presence, surround, and surround back room sizes. Adjusts the apparent size of the surround sound field. The larger the value, the larger the surround sound field becomes. As the P.ROOM SIZE sound is repeatedly reflected around a room, the larger the hall is, the longer the time between S.ROOM SIZE the original reflected sound and the subsequent reflections.
  • Page 78 SOUND FIELD PROGRAMS Sound field parameter REV.TIME Reverberation time. Adjusts the amount of time taken for the dense, subsequent reverberation sound to decay by 60 dB at 1 kHz. This changes the apparent size of the acoustic environment over an extremely wide range. Set a longer reverberation time for “dead” sources and listening room environments, and a shorter time for “live”...
  • Page 79 Sound field parameter REV.LEVEL Reverberation level. Adjusts the volume of the reverberation sound. The larger the value, the stronger the reverberation becomes. Control range: 0 to 100% 2ch Stereo 2-channel stereo direct. Bypasses the decoders and DSP processors of this unit for pure hi-fi stereo sound when playing 2-channel analog sources.
  • Page 80 SOUND FIELD PROGRAMS Sound field parameter PRO LOGIC IIx Music Pro Logic IIx Music and Pro Logic II Music panorama. Sends stereo signals to the surround speakers as well as the front speakers for a wraparound effect. PRO LOGIC II Music PANORAMA Choices: OFF, ON PRO LOGIC IIx Music...

  • Page 81: Set Menu

    You can use the following parameters in “SET MENU” to adjust a variety of system settings and customize the way this unit operates. Change the initial settings (indicated in bold under each parameter) to reflect the needs of your listening environment.

  • Page 82: Signal Information

    SET MENU DAB menu 3 DAB MENU Use this menu to manually perform the DAB operations. For details, see “Using DAB MENU” on page 64. Parameter A)INIT SCAN Locates all of the DAB ensembles and services in your area. B)TUNE AID Displays the strength of the current DAB signals.

  • Page 83: Using Set Menu

    Using SET MENU Use the remote control to access and adjust each parameter. STEREO MUSIC SLEEP CD-R STANDARD SELECT MULTI CH IN TUNER DOCK SPEAKERS ENHANCER V-AUX PRESET/CH LEVEL TITLE SOURCE BAND TV VOL TV CH VOLUME RETURN TV MUTE TV INPUT MUTE DAB MEMORY...

  • Page 84: Sound Menu

    SET MENU Press u / d repeatedly and then press ENTER to select and enter the desired submenu. The following display is an example where “SPEAKER LEVEL” is selected. PRESET/CH ENTER A/B/C/D/E B)SPEAKER LEVEL -__________+ FL;;;;;;;;;; FR;;;;;;;;;; C;;;;;;;;;; Press u / d to select the desired parameter and then j / i to change the parameter settings.
  • Page 85 Center speaker CENTER SP Choices: NONE, SML, LRG CENTER SP NONE >SML • Select “NONE” (none) if you did not connect a center speaker. The center channel signals are directed to the front left and right speakers. • Select “SML” (small) if you have a small center speaker that does not reproduce low-frequency signals effectively.
  • Page 86 SET MENU CROSSOVER Crossover Use this feature to select a crossover frequency of all the speakers set to “SML” (or “SMALL”) or to “NONE” in “SPEAKER SET” (see pages 82 and 83). All frequencies below the selected frequency will be sent to the subwoofer or to the speakers set to “LRG”...
  • Page 87 ■ Speaker distance C)SP DISTANCE Use this feature to manually adjust the distance of each speaker and the delay applied to the respective channel. Ideally, each speaker should be the same distance from the main listening position. However, this is not possible in most home situations.
  • Page 88 SET MENU ■ Dynamic range F)DYNAMIC RANGE Use this feature to select the amount of dynamic range compression to be applied to your speakers or headphones. This setting is effective only when this unit is decoding Dolby Digital and DTS signals. F)DYNAMIC RANGE .

  • Page 89: Input Menu

    2 INPUT MENU Use this menu to reassign the input/output jacks, select the input mode or rename the input source. 2 INPUT MENU . A)I/O ASSIGNMENT B)INPUT MODE C)INPUT RENAME D)VOLUME TRIM [ ]/[ ]:Up/Down [ENTER]:Enter ■ Input/output assignment A)I/O ASSIGNMENT Use this feature to assign the input/output jacks according to the component to be used if the initial settings of this unit do not correspond to your needs.
  • Page 90 SET MENU ■ Input mode B)INPUT MODE Use this feature to set this unit to reset “INPUT MODE” back to “AUTO” (see page 35) regardless of the previous setting or to recall the last input mode (“AUTO”, “DTS”, or “ANALOG”) used for that source whenever you turn on this unit.

  • Page 91: Dab Menu

    ■ Volume trim D)VOLUME TRIM Use this feature to adjust the level of the signal input at each jack. This is useful if you want to balance the level of each input source to avoid sudden changes in volume when switching between input sources. Choices: CD, MD/CD-R, TUNER, DVD, DTV/CBL, V-AUX, DOCK, DVR, PC/MCX, USB, NET RADIO, MULTI CH IN...

  • Page 92: Net/Usb Menu

    SET MENU 4 NET/USB MENU Use this menu to adjust the network and USB system parameters. 4 NET/USB MENU . A)NETWORK B)PLAY STYLE C)INFORMATION [ ]/[ ]:Up/Down [ENTER]:Enter ■ Network settings A)NETWORK Use this feature to view the network parameters (IP address, etc.) or to change them manually.
  • Page 93 ■ Playback styles B)PLAY STYLE Use this feature to adjust the playback style according to your preference. You can shuffle songs in a random order or repeat one specific song or a sequence of songs. B)PLAY STYLE . REPEAT;;;;;;;OFF SHUFFLE;;;;;;OFF [ ]/[ ]:Up/Down [<]/[>]:Select Repeat REPEAT...

  • Page 94: Option Menu

    SET MENU 5 OPTION MENU Use this menu to adjust the optional system parameters. 5 OPTION MENU . A)DISPLAY SET B)MEMORY GUARD C)PARAM. INI D)MULTI ZONE SET [ ]/[ ]:Up/Down [ENTER]:Enter ■ Display settings A)DISPLAY SET A)DISPLAY SET . DIMMER;;;;;;;;;0 .
  • Page 95 ■ Memory guard B)MEMORY GUARD Use this feature to prevent accidental changes to DSP program parameter values and other system settings. Choices: OFF, ON B)MEMORY GUARD >OFF [<]/[>]:Select [ENTER]:Return • Select “OFF” to turn off the “MEMORY GUARD” feature. • Select “ON” to protect: –...

  • Page 96: Advanced Setup

    ADVANCED SETUP This unit has additional menus that are displayed in the front panel display. The advanced setup menu offers additional operations to adjust and customize the way this unit operates. Change the initial settings (indicated in bold under each parameter) to reflect the needs of your listening environment.
  • Page 97 • When the network settings are reset, “DHCP” in “NET/USB MENU” is automatically set to “ON” (see page 90) and the registered client ID of this unit on your YAMAHA MCX-2000 is cleared (see page 108). ■ Remote control AMP ID Use this feature to set the AMP ID of this unit for remote control recognition (see page 99).

  • Page 98: Remote Control Features

    REMOTE CONTROL FEATURES In addition to controlling this unit, the remote control can also operate other audiovisual components made by YAMAHA and other manufacturers. To control your TV or other components, you must set the appropriate remote control code for each input source (see page 98).

  • Page 99: Controlling Other Components

    ■ Controlling other components Set the component selector switch to SOURCE to control other components selected with the input selector buttons, or the blank button on the right of MD/CD-R. You must set the appropriate remote control code for each input source (see page 98).

  • Page 100: Setting The Remote Control Code

    Note You may not be able to operate your YAMAHA component even if a YAMAHA remote control code is initially set as listed above. In this case, try setting other YAMAHA remote control codes. The blank button is the one on the right of MD/CD-R.

  • Page 101: Setting Library Codes

    Setting library codes You can operate multiple YAMAHA receivers or amplifiers in the same room with the supplied remote control simultaneously. Set the appropriate library code to select and operate the desired component with the supplied remote control. ■ Setting remote control AMP ID library...

  • Page 102: Resetting All Remote Control Codes

    REMOTE CONTROL FEATURES Resetting all remote control codes Use this feature to clear all the remote control codes previously set and reset all of them to the initial factory settings. Press CODE SET using a ballpoint pen or a similar object. The TRANSMIT indicator on the remote control flashes twice.

  • Page 103: Using Multi-Zone Configuration

    YAMAHA dealer or service center about the Zone 2 connections that best meet your requirements. • Some YAMAHA models are able to connect directly to the REMOTE jacks of this unit. If you own these products, you may not need to use an infrared signal emitter.

  • Page 104: Controlling Zone 2

    Zone 2 (see page 46) • Enjoying music stored on your iPod stationed in a YAMAHA iPod universal dock (such as YDS-10 sold separately) connected to the DOCK terminal of this unit when “V-AUX” is selected as the input source (see page 104) The volume level and tonal quality of Zone 2 cannot be adjusted.
  • Page 105 ■ Setting the remote control to the Zone 2 mode Note The remote control is originally set to the main mode to control the main zone. To control Zone 2 with the remote control, you must first set the remote control to the Zone 2 mode. Press CODE SET using a ballpoint pen or a similar object.

  • Page 106: Using Ipod

    USING IPOD® Once you have stationed your iPod in a YAMAHA iPod universal dock (such as YDS-10 sold separately) connected to the DOCK terminal of this unit (see page 21), you can enjoy playback of your iPod using the supplied remote control.
  • Page 107 Press DISPLAY on the remote control. The following display appears in the OSD. iPod Playlists Artists Albums DISPLAY Songs ON SCREEN Genres Composers Setup Press u / d / j / i on the remote control to navigate the iPod menu and then press ENTER to begin playback of the selected song.

  • Page 108: Using Network/Usb Features

    This unit is equipped with network and USB features that allow you to enjoy WAV (PCM format only), MP3 and WMA files saved on your PC, YAMAHA MCX-2000, USB memory device and USB portable audio player or access the Internet radio.
  • Page 109 The following procedure shows the basic steps to navigate the network and USB menus. See pages 108 and 109 for details about each sub input source. Note “Please wait” may appear whenever it takes time for communication. This is not a system malfunction. Wait for a while.

  • Page 110: Using A Pc Server Or Yamaha Mcx-2000

    Select a desired server or MusicCAST to begin playback. Notes • YAMAHA MCX-2000 may not be for sale in some locations. • You can connect this unit to up to 4 PC servers and 1 MCX-2000, and each server must be connected to the same subnet as this unit.

  • Page 111: Using The Internet Radio

    ■ Registering this unit on the YAMAHA MCX-2000 You must register this unit on your YAMAHA MCX-2000 so that this unit can be recognized by your YAMAHA MCX-2000. For details, refer to the operation manual supplied with your YAMAHA MCX-2000.

  • Page 112: Using A Usb Memory Device Or A Usb Portable Audio Player

    USING NETWORK/USB FEATURES Using a USB memory device or a USB portable audio player Use this feature to enjoy WAV (PCM format only), MP3 and WMA files saved on your USB memory device or USB portable audio player connected to the USB port on the front panel of this unit.

  • Page 113: Resetting The System

    RESETTING THE SYSTEM Use this feature to reset all the parameters of this unit to the initial factory settings. Notes • This procedure completely resets all the parameters of this unit including the “SET MENU” parameters. However, the advanced setup menu parameters will not be initialized.

  • Page 114: Troubleshooting

    Refer to the table below when this unit does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, turn off this unit, disconnect the power cable, and contact the nearest authorized YAMAHA dealer or service center. ■ General...
  • Page 115 Problem The sound suddenly The protection circuitry has been activated goes off. because of a short circuit, etc. The sleep timer has turned off this unit. The sound is muted. Sound is heard from Incorrect cable connections. the speaker on one side only.
  • Page 116 TROUBLESHOOTING Problem Dolby Digital or DTS The connected component is not set to sources cannot be output Dolby Digital or DTS digital played. (Dolby Digital signals. or DTS indicator in “INPUT MODE” is set to “ANALOG”. the front panel display does not light up.) A humming sound is Incorrect cable connections.
  • Page 117 ■ Tuner Problem FM stereo reception is The characteristics of FM stereo noisy. broadcasts may cause this problem when the transmitter is too far away or the antenna input is poor. There is distortion, There is multi-path interference. and clear reception cannot be obtained even with a good FM antenna.
  • Page 118 Match the remote control ID of this unit with the corresponding remote control library code. Cause Turn off this unit and reconnect the YAMAHA iPod universal dock to the DOCK terminal of this unit. Try resetting your iPod. Only iPod (Click and Wheel), iPod nano, and iPod mini are supported.
  • Page 119 ■ Network and USB Problem The PC server/MCX-2000/ The IP address is not set properly. Internet radio does not function properly. The network cable is not connected. The music in the PC The PC does not have Windows Media server cannot be played Connect 2.0 installed in it.
  • Page 120 TROUBLESHOOTING Status message Please wait This unit is in the middle of recognizing the connection with your network. This unit is in the middle of recognizing the connection with your USB memory device or USB portable audio player. Please wait This unit is in the middle of waking up MCX-2000 that has been set to the (Starting Server)

  • Page 121: Glossary

    Audio information ■ Dolby Digital Dolby Digital is a digital surround sound system that gives you completely independent multi-channel audio. With 3 front channels (front L/R and center), and 2 surround stereo channels, Dolby Digital provides 5 full-range audio channels. With an additional channel especially for bass effects, called LFE (Low Frequency Effect), the system has a total of 5.1-channels (LFE is counted as 0.1 channel).
  • Page 122 GLOSSARY ■ LFE 0.1 channel This channel reproduces low-frequency signals. The frequency range of this channel is from 20 Hz to 120 Hz. This channel is counted as 0.1 because it only enforces a low-frequency range compared to the full-range reproduced by the other 5/6 channels in Dolby Digital or DTS 5.1/6.1-channel systems.

  • Page 123: Video Information

    ■ SILENT CINEMA YAMAHA has developed a natural, realistic sound effect DSP algorithm for headphones. Parameters for headphones have been set for each sound field so that accurate representations of all the sound field programs can be enjoyed on headphones.

  • Page 124: Dab Frequency Information

    GLOSSARY DAB frequency information ■ Band III Note When you select “UK BAND3” in the initial scan operation, this unit scans only within the frequencies marked with an asterisk (*) in the following table (see page 65). Frequency 174.928 MHz 176.640 MHz 178.352 MHz 180.064 MHz...

  • Page 125: Specifications

    The source code is also available on a physical media (such as a CD-ROM) at actual cost. Contact: AV products division, YAMAHA CORPORATION, 10-1 Nakazawa-cho, Hamamatsu 430-8650, Japan In principle, the source code is offered for 3 years from the day of purchase.

  • Page 126: Gnu General Public License

    ■ GNU GENERAL PUBLIC LICENSE Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc. 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. Preamble The licenses for most software are designed to take away your freedom to share and change it.
  • Page 127 This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded.
  • Page 128 In other cases, permission to use a particular library in non-free programs enables a greater number of people to use a large body of free software. For example, permission to use the GNU C Library in non-free programs enables many more people to use the whole GNU operating system, as well as its variant, the GNU/Linux operating system.
  • Page 129 It may happen that this requirement contradicts the license restrictions of other proprietary libraries that do not normally accompany the operating system. Such a contradiction means you cannot use both them and the Library together in an executable that you distribute. You may place library facilities that are a work based on the Library side-by-side in a single library together with other library facilities not covered by this License, and distribute such a combined library, provided that the separate distribution of...

  • Page 130: Satellite Receiver

    LIST OF REMOTE CONTROL CODES TORX CABLE TV RECEIVER TOSHIBA 10003 TRI-VISION 11230, 11269 UNITED CABLE AICHI DENSHI11512 AMSTRAD 11222 AUNA 11230, 11269 US ELECTRONICS AUSTAR 10276 BIRMINGHAM CABLE COMMUNICATIONS CABLE/PVR 10276 COMBINATION BRITISH TELECOM 10003 FRANCE TELECOM11734 CABLE & WIRELESS FREEBOX 11068 MOTOROLA...
  • Page 131 EURIEULT 10885 JAEGER EUROLINE 11251 EUROPHON 10132, 10299 EUROSKY 10114, 10132, K-SAT KAMM 10262, 10299, 10369 KAON EUROSTAR 10818, 10898 KATELCO EUTELSAT 10713 KATHREIN FENNER 10369, 10713 FERGUSON 10711, 11291 FINLUX 10573 FLAIR MATE 10713 11457 FORCE 11194 FORTEC STAR 11017, 11083 FOXTEL 10879, 11356 FRACARRO...
  • Page 132 SKYSAT 10114, 10713 TOPFIELD SKYVISION 11334 10132, 10299 SM ELECTRONIC TOSHIBA 10587, 10713, 11200, 11409 SMART 10132, 10299, 10713, 11113, TRIAD 11157, 11232, TRIAX 11273, 11413 SONY 10282, 10292, 10639, 10847, 10853, 11524, 11558 10132 TT-MICRO STARLITE 10200 TURNSAT STREAM 11848 TWINNER STRONG...
  • Page 133 CANTON 20218 DICK SMITH ELECTRONICS CARAD 20610, 20668, 21037 DIGATRON CARENA 20037, 20455 DIGILINE DIGITAL LIFE 20780, 20872, CARVER 20054, 20170 CASCADE 20009, 20037 CASIO 20037 DIGITOR CATHAY 20037 DIGIX 20037 DIXI CELEBRITY 20000 CELESTIAL 20820, 20821 DMTECH CENTREX 20780 DOMEOS CENTRUM 21037...
  • Page 134 HYPSON 20037, 20264, KENNEDY 20455, 20668, KENNEX 20714, 20715, KIOTA 21037 KITON KNEISSEL HYUNDAI 20860, 20865, 20876, 21152, 21244, 21294 IBERIA 20037 20218, 20264, KONKA 20371 ICES 20218 IIYAMA 20877, 21217 IMPERIAL 20037, 20074, KONTAKT 20370, 20418 KORPEL INDIANA 20037 KOYODA INFINITY 20054...
  • Page 135 PALSONIC 20001, 20037, RADIOLA 20264, 20418, RADIOMARELLI 20698, 20773 PANAMA 20037, 20264 RADIOSHACK 20037, 20178 RADIOTONE 20009, 20037, PANASHIBA 20001 PANASONIC 20037, 20163, 20226, 20250, 20361, 20367, 20516, 20548, 20650, 20853, REALISTIC 21210, 21310 REDIFFUSION 20346, 20361, PANAVISION 20037, 20411 PATHE CINEMA REFLEX 20163...
  • Page 136 X-VIEW ULTRAVOX 20037 XENIUS UNIC LINE 20037, 20455 XLOGIC UNITED 20037, 20714, XORO 20715, 21037 UNIVERSAL 20037 XRYPTON YAMADA YAMAHA YAMISHI YAPSHE YOKAN YOKO APPENDIX-xi ZANUSSI 20264 20074, 20105, ZENITH 20178, 21909 20170, 20200, 20264, 20327, 20346, 20361, 20370, 20411,...
  • Page 137 DICK SMITH ELECTRONICS GRUNDIG 30642 DIGITOR 30642 30642 HANIMEX DUAL 30000, 30041, 30081, 30278, HANSEATIC 30348 DUMONT 30000, 30081, HARLEY DAVIDSON 30104 DYNATECH 30000 HARMAN/KARDON ELBE 30038, 30278 ELCATECH 30072 HARWOOD ELECTROHOME 30037 HEWLETT PACKARD ELECTROPHONIC 30037 HINARI ELIN 30240 ELSAY 30072 ELTA...
  • Page 138 30642 30240 WHITE WESTINGHOUSE 30000, 30041, 30072, 30278, 30043, 30048, 30637 30081, 30348, WORLD 30348 30352 XR-1000 30000, 30072 30348 YAMAHA 30038 30348 YAMISHI 30072, 30278 30000, 30037, YOKAN 30072 30041, 30278, YOKO 30037, 30240 30307, 30637, ZENITH 30000, 30033,...
  • Page 139 DIAMOND 40651, 40768 HARMAN/KARDON DICK SMITH ELECTRONICS 40833, 41483 DIGATRON 41009 HENSS DIGIHOME 40713 DIGITOR 41005 HIMAX DIGITREX 40672 HITACHI 40831 DINAMIC 40788 HITEKER DISNEY 40675 HOEHER DIVIDO 40705 DK DIGITAL 40831 HOME ELECTRONICS DMTECH 41271 DRAGON 40831 HOME TECH INDUSTRIES DREAMX 41151 40833, 41483...
  • Page 140 XENIUS STARLOGIC 41005 XLOGIC STARMEDIA 40818, 41005 STEVISON 41367 XORO STRONG 40713 YAKUMO SUNKAI 40770, 40850 YAMADA SUNSTECH 40831 YAMAHA SUNWOOD 40788, 40898 SUPERVISION 40768 40672 YAMAKAWA 40665, 40872 SYLVANIA 40675 YUKAI SYMPHONIC 40675 ZENITH SYNN 40768 TANDBERG 40713 ZENNOX...
  • Page 141 (TUNER ID2) 70283, 70289, ZENITH 80281 70308, 70309 70229 OTHER AUDIO 70029 ACCESSORIES 70244, 70273 70027, 70029 YAMAHA (iPod) 70097, 70205, YAMAHA (NET/USB) 81982 70524 81467 80158, 80189 80115, 80609 80281, 80609 80189 80189 81455, 81647 80189 80004, 80273 80004 80281...
  • Page 142 YAMAHA ELECTRONICS (UK) LTD. YAMAHA HOUSE, 200 RICKMANSWORTH ROAD WATFORD, HERTS WD18 7GQ, ENGLAND YAMAHA SCANDINAVIA A.B. J A WETTERGRENS GATA 1, BOX 30053, 400 43 VÄSTRA FRÖLUNDA, SWEDEN YAMAHA MUSIC AUSTRALIA PTY, LTD. 17-33 MARKET ST., SOUTH MELBOURNE, 3205 VIC., AUSTRALIA...

Table of Contents
