MODEL 20RTK-23RTK
STAND ON HYDRAULIC TRACK TRENCHER
This machine is designed for digging trenches in "normal" ground of reasonably soft dirt and stones
up to 6" (15cm) in diameter. Ground with larger stones, high clay content, very hard packed, very
dry, or in a frozen condition may be unsuitable for normal trenching. Consider using a backhoe or
other heavier equipment for such conditions.
20RTK - 23RTK OPERATOR'S MANUAL
THE
OPERATOR'S MANUAL
TRENCHER INTENDED USE
TABLE OF CONTENTS
8/31/18
2
3
4
6
7
7
8
9
9
10
11
12
13
14
16
17
18
19
20
Page 1 of 20
Advertisement
Table of Contents
Related Manuals for Barreto 20RTK
Summary of Contents for Barreto 20RTK
-
Page 1: Table Of Contents
JUMP STARTING ENGINE WITH ELECTRIC STARTER GROUND TRANSPORT OF THE TRENCHER EMERGENCY TOWING ROAD TRANSPORT OF THE TRENCHER OPERATOR PREPARATION DETERMINE LOCATION OF UNDERGROUND UTILITIES WORK SITE ASSESSMENT CONTACT WITH UNDERGROUND UTILITIES INDEX 20RTK – 23RTK OPERATOR’S MANUAL 8/31/18 Page 1 of 20... -
Page 2: Lubrication Requirements
LUBRICATION REQUIREMENTS Grease at the intervals indicated per the illustration of grease lubrication points. There is also a grease diagram decal on the machine. 20RTK – 23RTK OPERATOR’S MANUAL 8/31/18 Page 2 of 20... -
Page 3: Safety Messages
This machine is intended for the operator to stand on. If at any time it becomes unsafe, the operator must step off immediately. Read this manual and study ALL decals on the trencher before operating the trencher. 20RTK – 23RTK OPERATOR’S MANUAL 8/31/18 Page 3 of 20... -
Page 4: Safety Instructions Overview
Serious injury or death will result by operator contact with the moving chain. The digging chain can suddenly drag the machine forward if the trencher is forced too quickly into the ground or catches on a buried object. 20RTK – 23RTK OPERATOR’S MANUAL 8/31/18 Page 4 of 20... - Page 5 WARNING: Muffler and engine get hot enough to cause serious burns. For the safety of yourself and others, allow enough time for the engine, muffler, and the hydraulic fluid to cool completely before performing any cleaning or maintenance. 20RTK – 23RTK OPERATOR’S MANUAL 8/31/18 Page 5 of 20...
-
Page 6: Battery & Electric Starter Safety Instructions
WARNING: If trencher should fall it would crush anybody under it. We recommend having a fire extinguisher suitable for petrol fires in the operating area. Attachments can change the center of mass and machine operations. Use only Barreto attachments. BATTERY & ELECTRIC STARTER SAFETY INSTRUCTIONS Shield entire face, especially your eyes, and wear rubber gloves to avoid acid burns whenever doing anything with the battery. -
Page 7: Trencher Operating Instructions
During normal operation you will hear the relief valve working. 7. PARKING BRAKE: It is located behind the left hand track motor. Move the handle down to engage the brake, and up to disengage it. 20RTK – 23RTK OPERATOR’S MANUAL 8/31/18 Page 7 of 20... -
Page 8: Engine Start Up Procedure
Reduce the engine speed if the hydraulic pump whines. Pump noise may indicate a lack of hydraulic fluid flow that could damage the pump. For frequent starts below 18°F consult your Barreto Manufacturing, Inc. dealer. 20RTK – 23RTK OPERATOR’S MANUAL... -
Page 9: Trenching Procedure
Do not overload engine. If the engine lugs down or the digging chain slows down, raise the boom until speed increases, then continue lowering the boom slowly. Do not attempt to force boom down faster than digging chain can remove material. 20RTK – 23RTK OPERATOR’S MANUAL 8/31/18 Page 9 of 20... -
Page 10: Shut Down Procedure
WARNING: Muffler and engine get hot enough to cause serious burns. For the safety of yourself and others, allow enough time for the engine, muffler, and the hydraulic fluid to cool completely before performing any cleaning or maintenance. 20RTK – 23RTK OPERATOR’S MANUAL 8/31/18 Page 10 of 20... -
Page 11: Jump Starting Engine With Electric Starter
4. Disconnect the cables in reverse order of connection and cover each jumper cable terminal. To avoid sparks near the battery, never disconnect the red jumper cable without first disconnecting the black jumper cable. 20RTK – 23RTK OPERATOR’S MANUAL 8/31/18 Page 11 of 20... -
Page 12: Ground Transport Of The Trencher
Navigation on inclines should be especially slow and turns very gradual. A 20° maximum incline is allowed. Honda engines have an Oil Alert system that will automatically stop the engine if tipped more than 20°. 20RTK – 23RTK OPERATOR’S MANUAL 8/31/18 Page 12 of 20... -
Page 13: Emergency Towing
3. Secure the boom in the up position with a strap from the boom end to the handlebars. 20RTK – 23RTK OPERATOR’S MANUAL 8/31/18 Page 13 of 20... -
Page 14: Road Transport Of The Trencher
ROAD TRANSPORT OF THE TRENCHER The BEST way to transport the trencher over roads is with the BARRETO E4X6 TILT BED TRAILER and the optional 00340 TIE-DOWN KIT. Refer to the following checklist before towing: • Towing vehicle should have a 2" (5cm) ball. Be sure it is in good repair and securely fastened to the vehicle. - Page 15 WARNING: If trencher should fall it would crush anybody under it. 4. Chain or strap the trencher to the truck using the two chain loops at the rear of the trencher lower body and D-ring on front of trencher. 20RTK – 23RTK OPERATOR’S MANUAL 8/31/18 Page 15 of 20...
-
Page 16: Operator Preparation
It is important to select a device that is adequate and appropriate for your specific work environment since the peak noise level varies. A local environmental noise specialist may help you to determine the level of hearing protection required. 20RTK – 23RTK OPERATOR’S MANUAL 8/31/18 Page 16 of 20... -
Page 17: Determine Location Of Underground Utilities
For areas not represented by One-Call Systems International, contact the appropriate utility companies to locate and mark the underground installations. Do not rely on visual evidence of underground utilities such as manhole covers or electrical drop boxes…CALL! 20RTK – 23RTK OPERATOR’S MANUAL 8/31/18 Page 17 of 20... -
Page 18: Work Site Assessment
This is intended for your safety and must be maintained in good functional condition. Contact your dealer if anything on the trencher does not function properly. 20RTK – 23RTK OPERATOR’S MANUAL 8/31/18 Page 18 of 20... -
Page 19: Contact With Underground Utilities
Fiber optic cables: If you think that you may have severed a fiber optic cable, do not touch or even look at the ends of it. WARNING: Fiber optic cables convey laser light that can injure your eyesight. Call 911 for help. 20RTK – 23RTK OPERATOR’S MANUAL 8/31/18 Page 19 of 20... -
Page 20: Index
UNDERGROUND UTILITIES, 17, 18, 19 LOADING, 14, 15 UNLOADING, 14 LUBRICATION, 2 VIBRATION EMISSION DATA, 16 NAVIGATING, 5, 12, 13, 14, 15 WORK SITE, 18, 19 NOISE LEVEL DATA, 16 20RTK – 23RTK OPERATOR’S MANUAL 8/31/18 Page 20 of 20...
Need help?
Do you have a question about the 20RTK and is the answer not in the manual?
Questions and answers

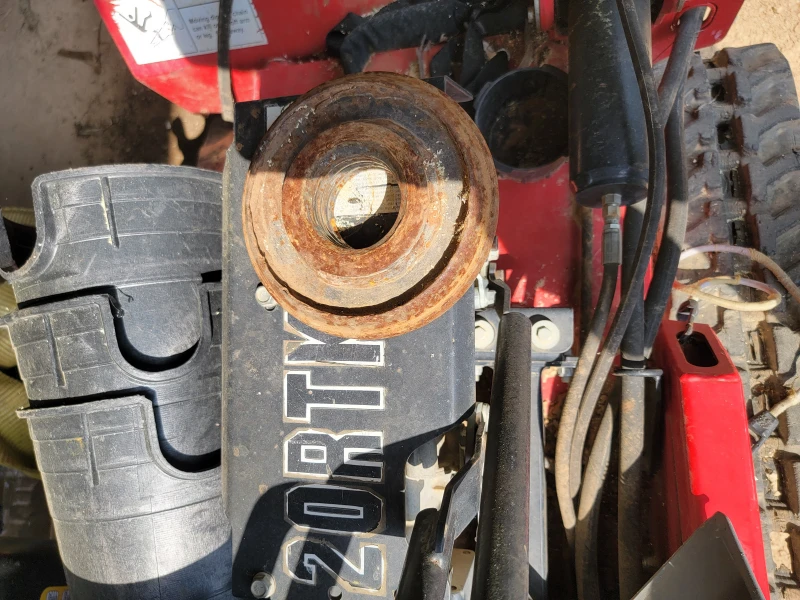

I need this part replaced in my machine so I can get it operational again. I need that plus the bolt and washers that go through it
