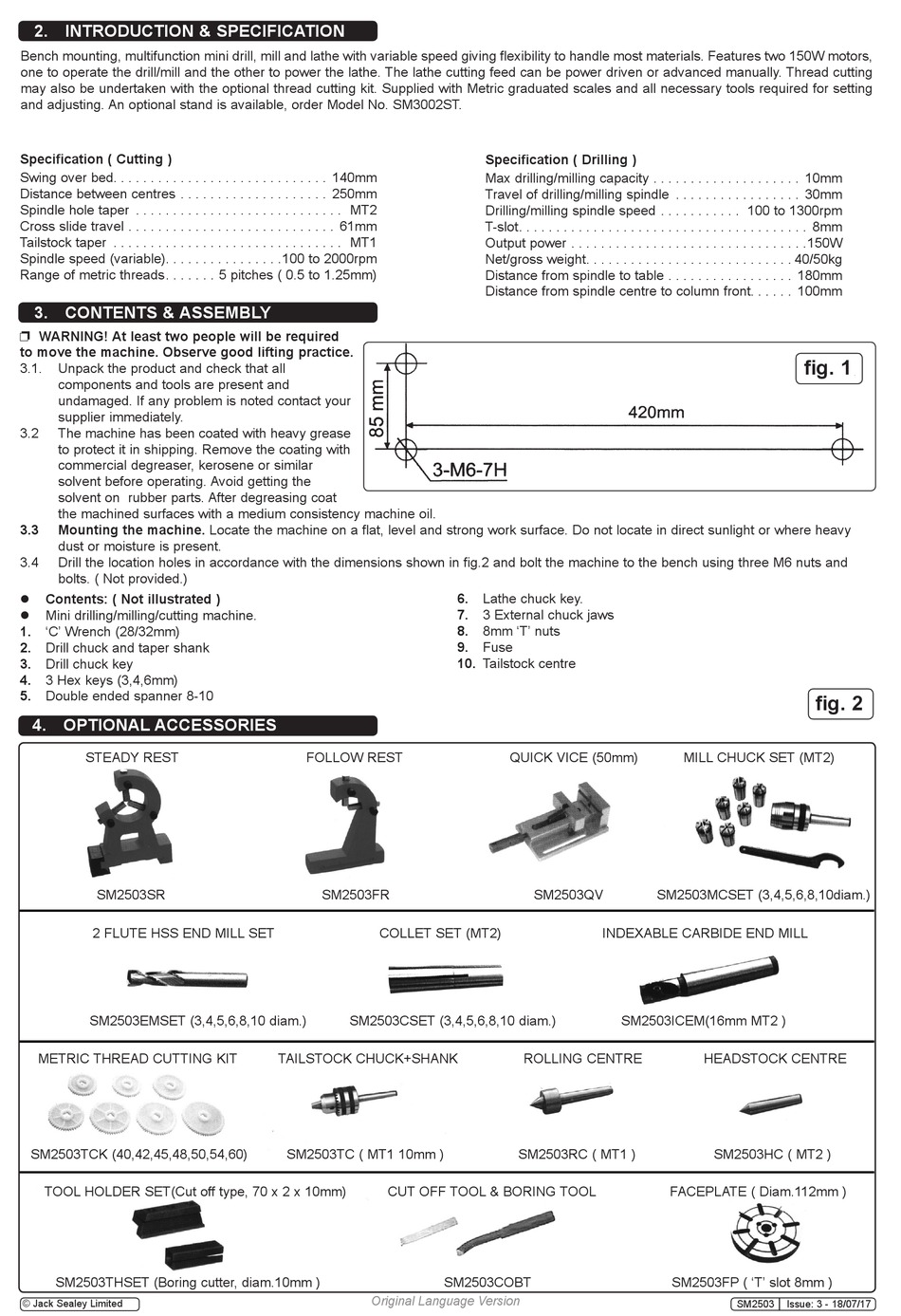

2. INTRODUCTION & SPECIFICATION
Bench mounting, multifunction mini drill, mill and lathe with variable speed giving flexibility to handle most materials. Features two 150W motors,
one to operate the drill/mill and the other to power the lathe. The lathe cutting feed can be power driven or advanced manually. Thread cutting
may also be undertaken with the optional thread cutting kit. Supplied with Metric graduated scales and all necessary tools required for setting
and adjusting. An optional stand is available, order Model No. SM3002ST.
Specification ( Cutting )
Swing over bed. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140mm
Distance between centres . . . . . . . . . . . . . . . . . . . . 250mm
Spindle hole taper . . . . . . . . . . . . . . . . . . . . . . . . . . . . MT2
Cross slide travel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61mm
Tailstock taper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MT1
Spindle speed (variable). . . . . . . . . . . . . . . .100 to 2000rpm
Range of metric threads. . . . . . . 5 pitches ( 0.5 to 1.25mm)
3. CONTENTS & ASSEMBLY
WARNING! At least two people will be required
to move the machine. Observe good lifting practice.
3.1.
Unpack the product and check that all
components and tools are present and
undamaged. If any problem is noted contact your
supplier immediately.
3.2
The machine has been coated with heavy grease
to protect it in shipping. Remove the coating with
commercial degreaser, kerosene or similar
solvent before operating. Avoid getting the
solvent on rubber parts. After degreasing coat
the machined surfaces with a medium consistency machine oil.
3.3
Mounting the machine. Locate the machine on a flat, level and strong work surface. Do not locate in direct sunlight or where heavy
dust or moisture is present.
3.4
Drill the location holes in accordance with the dimensions shown in fig.2 and bolt the machine to the bench using three M6 nuts and
bolts. ( Not provided.)
Contents: ( Not illustrated )
Mini drilling/milling/cutting machine.
1.
'C' Wrench (28/32mm)
2.
Drill chuck and taper shank
3.
Drill chuck key
4.
3 Hex keys (3,4,6mm)
5.
Double ended spanner 8-10
4. OPTIONAL ACCESSORIES
STEADY REST
SM2503SR
2 FLUTE HSS END MILL SET
SM2503EMSET (3,4,5,6,8,10 diam.)
METRIC THREAD CUTTING KIT
SM2503TCK (40,42,45,48,50,54,60)
TOOL HOLDER SET(Cut off type, 70 x 2 x 10mm)
SM2503THSET (Boring cutter, diam.10mm )
© Jack Sealey Limited
FOLLOW REST
SM2503FR
COLLET SET (MT2)
SM2503CSET (3,4,5,6,8,10 diam.)
TAILSTOCK CHUCK+SHANK
SM2503TC ( MT1 10mm )
CUT OFF TOOL & BORING TOOL
SM2503COBT
Original Language Version
Specification ( Drilling )
Max drilling/milling capacity . . . . . . . . . . . . . . . . . . . . 10mm
Travel of drilling/milling spindle . . . . . . . . . . . . . . . . . 30mm
Drilling/milling spindle speed . . . . . . . . . . . 100 to 1300rpm
T-slot. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8mm
Output power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .150W
Net/gross weight. . . . . . . . . . . . . . . . . . . . . . . . . . . . 40/50kg
Distance from spindle to table . . . . . . . . . . . . . . . . . 180mm
Distance from spindle centre to column front. . . . . . 100mm
6.
Lathe chuck key.
7.
3 External chuck jaws
8.
8mm 'T' nuts
9.
Fuse
10. Tailstock centre
QUICK VICE (50mm)
SM2503QV
INDEXABLE CARBIDE END MILL
SM2503ICEM(16mm MT2 )
ROLLING CENTRE
SM2503RC ( MT1 )
fig. 1
fig. 2
MILL CHUCK SET (MT2)
SM2503MCSET (3,4,5,6,8,10diam.)
HEADSTOCK CENTRE
SM2503HC ( MT2 )
FACEPLATE ( Diam.112mm )
SM2503FP ( 'T' slot 8mm )
SM2503
Issue: 3 - 18/07/17
