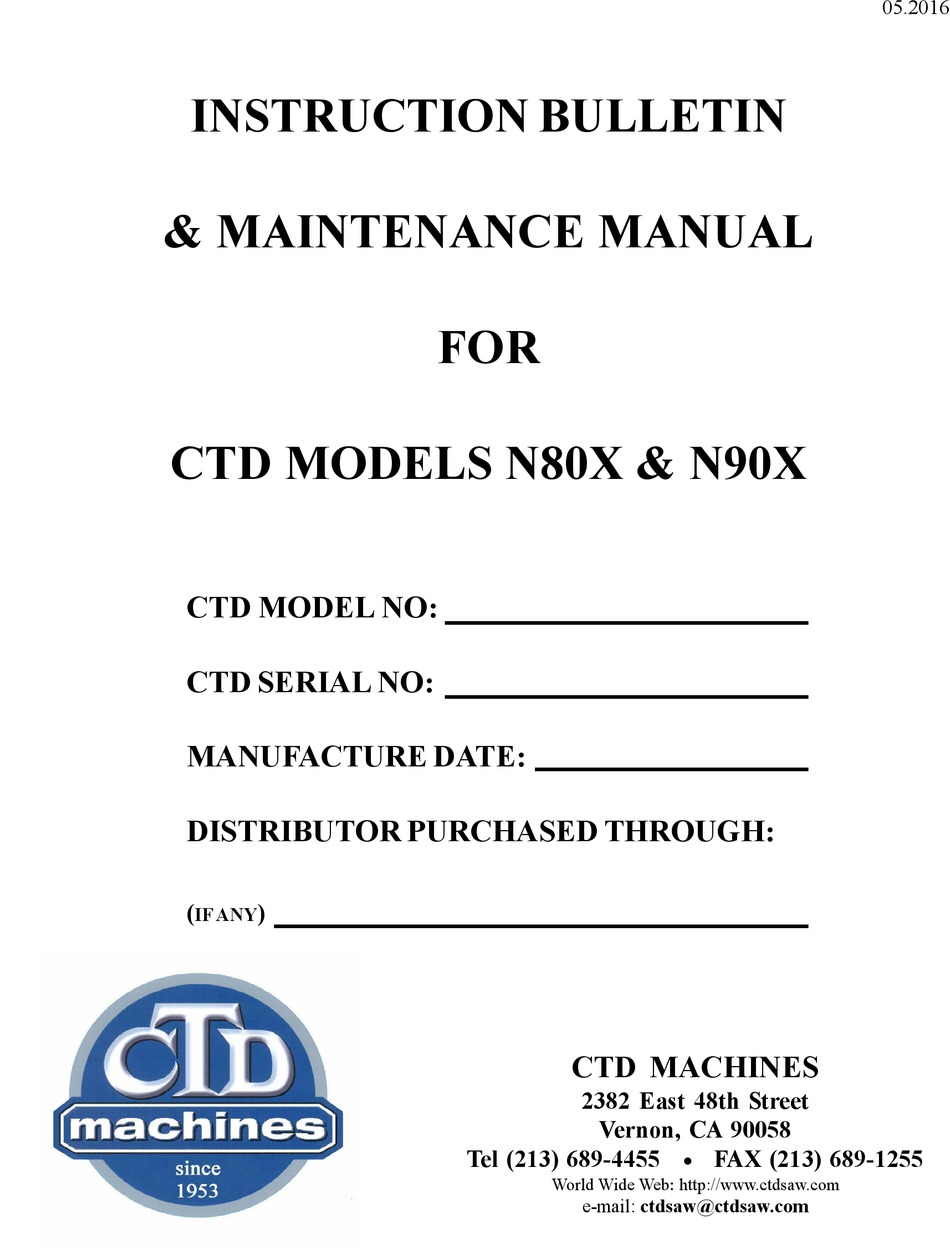

INSTRUCTION BULLETIN
& MAINTENANCE MANUAL
CTD MODELS N80X & N90X
CTD MODEL NO:
CTD SERIAL NO:
MANUFACTURE DATE:
DISTRIBUTOR PURCHASED THROUGH:
(
)
IF ANY
FOR
CTD MACHINES
2382 East 48th Street
Vernon, CA 90058
Tel (213) 689-4455
World Wide Web: http://www.ctdsaw.com
e-mail: ctdsaw@ctdsaw.com
FAX (213) 689-1255
05.2016
Advertisement
Table of Contents
Related Manuals for CTD N80X
Summary of Contents for CTD N80X
- Page 1 05.2016 INSTRUCTION BULLETIN & MAINTENANCE MANUAL CTD MODELS N80X & N90X CTD MODEL NO: CTD SERIAL NO: MANUFACTURE DATE: DISTRIBUTOR PURCHASED THROUGH: IF ANY CTD MACHINES 2382 East 48th Street Vernon, CA 90058 Tel (213) 689-4455 FAX (213) 689-1255 ...
-
Page 2: Table Of Contents
Cutting Capacities Staggered Saw Blade/Toe-Notch Configuration Model N80X: 4-1/2” (114mm) x 4-1/2” (114mm) Deep x 3” (76mm) High Model N90X: 16” (406mm) Blade Capacity; 6” (152mm) x 6” (152mm) Deep x 4” (102mm) High 18” (457mm) Blade Capacity; 7” (178mm) x 7” (178mm) Deep x 4” (102mm) High Note: With special configuration up to a 7-1/4”... -
Page 3: Installation And Set-Up
Installation and Set Up: The Model N80X uses two 2 H.P. 3 Phase, 3450 RPM, 60 Hz TEFC Motors on a NEMA 56 Frame. The Model N90X uses two 3 H.P. 3 Phase, 1725 RPM, 60 Hz TEFC Motors on a NEMA 182T Frame. - Page 4 Blade Installation: For both Model N80X & N90X: Before setting blades on spindle, disconnect power. Supply air to the machine so that blades rise to the top of the stroke. Remove front blade guard by loosening side guard wing nuts or bolts and then remove two top blade guard wing nuts.
- Page 5 Diagram No. 1 Mitre Configuration Notching Configuration Picture “A” Diagram No. 2 Slinger Blade Flange Spindle Nut Spindle Picture “B” Spindle Housing...
- Page 6 Belt Tension Adjustment for N80X: The belt tension on the N80X is controlled by a spring loaded motor mount pivot plate. A compression spring is set between two spring supports--one located through the Center Brace, P/N 8C40, and the other on the motor mount pivot plate.
- Page 7 Attaching Measuring System to Machine for Mitre Cutting on Models N80X and N90X: (see specific instructions for the Measuring System purchased) For: FEX, OMD, RAB, OMD/RAB Combination Gages, or PAS 1. Place long measuring gage (P/N 15BM223) on table with measuring tape facing up. Bolt through Front Fence Angle, P/N 15M36R with 3/8-16 bolts provided.
-
Page 8: Electrical Installation
NEMA 56Z Frame. The N90X uses two 3 H.P. or 5 H.P. three phase 1725 RPM 60 HZ TEFC motors on a 182 Frame. CTD uses a speed up drive so that the blade will run at approximately 3400 RPM for the N80X and 2800 RPM for the N90X.. - Page 9 Motor Load Amperes Model No. Motor Size 230 Volt 440 Volt N80X 2 H.P., 3 Phase 3450 5.4 amps 2.7 amps N80X 2 H.P., 1 Phase 3450 12.5 amps N80X 3 H.P., 3 Phase 3450 8.6 amps 4.3 amps N90X 3 H.P., 3 Phase...
-
Page 10: Air Pneumatics
N80X & N90X Air/Pneumatic System: The air pneumatic system on the N80X and N90X is simple to use and understand, and easy to operate. The main components of the air system are shown below in the Air Circuit Piping Diagram. The system operates by depressing the Foot Valve, P/N B3P71. - Page 11 An operating pressure of 75 PSI is required. (This is set at the factory.) Air Filter/Regulator Trouble Shooting the Pneumatic System for the N80X & N90X Cut-Off Saw: If there is no control over the power feed stroke: Replace either the Upstroke Flow Control Valve, or the Downstroke Control Valve P/N 9B3P65.
-
Page 12: Safety Instructions
Safety Instructions to the Operator: 1. KNOW YOUR CTD SAW. Read this instruction manual carefully. Learn the operation, application, and limitations, as well as the specific potential hazards peculiar to this machine. 2. Avoid accidental starting. Make sure switch is OFF before plugging in power cord. A Dual Magnetic Starter is provided to give the operator added protection. - Page 13 Mitre Cutting: (see Diagram No. 8) A fixed Double Mitre Saw, such as the N80X and N90X operates by making two 45 cuts at one time. The machine “V” notches the piece of material between the two blades. To make the first cut on a stick length;...
- Page 14 Vertical Air Clamps should be installed on the Model N80X and N90X to hold material securely. They are controlled by a 3-Way Valve mounted above the right motor on the N90X, and above the slide on the N80X. When the machine is in the rest position, the 3-Way Valve shuts the air supply to the clamps.
- Page 15 Cutting Plastic: Plastic can be cut as easily as wood on the N80X and N90X models. However, because of its elastic properties, the material can deflect as the blades pass through. Therefore it is important to clamp the material as close as possible to the blade and support it by use of fixtures.
-
Page 16: Preventative Maintenance
Length of Stroke Adjustment: The N80X and N90X are unique in that the travel of the air cylinder can be adjusted to eliminate extra blade movement. By adjusting the upstop bumper located above the Slide, P/N 9A06 for the N90X, and P/N 8C01 for N80X, the blades will be lowered closer to the work. -
Page 17: Repair And Service
A. For excessive belt wear. B. Make sure motor pulley set screws are tight. Repair and Service: Always use CTD factory authorized replacement parts and consult factory before making any repairs or adjustments which may be unclear. N80X and N90X Spindle Assembly Parts 1. - Page 18 18. Replace housing on spindle Plate (N90X), or Slide (N80X) with four hex cap screws. 19. Place belts around motor pulley and tighten (see Belt Tension instructions on Page No. 6 for N90X).
-
Page 19: N80 Blade Guard And Stand Exploded View
-19-... -
Page 20: N80 Base Exploded View
N80 Exploded View Notching Configuration -20-... - Page 21 N 8 0 E x p lo d e d V ie w P a r t s L is t -21-...
-
Page 22: N90 Blade Gard And Stand Exploded View
N90 Floor Stand and Blade Guard Exploded View -22-... -
Page 23: N90 Slide Exploded View
-23-... -
Page 24: N90 Splindle Exploded View
-24-... -
Page 25: Parts List
Dust Collector Panel 9M59 Lower Outer Blade Guard (2 required) Electrical and Motor Parts: 2B6S07 2 H.P. 3 Phase Motor, 56Z Frame, N80X 2B6S08 3 H.P. 3 Phase Motor, 56Z Frame, N80X 2B6S05 2 H.P. 1 Phase Motor, 56Z Frame, N80X 9B6S11 3 H.P. - Page 26 (at CTD’s option) of the part which is defective in materials or workmanship for a period of one (1) year from the date of shipment to the original purchaser of the equipment. CTD’s liability to the purchaser, whether for warranties, negligence, or otherwise, shall not in any way include consequential damages or costs of removing or reinstalling the products.
