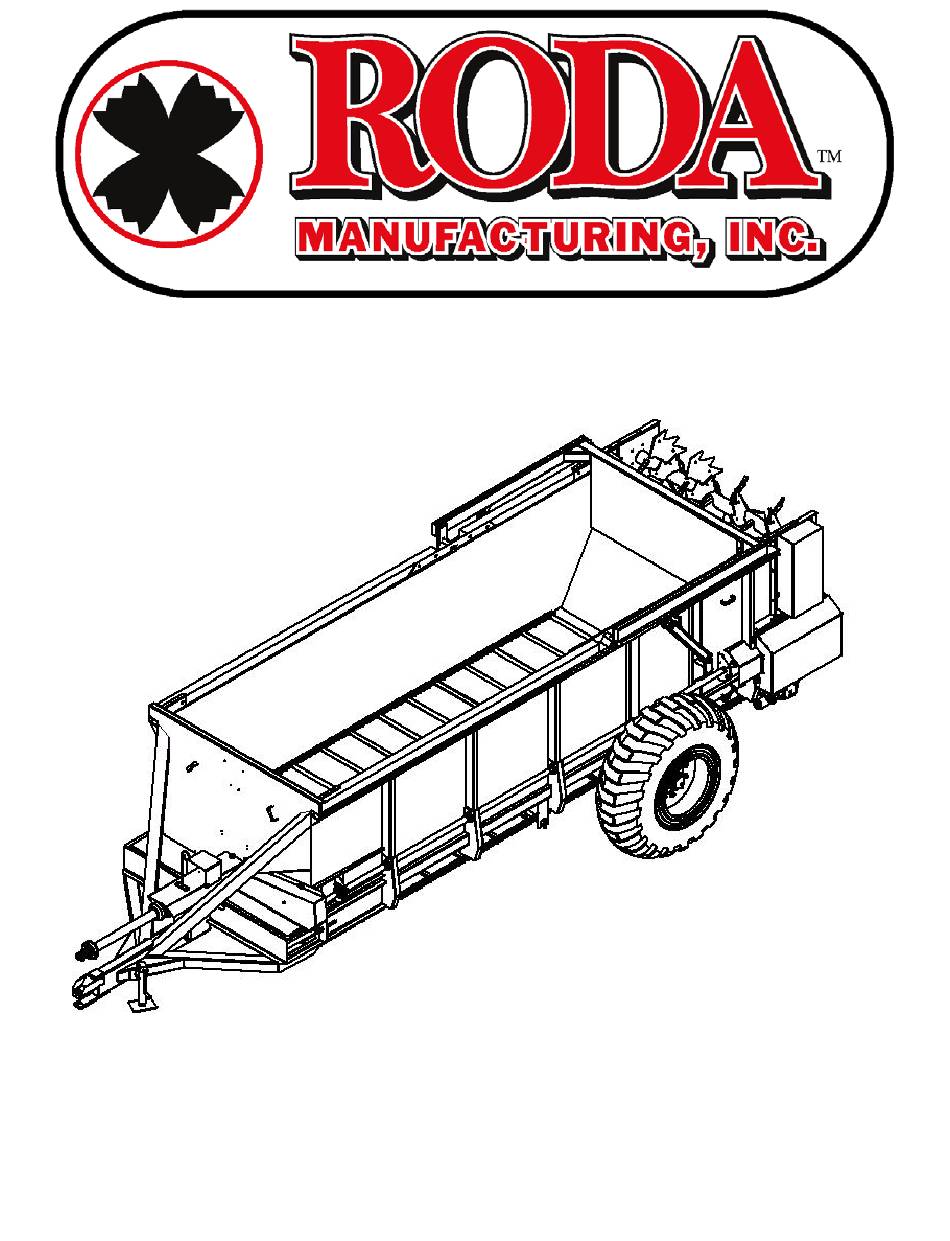

- Page 1 810 BUSHEL MANURE SPREADER 2009 2009 Model Year2006-2008 Model Years RODA MANUFACTURING 338 MAIN ST. HULL, IA. 51239 712-439-2366 WWW.RODAMFG.COM...
-
Page 3: Table Of Contents
INTRODUCTION Thank you for purchasing a Roda Spreader. We appreciate your business. Here at Roda, we do our best to provide you with a rugged and durable unit, which is easy to maintain. If you have any suggestions for any of our products, please let us know. -
Page 4: Safety
SAFETY UNDERSTAND SAFETY WORDS AND SYMBOLS THIS SAFETY ALERT SYMBOL is used in this manual whenever personal safety is involved and means ATTENTION! BECOME ALERT! It stresses an attitude of “HEADS UP” for safety. Read and understand all pages in this manual that bear this safety symbol and…TAKE TIME TO BE CAREFUL! The Signal Word or Message areas of all safety decals are color coded to indicate the level of hazard. - Page 5 SAFETY OPERATING SAFETY PRECAUTIONS WHEN THE SPREADER IS IN OPERATION, IT HAS MANY MOVING PARTS, WHICH COULD CAUSE SEVERE INJURY OR DEATH TO PERSONS COMING IN CONTACT WITH THESE PARTS. TO HELP AVOID SERIOUS ACCIDENTS, THE FOLLOWING GUIDELINES MUST BE FOLLOWED. •...
-
Page 6: Safety Decals & Location
• REPLACE ANY DAMAGED OR WORN DECAL. Once any part of a decal becomes non-readable, it should be replaced. Replacement decals may be ordered through your dealer or Roda Manufacturing. • WHEN REPLACING DECALS, be sure the surface area is clean and dry, peel the backing off the decal, and apply to the unit. - Page 7 SAFETY SAFETY DECALS 10.) 11.)
- Page 8 SAFETY SAFETY DECAL LOCATION MODEL AND SERIAL NUMBER INFORMATION is located in the upper center area of the front panel. This is the number to give service personnel for parts and service questions.
-
Page 9: Manure Spreader Safety
MANURE SPREADER SAFETY THERE ARE INHERENT HAZARDS ASSOCIATED WITH THE OPERATION OF A MANURE SPREADER. FOR YOUR SAFETY: • ONLY PROPERLY INSTRUCTED PEOPLE SHOULD OPERATE THE SPREADER. Do not allow children or inexperienced persons to operate spreader. • KEEP ALL GUARDS AND SHEILDS IN PLACE. Moving parts can crush and dismember. •... - Page 10 THERE ARE ADDITIONAL HAZARDS ASSOCIATED WITH THE SERVICE AND MAINTENENCE OF YOUR SPREADER. FOR YOUR SAFETY: • INSPECT when first delivered and regularly thereafter; that all connections and bolts are tight and secure before operating. • RETIGHTEN ALL WHEEL BOLTS after the first hour of towing. Check periodically thereafter. •...
-
Page 11: Pre-Operation
PRE-OPERATION IMPORTANT: READ BEFORE OPERATING SPREADER. IT IS THE RESPONSIBILITY OF THE OWNER TO MAKE SURE THE SPREADER IS SET UP PROPERLY. THE FOLLOWING RECOMMENDATIONS SHOULD BE HELPFUL. • CHECK FOR PROPER ASSEMBLY, adjustment and lubrication. Check to be sure all bolts and setscrews are tight. -
Page 12: Lubrication
WORKING ON THIS MACHINE! It is extremely important to properly lubricate your new RODA machine before it is used for the first time. If the mechanical drive components of your unit are not protected from shock and frictional abrasion, the wear rate of these components will be vastly accelerated and their life span will be drastically reduced. -
Page 13: Inspection & Adjustments
• SHIELDING to be sure all shielding is in place and functioning properly. Replace all damaged or missing shielding immediately-Contact your nearest dealer or the Roda parts/service dept. for more information. Check bolts and Set Screws after a few hours of use and each month thereafter, and tighten if necessary. -
Page 14: Spreader Operation
If apron is loose, remove one link from each side of that apron chain assembly and readjust to tension as shown. CAUTION: Over tightening can cause premature failure of the drive components. SPREADER OPERATION ALWAYS REFER TO THE OPERATING SAFETY PRECAUTIONS AND SAFETY DECAL SECTIONS OF THIS MANUAL BEFORE OPERATING THIS SPREADER LOADING •... - Page 15 OPERATION • BEFORE OPERATING, BE SURE NO ONE IS NEAR THE SPREADER AND THAT THE DISCHARGE AREA IS CLEAR OF ALL OBJECTS OR PERSONS THAT COULD BE HARMED IF MATERIAL WAS DISCHARGED! • WITH THE VEHICLE STOPPED and the engine throttled down, engage the apron and beater levers. •...
-
Page 16: Frame And Shields Breakdown
FRAME AND SHIELDS BREAKDOWN... - Page 17 PART NUMBER DESCRIPTION F&S/QTY. 810001 810 MAIN FRAME 810021 FRONT SIDE BOARD 810022 BACK SIDE BOARD 810038 810 PTO SHAFT SHIELD 610006 FLOW CONTROL VALVE COVER 610081 HYDRAULIC HOSE HOLDER 810011 810 GEARBOX CHAIN SHIELD 610011-A SHIELD EXTENSION 810007 FRONT SIDE SHAFT SHIELD...
-
Page 18: Apron Drive Breakdown
APRON DRIVE BREAKDOWN... - Page 19 APRON DRIVE PARTS LIST APRON ITEM NO. PART NUMBER DESCRIPTION BREAKDOWN/QTY. 610027 FRONT RUBBER SEAL 610028 APRON PIPE 610073 SHAFT COVER 610074 STRAP FOR FRONT RUBBER SEAL 610078 WORM GEAR MOUNT 610079 HYDRAULIC MOTOR BRACE 810014 1" WEB TIGHTENER SHAFT, 38" 810017 2"...
-
Page 20: Front And Side Driveline Breakdown
FRONT & SIDE DRIVELINES BREAKDOWN... - Page 21 FRONT & SIDE DRIVELINES PARTS LIST FRONT & SIDE ITEM NO. PART NUMBER DESCRIPTION DRIVELINES/QTY. 810015-A SIDE SHAFT 810039 810 PTO SHAFT 610013 #80 PTO DRIVE CHAIN 610029 48" PTO W/CLUTCH PACK COUPLER, UNIVERSAL JOINT 1-1/4" ROUND 610034 TO 1-1/4" ROUND 610099...
-
Page 22: Beater Panel Breakdown
BEATER PANEL BREAKDOWN... - Page 23 BEATER PANEL PARTS LIST ITEM Beater PART NUMBER DESCRIPTION Panel/QTY. 810001 810 MAIN FRAME 810002 LEFT BEATER PANEL 810003 RIGHT BEATER PANEL 810018 810 BOTTOM BEATER 810019 810 MIDDLE BEATER 810026 2" PILLOW BLOCK BEARING MOUNT 810029 GEARBOX CHAIN GUARD...
-
Page 24: Slop Gate Breakdown
SLOP GATE BREAKDOWN ITEM NO. PART NUMBER DESCRIPTION QTY. 810004 SLOP GATE 810032 LOWER SLOP GATE PLASTIC 810012 SLOP GATE PIVOT BRACKET 810041 UPPER SLOP GATE PLASTIC 810013 SLOP GATE PIN 810036 SLOP GATE PIVOT WASHER B200240ABAAA07A HYD CYLINDER, 2" BORE 24" STROKE 610023 CYLINDER PIN KIT 810050... -
Page 25: Hub City Gearbox Breakdown
HUB CITY GEARBOX BREAKDOWN ITEM PART NUMBER DESCRIPTION QTY. 610076-21 CASTING BODY 610076-22 END CAP W/O HOLE 610076-23 END CAP W/ HOLE 610076-24 END CAP W/ BOSS AND HOLE 610076-25 BEVEL GEAR 610076-26 THRUST BEARING 610076-27 LONG DRIVE SHAFT 610076-28 SHORT DRIVE SHAFT 610076-29 3/4-16 UNF LOCKING JAM NUT... -
Page 26: Wheel And Hub Breakdown
WHEEL AND HUB BREAKDOWN... - Page 27 WHEEL AND HUB PARTS LIST ITEM NO. PART NUMBER DESCRIPTION QTY. LS8241U-16 SPINDLE FOR 881 HUB SL-43605 GREASE SEAL #43605 SA KOYO-218248 INSIDE BEARING #HM218248 KOYO-218210 OUTSIDE BEARING RACE #HM212011 MH-881 873 HUB MACHINED CASTING KOYO-212011 OUTSIDE BEARING RACE #HM212011 KOYO-212049 OUTSIDE BEARING #HM212049 FW-2.00...
-
Page 28: Worm Gear Breakdown
WORM GEAR BREAKDOWN... - Page 29 WORM GEAR BREAKDOWN PARTS LIST ITEM N O . P ART N UM BER DESC RIPTIO N Q TY. R ETAIN IN G RIN G , EXT 203293 1.00 SH FT P LUG , 1/2-14 N PT 400300 SC H D W /3M EN D C AP, W 26231 C P-2.312-.313 D.# 0049...
-
Page 30: Apron Hydraulics Breakdown
APRON HYDRAULICS BREAKDOWN 1/2" HYD HOSE ITEM NO. PART NUMBER DESCRIPTION QTY. FC-51 VALVE, FLOW CONTROL W25SDA008030 WORM GEAR DRIVE 101-1014 HYD MOTOR, EATON 08U-R70 1/2" HOSE END, 7/8-14, M-"O" RING, ELB, SWVL FC-10 CHECK VALVE, 7/8-14, "O" RING 6803-10-10-10 TEE, 7/8-14, 2 M-FLARE x M-"O"... -
Page 31: Slop Gate Hydraulics Breakdown
SLOP GATE HYDRAULICS BREAKDOWN 3/8" HOSE ITEM PART NUMBER DESCRIPTION QTY. 8010-15 PIONEER TIP, 3/4-16, M 06U-R68 3/8" HOSE END, 3/4-16, M-"O" RING, ELB, SWVL 2603-6-6-6 TEE, 9/16-18, 2 M-FLARE 06U-606 3/8" HOSE END, 9/16-18, F-FLARE, STR, SWVL 06U-P08 3/8" HOSE END, 3/4-16, M-"O" RING, STR, RGD HYD CYLINDER, 2"... -
Page 32: Limited Warranty
Roda Manufacturing Incorporation warrants, in accordance with the provisions below, to the original purchaser for the period of (12) months from the date of delivery of a Roda machine that the machine is free from defects in material or workmanship. Roda’s obligation under this warranty is to repair or replace, at Roda’s election, without charge and at the place of business of a dealer authorized to handle Roda machinery,... -
Page 34: Warranty Registration
Roda Manufacturing Incorporation warrants, in accordance with the provisions below, to the original purchaser for the period of (12) months from the date of delivery of a Roda machine that the machine is free from defects in material or workmanship. Roda’s obligation under this warranty is to repair or replace, at Roda’s election, without charge and at the place of business of a dealer authorized to handle Roda machinery, any part or parts of the machine which, in the judgment of Roda, prove to be defective.
