Toro MR2 Owner's Manual

Super mini compact full range & class d amplifiers
Hide thumbs

Advertisement

Quick Links

Download this manual

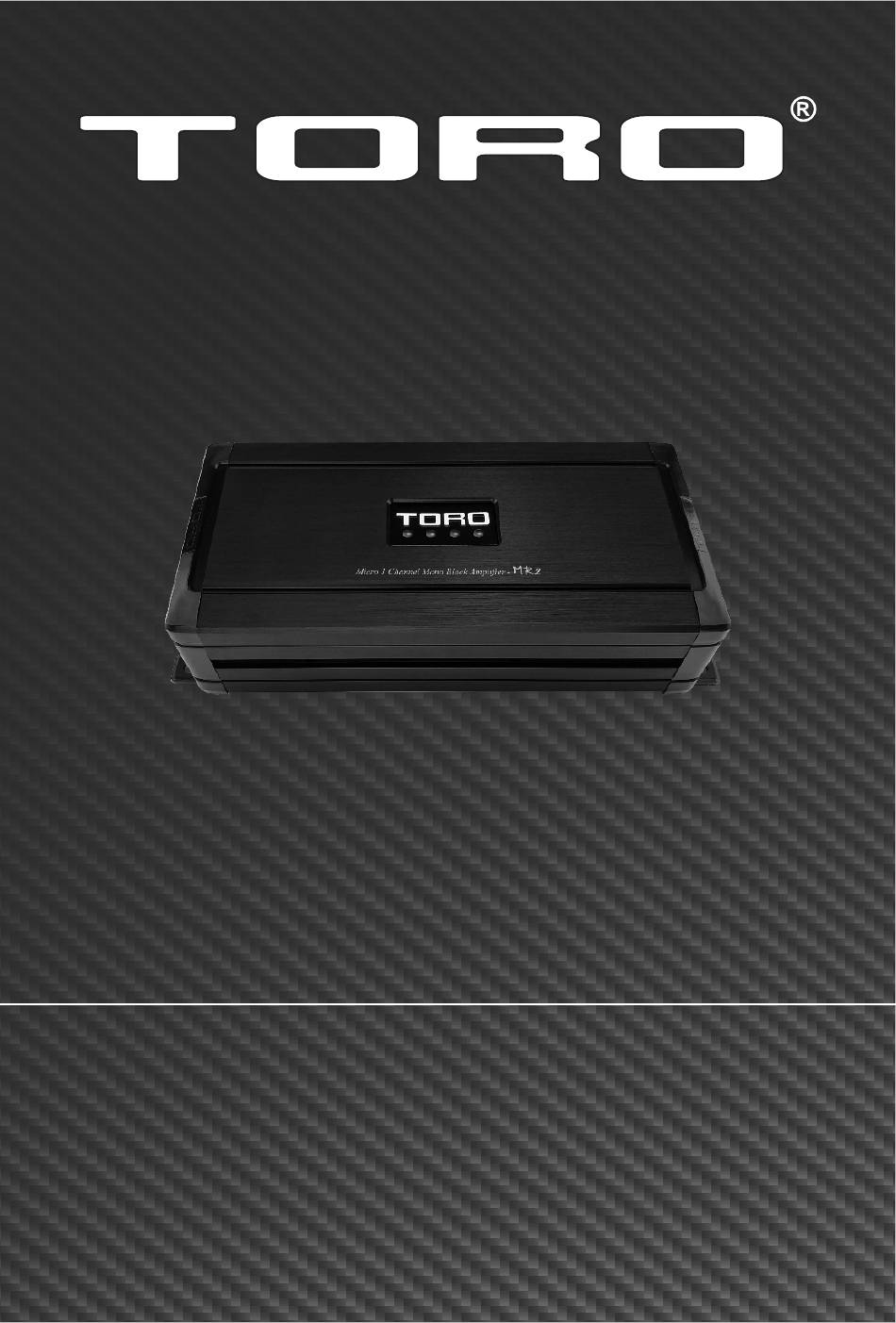

M i c r o Ra g e A m p l i f i e r s
MR2
MRX2
MRX4
S
COMPACT FULL RANGE & CLASS D AMPLIFIERS
UPER MINI
Owners Manual
Please read through this manual to familiarize yourself with your new amplifier. Should your TORO
AUDIO mobile amplifier ever require service, you will need to have the original dated receipt.

Advertisement

loading

Related Manuals for Toro MR2

Summary of Contents for Toro MR2

  • Page 1 COMPACT FULL RANGE & CLASS D AMPLIFIERS UPER MINI Owners Manual Please read through this manual to familiarize yourself with your new amplifier. Should your TORO AUDIO mobile amplifier ever require service, you will need to have the original dated receipt.
  • Page 2 Thank you and Congratulations Thank you for your decision to purchase a TORO AUDIO Micro Rage amplifier! Our Micro Rage amplifiers are the r esult of extensive engineering, testing, and bullet proof construction. Their versatility enables compatibility with optional signal and audio processors. These high quality MOSFET amplifiers may be configured to allow maximum flexibility in designing different speaker and subwoofer options.

  • Page 3: Technical Features

    MECP installer. This Owners Manual only provides general installation and operation instructions. If you have any reservations about your installation skills, please contact your local TORO AUDIO dealer for assistance. IMPORTANT: This amplifier is designed for operation in vehicles with 12-Volt negative ground electrical systems only.
  • Page 4 If possible, use tubing through grommets Fig.1 Mounting Amplifier Due to the high-power output of the TORO AUDIO MICRO amplifiers, considerable heat may be produced when the unit is in operation. For this reason, the amplifier should be mounted in a location which will allow air to circulate freely.
  • Page 5 The floor of the trunk, under the driver's seat, or on the back of the rear seat. For alternate installation locations, please consult your authorized TORO AUDIO Dealer. NOTE: Do not use a drill with driver bit to mount the amplifier. Excessive force could cause the plastic mounting feet to crack.
  • Page 6 FIG2 . MONO AMPLIFIER PANEL LAYOUT LEVEL 1 0V 0.2 DESIGNED & ENGINEERED IN U.S.A. FIG3 . 4-CH AMPLIFIER PANEL LAYOUT 2/4CH 1/2CH CLIP LEVEL 1 0V 0.2 20 300Hz CLIP HPF/LPF 1 0V 0.2 20 300Hz 3/4CH MRX4 MRX4...

  • Page 7: Amplifier Functions

    FIG4. 2-CH AMPLIFIER PANEL LAYOUT LEVEL 1 0V 0.2 10 300Hz DESIGNED & ENGINEERED IN U.S.A. MRX2 MRX2 AMPLIFIER FUNCTIONS 1. SPEAKERS CONNECT SPEAKERS/SUBWOOFERS TO THESE TERMINALS WITH USING THE SUPPLIED MOLEX CONNECTOR. BE SURE TO CHECK WIRE FOR PROPER POLARITY. NEVER CONNECT THE SPEAKER CABLES TO CHASSIS GROUND. 2.
  • Page 8 THIS CONTROL IS USED TO SELECT THE DESIRED LOW PASS X-OVER FREQUENCY. THE FREQUENCY CAN BE ADJUSTED FROM 60HZ TO 220HZ FOR ALL BASS MONO MODELS. 9. BASS BOOST LEVEL KNOB (MR2) THIS CONTROL ADJUSTS THE BOOST LEVEL OF THE BASS BOOST CENTER FREQUENCY. IT CAN BE ADJUSTED FROM 0 TO 12DB.
  • Page 9 TORO AUDIO Rage Mono Block amplifiers will draw large levels of current, so use the largest gauge power / ground cable possible. Using too small of a power cable can result in unnecessary over-heating of the amplifier, distortion at high volume levels and might even cause the thermal protection circuitry to shut-off the amplifier.
  • Page 10 12V(Power) This amplifier should be wired directly to the vehicle battery using the appropriate size cable. Start at the vehicle battery and run the power cable through to the amplifier. Avoid running the power cable over engine components and near heater cores. The use of an in-line fuse or circuit breaker is a must;...
  • Page 11 REM on the amplifier FUSE REQUIREMENTS While the panel on your TORO AUDIO amplifier incorporates one or more fuses, these do nothing to protect the vehicle from a dangerous short circuit. It is absolutely vital that the main power lead to the amplifier(s)in the system be fused within 18-inches(45cm) of the connection to the vehicle battery.
  • Page 12 LEVEL 1 0V 0.2 10 300Hz 2-4 OHM DESIGNED & ENGINEERED IN U.S.A. 2-4 OHM FIG6. Low Level Input using RCA Choose the correct length and style of RCA interconnects for your needs. Always use high quality RCA audio cables (not supplied) for signal connections--those with multiple layers of shielding or a twisted pair variety provides better noise rejection.

  • Page 13: Wiring Diagram

    WIRING DIAGRAM FIG7. MONO AMPLIFIER WIRING (SINGLE WOOFER LOAD) LEVEL 1 0V 0.2 DESIGNED & ENGINEERED IN U.S.A. FIG8. MONO AMPLIFIER WIRING (MULTI-WOOFER LOAD) 4 OHM 4 OHM Two DUAL 4 Ohm SUB LEVEL 1 0V 0.2 DESIGNED & ENGINEERED IN U.S.A. *EQUIVALENT PARALLEL WOOFER LOADS CANNOT BE LESS THAN THE MINIMUM STABLE LOAD RATED IN THIS MANUAL.
  • Page 14 FIG9. MRX2 AMPLIFIER WIRING (1-CHANNEL MODE) MINIMUM IMPEDANCE FOR BRIDGED INSTALLATION IS 4-OHM LEVEL 1 0V 0.2 10 300Hz DESIGNED & ENGINEERED IN U.S.A. FIG10 MRX2 AMPLIFIER WIRING (2-CHANNEL MODE) 2 OHM-4 OHM 2 OHM-4 OHM MINIMUM IMPEDANCE FOR STEREO INSTALLATION IS 2-OHM LEVEL 1 0V 0.2 10 300Hz...
  • Page 15 FIG11. MRX4 AMPLIFIER WIRING (3-CHANNEL MODE) 2 OHM-4 OHM 2 OHM-4 OHM 4 OHM-8 OHM 2/4CH 1/2CH CLIP LEVEL 1 0V 0.2 20 300Hz CLIP HPF/LPF 1 0V 0.2 20 300Hz 3/4CH...
  • Page 16 FIG12 MRX4 AMPLIFIER WIRING (4-CHANNEL MODE) 2 OHM-4 OHM 2 OHM-4 OHM 2 OHM-4 OHM 2 OHM-4 OHM 2/4CH 1/2CH CLIP LEVEL 1 0V 0.2 20 300Hz CLIP HPF/LPF 1 0V 0.2 20 300Hz 3/4CH...

  • Page 17: Troubleshooting

    NOTE: If the Status LED is activated and glows RED with no speakers connected to the amplifier, and all the power connections are correct, this would indicate an internal problem with the amplifier. Contact TORO AUDIO USA or your local dealer.
  • Page 18 RAGE AMPLIFIER SPECIFICATION CHART MODEL MRX2 MRX4 Description Mono Power output @ 14.4VDC Input 4 Ohm RMS Power (Watt) 2x150 4x80 1x230 2 Ohm RMS Power (Watt) 2x250 4x130 1x320 1 Ohm RMS Power (Watt) 1x500 4 Ohm Bridged Power (Watt) 1x500 2x260 Peak Music Power (Watt)
  • Page 19 TORO AUDIO Amplifiers are to be free of defects in material and workmanship for a period of one(1)year. TORO AUDIO Amplifiers are to be free of defects in material and workmanship for a period of 90 days, from the date of purchase, if purchased over the counter from an authorized TORO AUDIO retailer. The Warranty will increase to 1 (one) year if installed by a TORO AUDIO Authorized Installer.
  • Page 20 WWW.TOROAUDIO.COM MANUFACTURED BY TORO TECH LLC. DESIGNED IN U.S.A.
