How to clean the pump on an H10 Pro

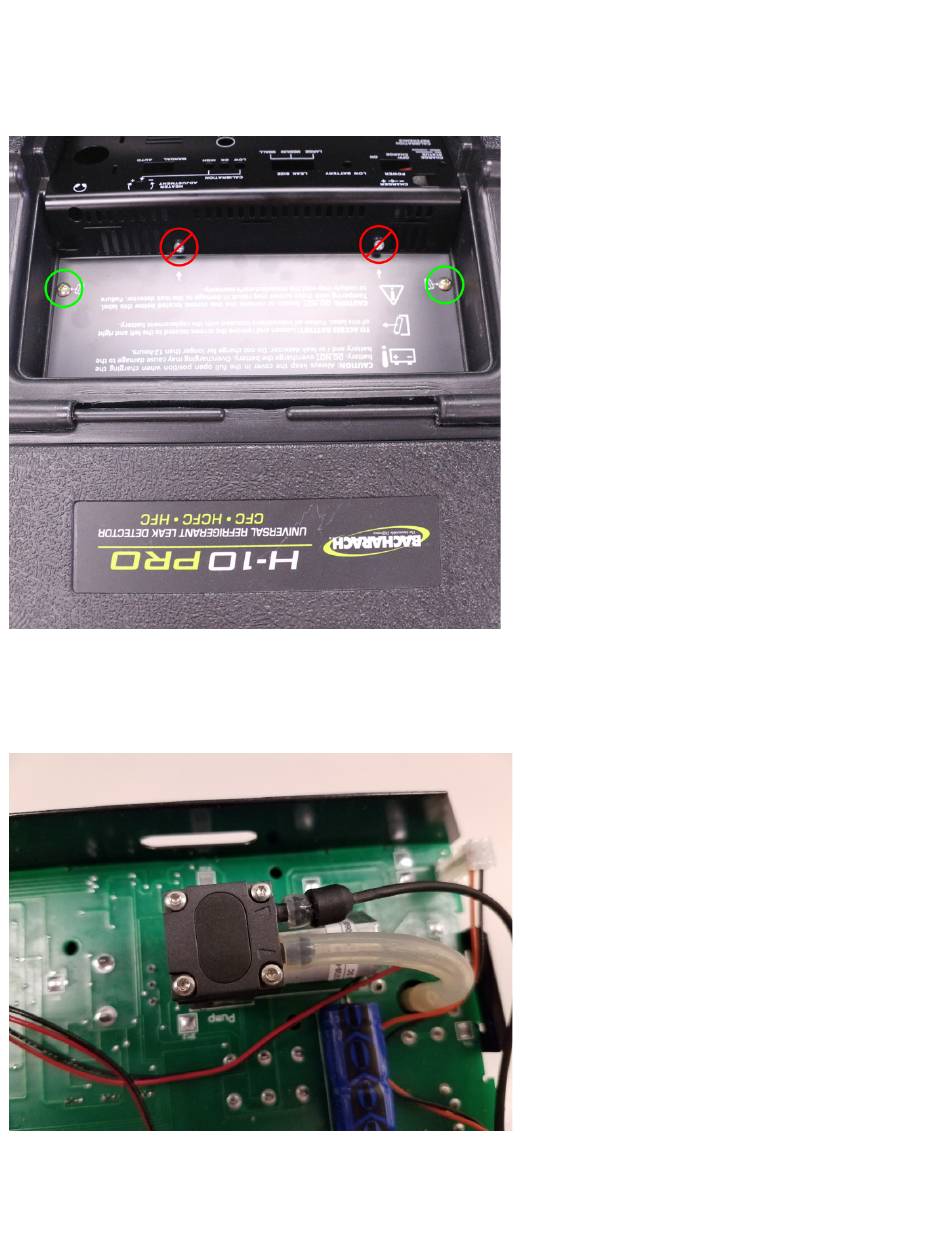

1. Remove the two Phillips-head screws that are located inside the probe storage area.
Caution: DO NOT loosen or remove the two screws located on the back slotted area of the chassis
2. Disconnect the battery and remove chassis from the case, invert and lay it on the workplace table or
desk.
Advertisement
Related Manuals for Bacharach H10 Pro
Summary of Contents for Bacharach H10 Pro
- Page 1 How to clean the pump on an H10 Pro 1. Remove the two Phillips-head screws that are located inside the probe storage area. Caution: DO NOT loosen or remove the two screws located on the back slotted area of the chassis 2.
- Page 2 3. Remove the four Torx screws from the bottom of the pump using a T6 Torx driver 4. Disassemble the two plates and rubber valve plate from the pump...
- Page 3 5. Remove the rubber valve plate and clean with a clean dry cotton swab and a can of Keyboard Duster. CAUTION: When using the Keyboard Duster, make sure you hold the rubber valve plate to avoid blowing it from the bench top.
- Page 5 6. Re-assemble in reverse order and check pump for proper operation...
