- Page 1 Gobi II Instruction manual Gobi II English English Condensate Pump 3004145...
-
Page 2: Table Of Contents
- The local safety regulations applicable to the area in which the The Gobi II condensate pump is to be installed in accordance with Gobi II is being used should also be adhered to, along with gene- ral safety guidelines. -
Page 3: Technical Data
English DO NOT use tools to connect the tubing. Ensure the evaporator coils are free of chemicals before reinstalla- tion of the REFCO Gobi II pump. DO NOT operate this product in ambient temperatures below 5 °C (41 °F). CAUTION: This appliance incorporates an earth connection for functional purposes only. -
Page 4: Product Description

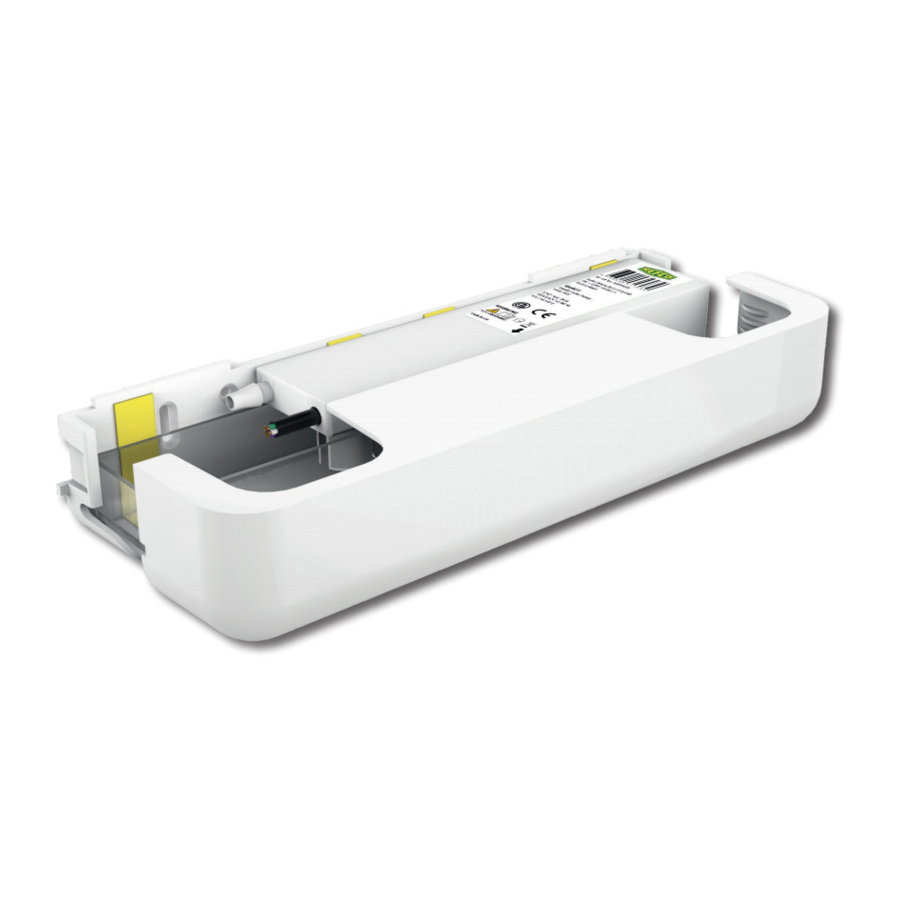

English Instruction manual Gobi II Product description Pump body Factory-installed fuse Replaceable fi lter Digital sensor Water tray DIP-switches USB port Diagnostic LED Wall back plate Cover Dimensions pump Dimensions pump 53mm 286mm Provided accessories Alarm relay HR 10A fuse /... - Page 5 Instruction manual Gobi II English LED alarm relay indications LED alarm relay operation table Start up sequence (normally closed) (normally open) Pump status Condensate level Default operation Peripheral Mode Not powered Powered Below alarm level Powered Alarm-activated ❋ Alarm relay operation is user confi gurable see page 9 ❋...
-
Page 6: Transport And Storage
(35kW) Transport and storage Transport Inspect the GOBI II for any potential transportation damage. Any obvious damage should be reported to the vendor immediately. Storage - Storage temperature: -20 °C to +60 °C - Humidity: 0 to 90% relative humidity (no condensation) - Page 7 Instruction manual Gobi II English CAUTION: Cables and pipes may be in the wall cavity. Be careful while drilling anchor holes. 5.5mm / 7/32” PH#2...
- Page 8 English Instruction manual Gobi II 1/4” I.D. (6mm) Field supplied to drain WARNING: INPUT POWER: Disconnect all electrical power before starting 100-240V, 50/60Hz, 2.5A (Max) installation, maintenance, or service work. The alarm relay fuse must be rated for the specifi c...
- Page 9 Instruction manual Gobi II English Below are examples of how REFCO pumps can be installed. For reference only. When indoor evaporator unit is powered from the outdoor condenser unit (drawing # 1) Condenser unit (outdoor) Evaporator unit (indoor) Data (communica ons)
- Page 10 English Instruction manual Gobi II Below are examples of how REFCO pumps can be installed. For reference only. When outdoor condenser is powered from the indoor evaporator unit (drawing # 3) Evaporator (Indoor) Condenser unit (outdoor) Data (communica ons) Earth (ground)
- Page 11 Instruction manual Gobi II English...
-
Page 12: Maintenance
Water filter maintenance Regular cleaning / replacement of the Gobi II water filter will help to prolong the life of the pump. The sole purpose of the water filter is to prevent foreign debris from entering the pump itself. The time period between filter service can only be determined from the specific environment in which the pump is installed. -
Page 13: Return And Disposal
Instruction manual Gobi II English Change filter Change alarm fuse WARNING: Disconnect all electrical power before starting installation, maintenance, or service work. The alarm relay fuse must be rated for the specifi c applica- tion and of the HRC type, 5 x 20 mm 250VAC, 10A (MAX) Installations must only be carried out by qualifi... -
Page 14: Troubleshooting
This is why you should always use the factory supplied cable ties. With Gobi II pump: Ensure the wall back plate, the water tray and the Gobi II pump body are all mounted and installed level. -
Page 15: Replacement Parts
Instruction manual Gobi II English Replacement parts and accessories HSG-4065/4 FIL-4064/4 Stop-Siphon Device, 4 pcs. Filter, 4 pcs. Part No 3004065 Part No 3004064 FUS-4050/10 KIT-4087 Fuses 5x20 10A, 10 pcs. Star tube with Stop-Siphon device Part No 3004050 Part No 3004087 PVC-TUBE Plastic tube 6 mm (1⁄4”),... - Page 16 English Instruction manual Gobi II REFCO Manufacturing Ltd. Industriestrasse 11 6285 Hitzkirch - Switzerland Telefon +41 41 919 72 82 Telefax +41 41 919 72 83 info@refco.ch www.refco.ch...
