- Page 1 BRT5088 U.S. Patent number US9474925B1 This product is intended for indoor, home use only and is not to be used in a commercial setting. OWNER’S MANUAL...
- Page 2 This page is left blank intentionally...
- Page 4 PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE USE & REFERENCE. DO NOT DISCARD. WARNING: SERIOUS INJURIES AND EVEN DEATH CAN OCCUR IF THE PROPER SAFETY PRECAUTIONS ARE NOT FOLLOWED. The diagram below highlights and reviews many of the important Safety and Warning labels also found on the unit. Please ensure any user of the unit familiarizes themselves with this Safety and Warning guidelines before use.
-
Page 5: General Information
General Information Safety Storage and Use Before you undertake any exercise program, please be sure to Your product is intended for use in clean dry conditions. You consult with your doctor. should avoid storage in excessively cold or damp places as Frequent strenuous exercise should be approved by your this may lead to corrosion and other related problems. -
Page 6: Before Assembly
Before Assembly WARNING 1. Take a few minutes to familiarize yourself with the parts and hardware included with your product. 2. The assembly may require two people. 3. Check the frame for any damage and check any wiring (if present) for rips or tears. If you detect damage, rips, or tears, please contact our Customer Support Team before beginning any assembly. -
Page 7: Part Listing
Part Listing The following parts list describes all of the parts illustrated in the exploded diagram on the following page. PLEASE NOTE: most of these parts are already pre-assembled on your unit. # Description # Description 01 Main Frame 40 Crankshaft 02 Seat Post 41 Bolt (M8x50 mm) 03 Rear Stabilizer... -
Page 8: Exploded View
Exploded View The following diagram is provided to help you familiarize yourself with the parts and hardware that will be used during the assembly process. PLEASE NOTE : : Not all of the parts and hardware you see here will be used while you are assembling the machine because some of these items are already pre-installed. -
Page 9: Hardware And Tool List
Hardware and Tool List The following hardware is used to assemble your unit. Please take a moment to familiarize yourself with these items. PLEASE NOTE: Most of these parts are already pre-assembled on your unit. Do not be alarmed if you see parts on this page that are not included in your hardware packet. -
Page 10: Assembly Step
Assembly STEP 1 REAR STABILIZER ASSEMBLY Hardware Required With the help of an assistant, attach the Rear Stabilizer (#03) to the rear of the Main Frame (#01). Insert two Carriage Bolts (#23) through the Rear Stabilizer (#03) followed by the rear of the Main Frame (#01). Secure them together using two Arc Washers (#31) and two Cap Nuts (#28). - Page 11 Assembly STEP 2 Remove the Nylon Nuts (#27),Washers (#33) and Wavy Washers Hardware Required (#82) that are pre-assembled on the Handlebar Axle (#20) and set them aside as they will be used later in this step. Insert the Handlebar Axle (#20) through the main frame. Make sure the Handlebar Axle (#20) is centered.
- Page 12 Assembly STEP 3A Remove Hex Bolts (#21) and Nylon Nuts (#27) that are Hardware Required pre-assembled on the Left/Right Couple Bar (#09L/09R) and set them aside as they will be used in later in this step. Attach the Right Pedal Tube (#39) to the Right Coupler Bar (#09R). Hex Bolt (M10x55 mm) [2 pieces] Secure with one Hex Bolt (#21) and one Nylon Nut (#27).
- Page 13 Assembly STEP 3B Repeat STEP 3A on the LEFT side of the machine and LEFT CRANK RIGHT CRAN turning the Left Pedal Hinge Bolt (#26) COUNTER-CLOCKWISE. counter- clockwise Note : Keep the Right/Left Pedal Hinge Bolt (#25/26) perfectly straight as they go through the Pedal Connection Joint (#08) and the Crankshaft (#40).
- Page 14 Assembly STEP 4 On the right side, attach Right Pedal (#06R) to the Right Pedal Hardware Required Tube (#39) and secure them together using two Hex Bolts (#22) and two Nylon Nuts (#27). Next, attach one Foot Pedal (#07) to the front of Right Pedal Tube (#39) using two Bolts (#41) and secure with four Washers (#59) Hex Bolt (M10x45mm) Nylon Nut (M10)
- Page 15 Assembly STEP 5 A. CENTER POST Hardware Required Remove the Bolts (#44) that are pre-assembled on Main Frame (#01) and set them aside as they will be used in later in this step. Attach the Center Post (#12) to the Main Frame (#01) and secure them together by inserting two Bolts (#44) through the Center Post (#12) followed by the Main Frame (#01).
- Page 16 Assembly STEP 6 A. COMPUTER Hardware Required Remove the Screws (#77) that are pre-assembled on the back of the monitor and set them aside as they will be used later in this step. Connect upper end of Center Post Sensor Wire (#79) to the Wire (#11a) on the back of Monitor (#11).
- Page 17 Assembly STEP 7 Remove Knob Bolt (#37) that is pre-assembled on the Main Hardware Required Frame (#01) and set it aside as it will be used in a later process. Select the desired height and secure the Seat Post (#02) to the Main Frame (#01) using one Knob bolt (#37).
- Page 18 Assembly STEP 8 Attach the Rear Handle Bar (#13) to the bracket on the Seat Hardware Required Cushion Tube (#16) and place the Reinforcement Plate (#14) over the middle of the Rear Handle Bar (#13). Attach by inserting two Carriage Bolts (#45) through and securing with two Washers (#42) and two Cap Nuts (#18).
- Page 19 Assembly STEP 9 Remove Bolts (#46) and Washers (#42) that are Hardware Required pre-assembled on the two Cushions (#15) and set them aside as they will be used in a later process. Attach one Cushion (#15) to the Seat Cushion Tube (#16). Secure with four Washers (#42) and four Bolts (#46).
-
Page 20: Tension Adjustment
Tension Adjustment 1-inch Distance (use this measurement as a “test” when you gently tug on Friction Belt (#69) away from flywheel) NOTE: In order to clearly show parts used in Tension Adjustment process, this drawing has been modified and does not show all parts nor full assembly. -
Page 21: Computer Operation
Computer Operation Key Function MODE : Press this button to select the display function of your SCAN SPEED CALORIES TIME DISTANCE PULSE choice. RESET : Hold MODE button for 3 seconds to reset all value to zero. Operation Procedures FUNCTIONS SCAN : The monitor will then rotate displaying through the following functions: time,speed,distance, calories and odometer. - Page 22 Computer Operation How To Install and Replace Batteries 1. Open the battery door on the back of the computer. 2. The computer operates on two AAA batteries (included). Refer to the illustration to install or replace the batteries. NOTE : 1.
-
Page 23: Safety And Maintenance
Safety and Maintenance Safety & Warning • Make sure all nuts, bolts, and screws are tightened prior to use. • Be sure that all adjustment locking devices and safety devices are properly engaged prior to use! • Never over-tighten the above-mentioned devices and parts to avoid damage to the unit. •... -
Page 24: Troubleshooting
Troubleshooting (AFTER COMPLETE ASSEMBLY) Troubleshoot Area Solution Calories/Distance/ If the computer is not displaying the CALORIES/DISTANCE/TIME/(ETC.) functions (or you are getting inaccurate readings), please adjust Time (Etc.) the following: 1. Check to ensure all computer sensor wires are properly connected and are not damaged. 2. - Page 25 Warm-Up Instructions Before use, you must read and understand all instructions & warnings stated in this Owner’s Manual as well as posted on the equipment. Before beginning any exercise program including the following flexibility exercises, please consult with your physician. The following flexibility exercises are provided to you as a means to prevent injury while you are exercising.
- Page 26 Warm-Up Instructions Shoulder Stretch Quadriceps Stretch Calf Twister 1. Bring your right hand over your 1. Stand on your left leg and hold 1. Place both hands against a wall right shoulder to the onto a support with your left to aid your balance.
- Page 27 This page is left blank intentionally...
- Page 28 THANK YOU FOR YOUR PURCHASE MODEL NO.: BRT5088 Please fill in the information below and keep this manual along with your sales receipt as proof of purchase. Serial Number : Date of Purchase : Retailer : Hupa International, Inc. 21717 Ferrero Parkway Walnut, CA 91789 Phone : 1 (888) 266-6789 : 1 (909) 598-6707...
Need help?
Do you have a question about the Trio Trainer BRT5088 and is the answer not in the manual?
Questions and answers

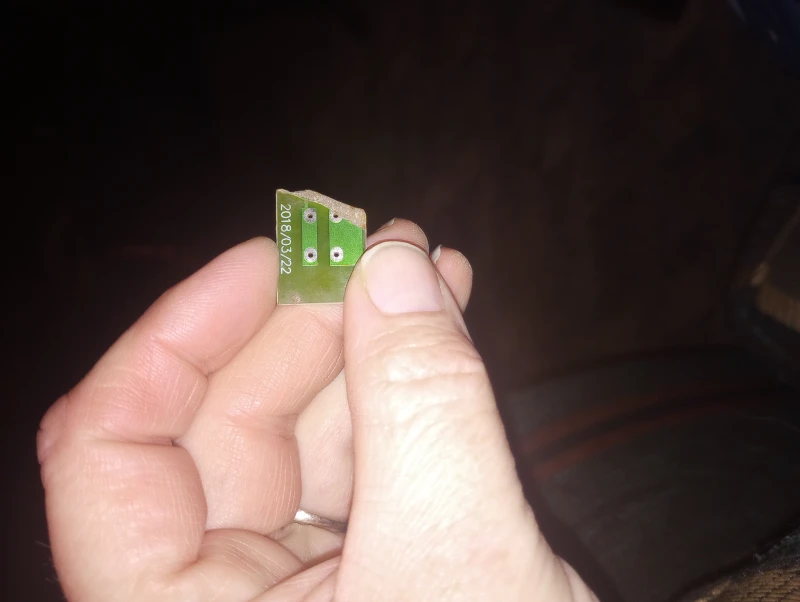

Hi. I **** needing to replace the entire computer box on my **** trainer and need help. The whole thing had been left with batteries in it and then was moved from one house to another and the entire neck fell off and the computer broke and it needs replaced. Thank you
@Angel Kitzman how can I fix it.
Need to replace left pedal
To replace the left pedal on the Body Power Trio Trainer BRT5088, follow these steps:
1. Turn the Left Pedal Hinge Bolt (#26) counter-clockwise to remove it.
2. Ensure the bolt is kept perfectly straight as it passes through the Pedal Connection Joint (#08) and the Crankshaft (#40) to avoid damage.
3. Remove the old left pedal.
4. Align the new left pedal with the Pedal Connection Joint (#08) and Crankshaft (#40).
5. Insert the Left Pedal Hinge Bolt (#26) straight through the parts.
6. Turn the bolt counter-clockwise to secure it.
Make sure all parts are properly aligned and tightened.
This answer is automatically generated
@Phyllis George needs the parts
Where do I get replacement parts
Replacement parts for the Body Power Trio Trainer BRT5088 can be obtained by contacting Hupa International during the warranty period. They may provide replacement parts to the purchaser to repair the item. Proof of purchase is required.
