Smart Connect Multi-loop Installation Manual

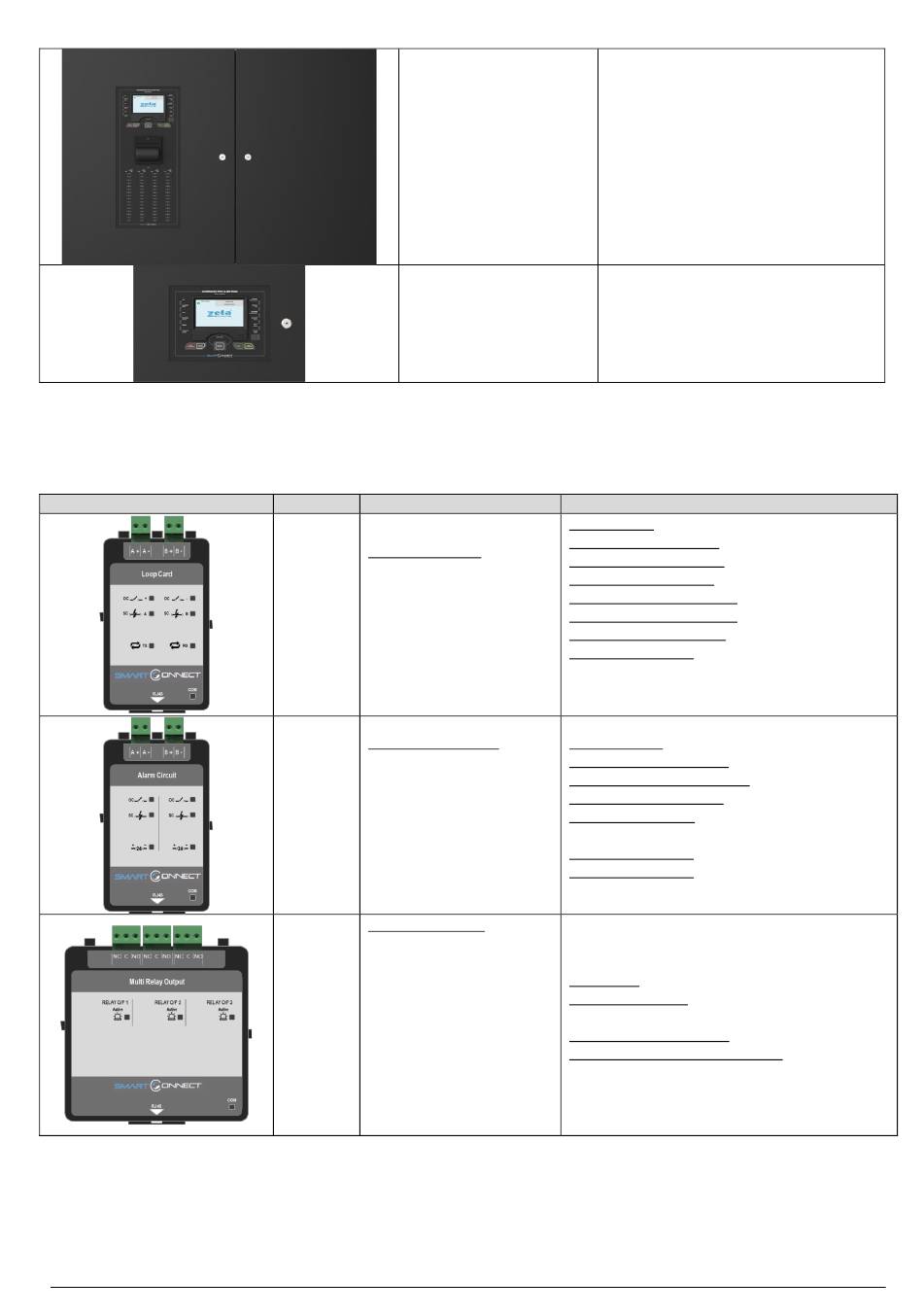

Panel Modules

www.zetaalarmsystems.com
SMART26/P/64
SMART/REP
Model No. Description
Loop Card Module
The plug-in loop card module
provides power for, and
handles communications to
SCM-LCM
the analogue addressable
devices. It has 4 fault status
LED's for added fault finding
assistance.
Alarm Circuit Module
The plug-in alarm circuit
module provides power for,
and handles communications
SCM-ACM to the non-addressable
sounder appliances. It has 2 x
Class B circuits and can be
programmed to provide two
24v DC auxiliary outputs.
Multi Relay Output
A Relay module that is
designed to be DIN mounted
inside of a SMART Connect
Multi-loop panel. It's
powered and interfaced to
SCM-RM
the CIE via a RJ45 connection.
Can be configured as a
programmable relay or a
common alarm, common
fault or common tech alarm
relay via the panel settings.
•
W:1000mm x H:665mm
•
Space for up to 26 small modules
•
Equipped with panel printer
•
Equipped with 64 zone LED expansion
•
Supplied with a 400W 15A PSU
•
Space for 2 x 38Ah batteries
•
W:300mm x H:200mm
•
Smart Connect Repeater
•
Please refer to GLT-261-7-12 Smart
Connect Repeater Manual for further
information
Technical
Loop Voltage: 35V Nominal
Maximum Loop Current: 450mA
Maximum Loop Capacity: 250 Addresses
Maximum Loop Length: 2KM
Maximum Loop Resistance: 22Ω + to +, 22Ω - to -
Maximum SLC Capacitance: 500nF
Maximum SLC Baud Rate: 1024 bits per second
Compatible Devices: MKII-AOP, MKII-AOH, MKII-
AHR, MKII-AHF, MKII-AHF/CS90, ZAI-MI, ZAIO-MI,
ZAZM-MI, ZAIO/230, ZASC-MI, MKII-SSB, MKII-AXT,
MKII-AXTB, ZRAP, ZRAPB (All are EN54 approved)
Circuit Voltage: 29VDC Nominal
Maximum Circuit Current: 500mA per circuit
Maximum Circuit Impedance: 4Ω
Maximum Circuit Length: Depends on AWG
Special Applications: Auxiliary 24 VDC Output
[Power limited & Unsupervised]
End of Line Resistor: 4K7Ω
Compatible Devices: ZXT, ZXTB, ZRP, ZRPB (All are
EN54 approved)
Relay Type: Form C x 3
Switching Capacity: 5 A, 30 VDC (resistive)
5 A, 250 VAC (general use)
Quiescent Current @ 30V: 39.3mA
Relay Operated Current (LEDs ON): 115.26mA
