• Product specifications and design are subject to change without notice for future improvement. • For further details, please check with our authorized dealer. Trademarks ™ FGLair is trademark of Fujitsu General Limited in the United States, other countries or both. ™ Google Play is trademark of Google Inc. ®...

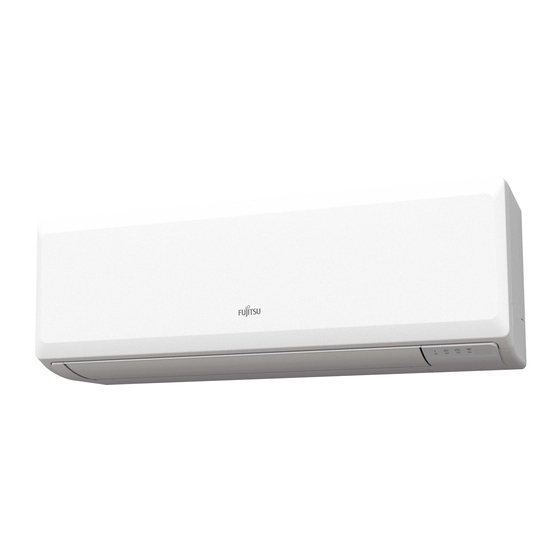

1. Specifications Wall mounted Type Inverter heat pump Model name ASYG09KHCA ASYG12KHCA ASYG14KHCA Power supply 230 V ~ 50 Hz Power supply intake Outdoor unit Available voltage range 198—264 V Energy rank Cooling 2.50 3.50 4.20 Rated Btu/h 8,500 11,900...
Page 7
Wall mounted Type Inverter heat pump Model name ASYG09KHCA ASYG12KHCA ASYG14KHCA NOTES: • Specifications are based on the following conditions: – Cooling: Indoor temperature of 27 °CDB/19 °CWB, and outdoor temperature of 35 °CDB/24 °CWB. – Heating: Indoor temperature of 20 °CDB/15 °CWB, and outdoor temperature of 7 °CDB/6 °CWB.
Page 8
Specifications for ErP Lot10 Model name ASYG09KHCA ASYG12KHCA ASYG14KHCA Cooling Energy efficiency class Heating (Average) Cooling 2.5 (35 °C) 3.5 (35 °C) 4.2 (35 °C) Pdesign Heating (Average) 2.5 (-10 °C) 3.5 (-10 °C) 4.2 (-10 °C) SEER Cooling 9.36 9.06...
2. Dimensions 2-1. Models: ASYG09KHCA, ASYG12KHCA, and ASYG14KHCA Unit: mm for pipe inlet Ø 65 Outline of unit for pipe inlet Ø 65 - 5 - 2-1. Models: ASYG09KHCA, ASYG12KHCA, and ASYG14KHCA 2. Dimensions...
Page 10
¢ Installation space requirement Provide sufficient installation space for product safety. Unit: mm Outline of unit 50 or more 50 or more 127 or more 133 or more 1,500 or more - 6 - 2-1. Models: ASYG09KHCA, ASYG12KHCA, and ASYG14KHCA 2. Dimensions...
Airflow Rate (AFR): For cooling capacity: Total Capacity (TC), Sensible Heat Capacity (SHC), and Input Power (IP) For heating capacity: Total Capacity (TC) and Input Power (IP) 4-1. Cooling capacity ¢ Model: ASYG09KHCA Indoor temperature °CDB °CWB °CDB...
5. Fan performance 5-1. Air velocity distributions ¢ Models: ASYG09KHCA and ASYG12KHCA Fan speed Operation mode Measuring conditions HIGH Unit: m/s Top view Vertical airflow direction louver: Up Horizontal airflow direction louver: Center Unit: m/s Top view Vertical airflow direction louver: Up Horizontal airflow direction louver: Left &...
Page 15
¢ Model: ASYG14KHCA Fan speed Operation mode Measuring conditions HIGH Unit: m/s Top view Vertical airflow direction louver: Up Horizontal airflow direction louver: Center Unit: m/s Top view Vertical airflow direction louver: Up Horizontal airflow direction louver: Left & Right Unit: m/s Side view Vertical airflow direction louver: Up...
5-2. Airflow ¢ Models: ASYG09KHCA and ASYG12KHCA Cooling Fan speed Airflow HIGH QUIET Heating Fan speed Airflow HIGH QUIET - 12 - 5-2. Airflow 5. Fan performance...
Page 17
¢ Model: ASYG14KHCA Cooling Fan speed Airflow HIGH QUIET Heating Fan speed Airflow HIGH QUIET - 13 - 5-2. Airflow 5. Fan performance...
7. Safety devices Model Type of Protection form protection ASYG09KHCA ASYG12KHCA ASYG14KHCA Circuit protection Current fuse (PCB*) 250 V, 3.15 A 150 ±15°C Activate Thermal Fan motor stop Fan motor protector protection 120 ±15°C program Reset Fan motor restart *PCB: Printed Circuit Board - 16 - 7.
8. External input and output With using external input and output functions, this product can be operated inter-connectedly with an external device. Connector Input Output Remarks CNA01 Control input — See external input/output CNB01 — Operation status output settings for details. CNB02 —...
Page 22
• Circuit diagram example • Contact capacity: DC 24 V or more, Indoor unit 10 mA or more. Connected unit control PCB Communication kit • *: Make the distance from the PCB to Example: Switch Connector the connected unit within 10 m. •...
Page 23
• Optional part Part name Model name Exterior External input wire External connect kit UTY-XWZXZ5 Communication kit UTY-TWBXF1 * For operating the external function, the wall mounted type requires the communication kit in addi- tion to the wire (UTY-XWZXZ5). - 19 - 8-1.
8-2. External output With using external output function, operating status of this product can be transmitted to the exter- nal device, and also, this product can be inter-connected with the external device. ¢ Operation status output Circuit diagram example Indoor unit control PCB Communication kit...
Page 25
¢ Error status output Circuit diagram example Indoor unit control PCB Communication kit Connected unit Connector DC 24 V Example: Relay unit Example: Display Relay power supply 10 m* Signal Optional parts Locally purchased • *: Make the distance from the PCB to the connected unit within 10 m. •...
9. Group connection Installation procedure for group control system: A number of indoor units can be operated at the same time using a single remote controller. NOTE: When different type of indoor units (such as wall mounted type and cassette type, cassette type and duct type, or other combinations) are connected using group control system, some functions may no longer be available.
11. Function settings To adjust the functions of this product according to the installation environment, various types of function settings are available. NOTE: Incorrect settings can cause a product malfunction. 11-1. Function settings by using remote controller Some function settings can be changed on the remote controller. After confirming the setting proce- dure and the content of each function setting, select appropriate functions for your installation envi- ronment.
Page 30
NOTES: • The air conditioner custom code is set to prior to shipment. • If you do not know the air conditioner custom code setting, try each of the custom codes ( → → → ) until you find the code that operates the air conditioner. ¢...
Page 31
3) Room temperature sensor control for heating Depending on the installed environment, correction of the room temperature sensor may be re- quired. Select the appropriate control setting according to the installed environment. Function number Setting value Setting description Factory setting Standard ♦...
Page 32
8) Room temperature sensor switching (Aux.) To use the temperature sensor on the wired remote controller only, change the setting to "Wired re- mote controller" (01). This function will only work if the function setting 42 is set at "Both" (01). When the setting value is set to "Both"...
11-2. Custom code setting for wireless remote controller To interconnect the air conditioner and the wireless remote controller, assignment of the custom code for the wireless remote controller is required. NOTE: Air conditioner cannot receive a signal if the air conditioner has not been set for the custom code.
13. Optional parts 13-1. Controllers Exterior Part name Model name Summary Large and full-dot liquid crystal screen, wide and large keys easy to press, user-intuitive arrow key. Wired remote Wire type: Polar 3-wire UTY-RVNYM controller Optional communication kit is necessary for installation. Room temperature can be controlled by detecting the temperature accurately with built-in thermo sensor.
1. Specifications Type Inverter heat pump Model name AOYG09KHCAN AOYG12KHCAN AOYG14KHCAN Power supply 230 V ~ 50 Hz Power supply intake Outdoor unit Available voltage range 198—264 V Starting current Cooling 1,810 2,050 2460 Airflow rate Heating 1,550 1,780 Type × Q'ty Propeller fan ×...
3. Installation space 3-1. Models: AOYG09KHCAN, AOYG12KHCAN, and AOYG14KHCAN ¢ Space requirement Provide sufficient installation space for product safety. Single outdoor unit installation • When the upper space is open: Unit: mm When there are obstacles at the rear only. When there are obstacles at the rear and sides.
Page 41
Multiple outdoor unit installation • When the upper space is open: Unit: mm When there are obstacles at the rear only. When there are obstacles at the front only. 1,000 or more or more When there are obstacles at the front and rear.
Page 42
Outdoor unit installation in multi-row Unit: mm Single parallel unit arrangement Multiple parallel unit arrangement 100 or more 200 or more 1,000 or more 2,000 or more 200 or more 400 or more 1,000 or more 500 or more 200 or more NOTES: •...
6. Capacity compensation rate for pipe length and height difference Height difference H Indoor unit is higher than outdoor unit Indoor unit is lower than outdoor unit Outdoor unit Indoor unit Outdoor unit Indoor unit Connection pipe Connection pipe 6-1. Model: AOYG09KHCAN NOTE: Values mentioned in the table are calculated based on the maximum capacity.
6-2. Model: AOYG12KHCAN NOTE: Values mentioned in the table are calculated based on the maximum capacity. Pipe length (m) COOLING — — — 0.882 0.880 — — 0.943 0.896 0.894 Indoor unit is higher than outdoor unit *1 — 0.968 0.947 0.900 0.898...
10. Electrical characteristics Model name AOYG09KHCAN AOYG12KHCAN AOYG14KHCAN Voltage 230~ Power supply Frequency Max operating current *1 10.5 11.0 11.5 Starting current Circuit breaker current Power cable Wiring Cross-sectional spec. *2 area Connection cable *3 Limited wiring length *1: Maximum operating current is the total current of the indoor unit and the outdoor unit. *2: Selected sample based on Japan Electrotechnical Standards and Codes Committee E0005.
11. Safety devices Model Type of Protection form protection AOYG09KHCAN AOYG12KHCAN AOYG14KHCAN 250 V, 25 A Current fuse (Main PCB) 250 V, 5 A Circuit protection 250 V, 3.15 A Current fuse (Wire) 250 V, 3.15 A 125 ±10 °C Activate Fan motor stop Fan motor...
12. Accessories 12-1. Models: AOYG09KHCAN, AOYG12KHCAN, and AOYG14KHCAN Part name Exterior Q’ty Part name Exterior Q’ty Installation manual - 49 - 12-1. Models: AOYG09KHCAN, AOYG12KHCAN, and AOYG14KHCAN 12. Accessories...
