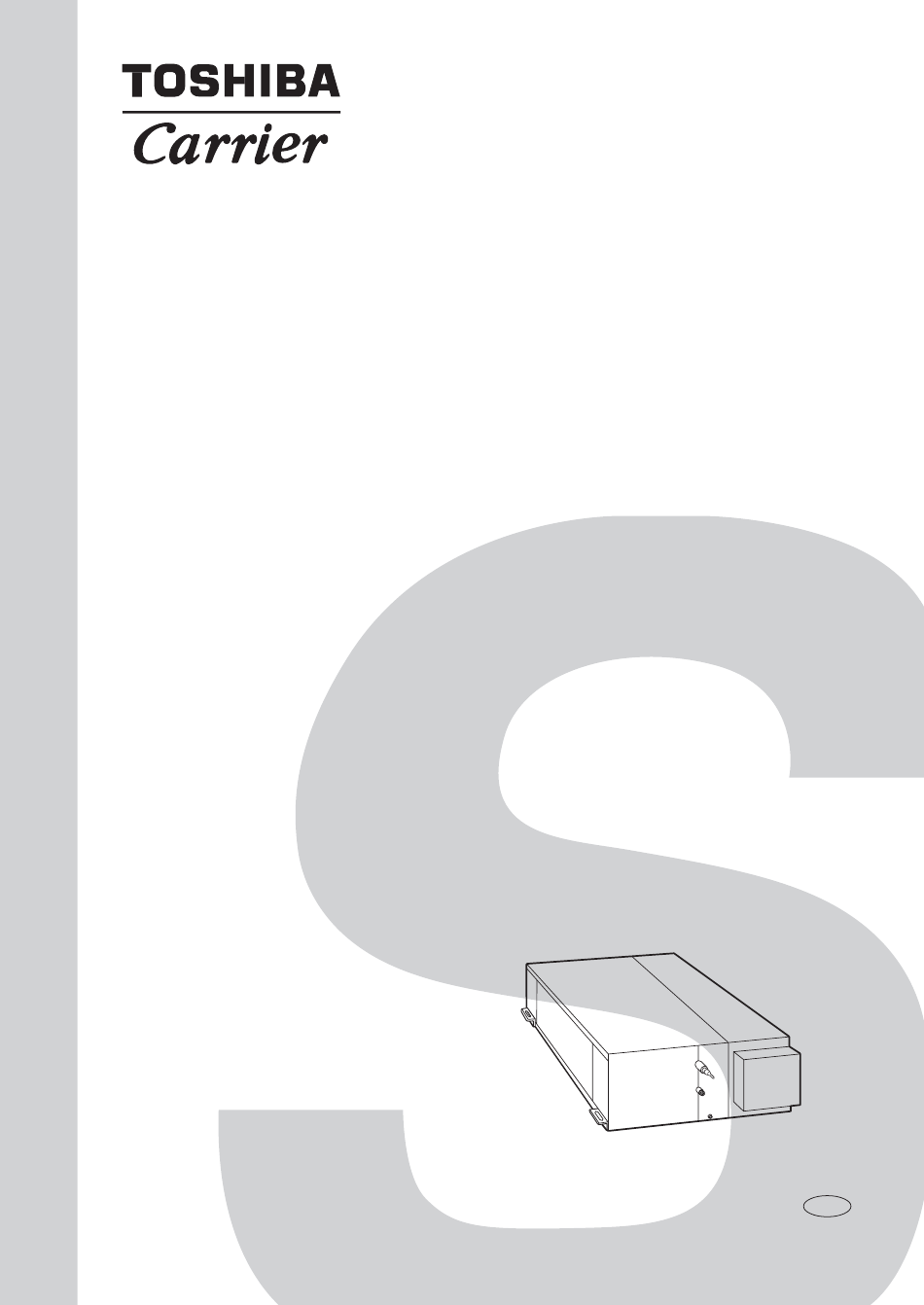

SERVICE MANUAL
AIR-CONDITIONER
<Outside Air Unit>
MMD-AP0481HF2UL
MMD-AP0721HF2UL
MMD-AP0961HF2UL
Revision 1 :
Revision 2 :
(MULTI TYPE)
PRINTED IN JAPAN, Mar., 2016, TOMO
FILE No. A10-1603
2016
Sep.,
2017
Jun.,
