- Page 1 CABINET PARTS REFRIGERATOR For Models: ED5LHEXTD00 (Universal Silver) 06−07 Litho In U.S.A. (mat) Part No. W10142735 Rev. A...
-

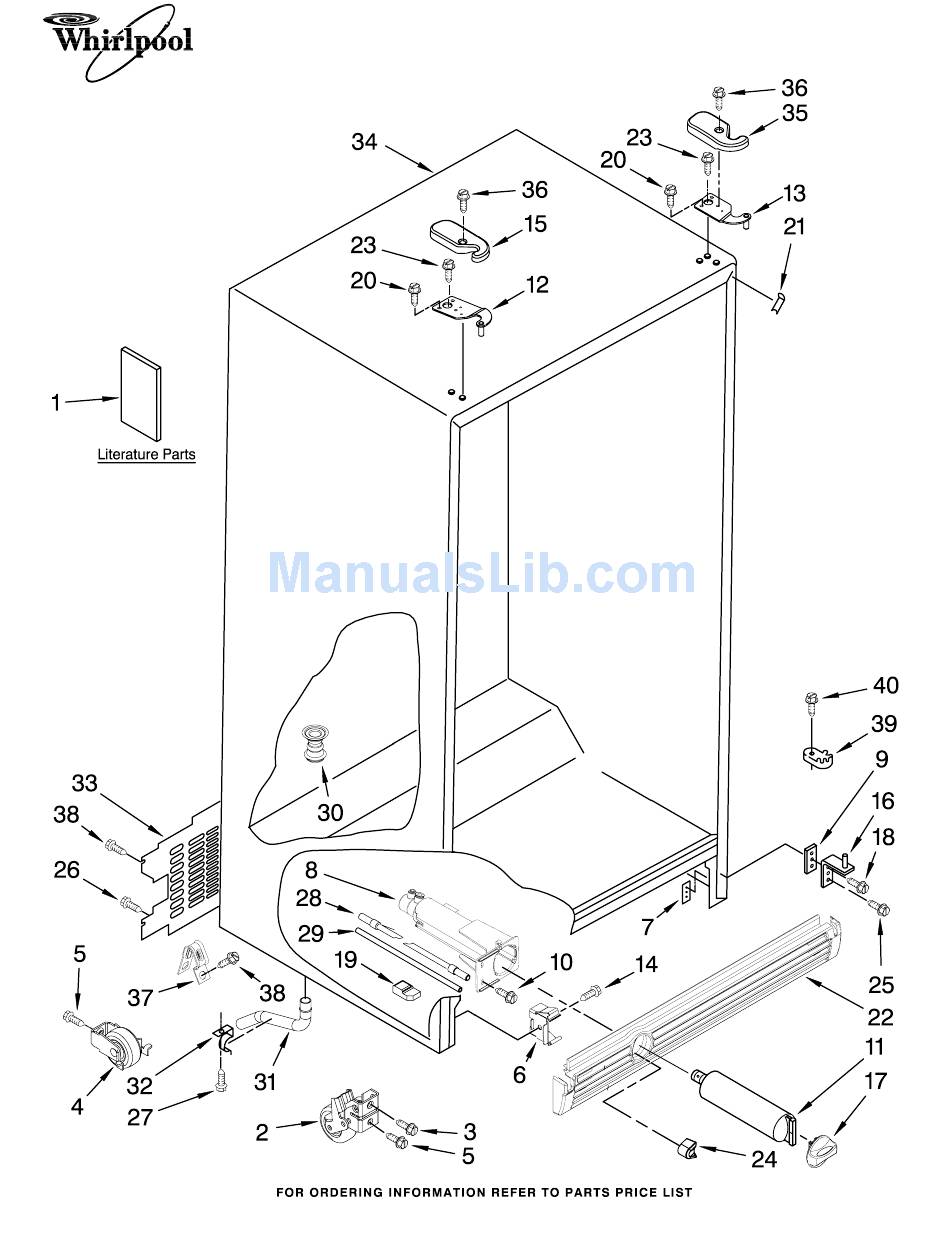

Page 2: Cabinet Parts
2304249 Screw Plate (2) 2260507 Housing, Water Filter 2209697 Shim (2) 489500 Screw (2) 4396841 Water Filter 2203770 Hinge Top (FC) CABINET PARTS For Models: ED5LHEXTD00 (Universal Silver) Illus. Part DESCRIPTION 2203771 Hinge, Top (RC) 488500 Screw Hinge Cover 2203407B Black... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS W10142735 For Models: ED5LHEXTD00 (Universal Silver) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2257741 Louver 2256035 Bracket, Dual Crisper Light 489084 Screw 2311637 Wire Harness, Crisper Light 2311612 Clip, Control Box (2) 2209753 Air Diffuser Assembly... -
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: ED5LHEXTD00 (Universal Silver) Illus. Part DESCRIPTION 2311980 Glass, Cover 2209698 Cover, Crisper 2255593 Trim, Pan 2179259 Glass, Cover 2179234 Trim, Meat Pan 2179342 Slide, Humidity Control 2188652 Crisper Pan 2188654 Meat Pan 2196485 Stud Assembly... -
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Models: ED5LHEXTD00 (Universal Silver) W10142735... - Page 6 FREEZER LINER PARTS For Models: ED5LHEXTD00 (Universal Silver) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 2163762 Cup, Shelf Mounting (12) 2171713 Door, Ice Compartment 2309597 Shelf, Wire 842534 Clip, Air Duct (2) 2196206 Support, Stud (4) 2309757 Freezer Bin...
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: ED5LHEXTD00 (Universal Silver) W10142735... - Page 8 MOTOR AND ICE CONTAINER PARTS For Models: ED5LHEXTD00 (Universal Silver) Illus. Part 2183726 Bracket, Motor 2188385 Motor, Dispenser 2152713 Soleniod Assembly 2149100 Guide, Solenoid 2325303 Wiring Assembly, 489399 Screw (6) 2205716 Coupling, Motor 489478 Screw 2162085 Socket, Light 2196091 Ice Container...
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: ED5LHEXTD00 (Universal Silver) W10142735... - Page 10 REFRIGERATOR DOOR PARTS For Models: ED5LHEXTD00 (Universal Silver) Illus. Part DESCRIPTION Refrigerator Door (Includes Item 6) 2311658US Universal Silver 2256101 Door, Compartment 489491 Screw 2187172 Door Bin (3) 2255411 Clip, Mounting Door Gasket, Magnetic 2309529 Black Handle 2313345B Black 2308091 Thimble−Top...
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Models: ED5LHEXTD00 (Universal Silver) W10142735... - Page 12 FREEZER DOOR PARTS For Models: ED5LHEXTD00 (Universal Silver) Illus. Part DESCRIPTION Freezer Door (Includes Item 8 And Dispenser Front Parts) 2325839US Universal Silver Handle 2313345B Black 2182181 Thimble−Top 8533920 Screw 2255411 Clip, Mounting 2309718 Trivet (4) Door Gasket, Magnetic 2309533 Black...
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: ED5LHEXTD00 (Universal Silver) W10142735... - Page 14 DISPENSER FRONT PARTS For Models: ED5LHEXTD00 (Universal Silver) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 3196537 Screw 2194719 Retainer, Levers 2304772 Spring, Torsion 2196195 Pin 2180353 Door, Ice 2304355 Door Mechanism Assembly 2205686 Mechanism Delay Grille, Overflow 2206670B Black 2304317 Water Fitting...
-
Page 15: Unit Parts
UNIT PARTS For Models: ED5LHEXTD00 (Universal Silver) W10142735... - Page 16 Capacitor 2169373 Production 1118576 Service 2261599 Tube, Condenser to Heat Loop 2183454 Relay (Service Only) 489478 Screw UNIT PARTS For Models: ED5LHEXTD00 (Universal Silver) Illus. Part DESCRIPTION 2188823 Evaporator 2161324 Clamp 2188874 Fan, Motor 1105523 Tray, Evaporator 2217194 Heat Shield...
-
Page 17: Air Flow Parts
2176759 Fan Grommet (2) 2182146 Duct, Icemaker 2310114 Harness, Fan Evaporator (Includes #4) 2155789 Gasket, Fan Scroll 2203876 Gasket 2203841 Cover, Evaporator 8281159 Screw (6) 489478 Screw 2203595 Support, R.S 2203596 Support, L.S W10142735 AIR FLOW PARTS For Models: ED5LHEXTD00 (Universal Silver) -
Page 18: Control Parts
2311611 Mounting Bracket 2219875 Light Switch 2303824 Electronic Control 489398 Screw (2) 2198202 Thermostat 3196537 Screw 2182195 Cam Assembly CONTROL PARTS For Models: ED5LHEXTD00 (Universal Silver) Illus. Part DESCRIPTION 1110560 Bearing Body 2196062 Damper Control 1110559 Pivot Arm 487869 Screw (2) -
Page 19: Icemaker Parts
ICEMAKER PARTS For Models: ED5LHEXTD00 (Universal Silver) W10142735... - Page 20 ICEMAKER PARTS For Models: ED5LHEXTD00 (Universal Silver) Illus. Part DESCRIPTION 489084 Screw 2209774 Chute, Water 628379 Clip, Fuse 2223137 Tube, Water 489478 Screw 2315534 Filter Valve Asm 2208136 Tube Clip 2174155 Cover 488649 Screw 628228 Mold & Heater Assembly (Also...
- Page 21 80051 Graphite W10134625 Apollo Grey Important: The spray paint is not to be used where the paint may make contact with the door gaskets. W10142735 For Models: ED5LHEXTD00 (Universal Silver) Illus. Part DESCRIPTION PAINT, BULK (1 qt.) 799340 Black 799344 White...
