Page 1: Oven Parts

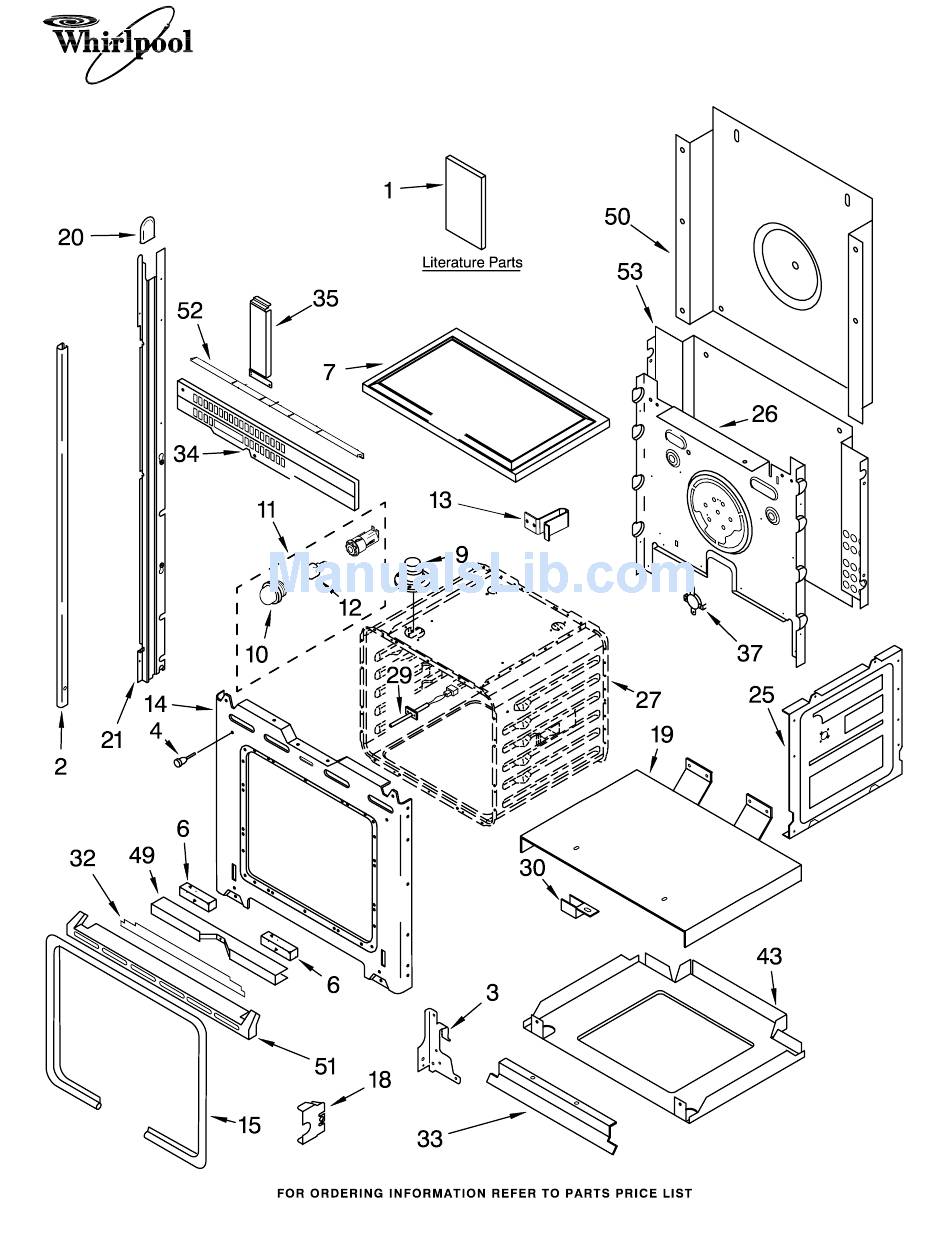

OVEN PARTS 30" BUILT−IN ELECTRIC COMBO For Models:GMC305PRB00, GMC305PRQ00, GMC305PRT00, GMC305PRS00 SENSOR/SC (Black) (White) (Biscuit) (S.Steel) (GOLD LINE) 2−08 Litho In U.S.A. (cre) Part No. 8186303 Rev.A... - Page 2 For Models:GMC305PRB00, GMC305PRQ00, GMC305PRT00, GMC305PRS00 Illus. Part DESCRIPTION Literature Parts 8300653 Installation Instructions 8303650 Use & Care Guide (Microwave) 8303649 Use & Care Guide (Oven) 8302010 Tech Sheet (Oven) 3191638 Safer Cooking Tips 9759133 Safer Cooking Tips Trim, Side 8302927 RH Black...
-
Page 3: Control Panel Parts
For Models:GMC305PRB00, GMC305PRQ00, GMC305PRT00, GMC305PRS00 8186303 CONTROL PANEL PARTS (Black) (White) Illus. Part DESCRIPTION 8303819 Assy, Control Assy, Switch 8303183 Black & Steel Mdl 8303225 White Model 8303231 Biscuit Model 8302990 Backer, Control 8281179 Screw 8301848 Board, Mtrzd Latch Control Panel 8302848 Black &... -
Page 4: Oven Door Parts
For Models:GMC305PRB00, GMC305PRQ00, GMC305PRT00, GMC305PRS00 Illus. Part DESCRIPTION 8303700 Door Liner Hinge, Door 8300577 Right Hand 8300578 Left Hand 8300573 Right Hand 8300574 Left Hand 4449743 Screw 4449259 Glass, Inner 4451722 Insulation, Door And Bottom Door 4457132 Retainer, Glass 4449809 Screw... - Page 5 For Models:GMC305PRB00, GMC305PRQ00, GMC305PRT00, GMC305PRS00 8186303 LATCH PARTS (Black) (White) (Biscuit) Illus. Part DESCRIPTION 4451759 Vent, Exhaust 4449040 Screw 4451758 Seal, Foam 4450408 Baffle, Rear 4449154 Screw 9759525 Latch, Motorized 4452003 Blower 4455178 Vent, Top 4455177 Vent, Bottom (S.Steel)
- Page 6 INTERNAL OVEN PARTS For Models:GMC305PRB00, GMC305PRQ00, GMC305PRT00, GMC305PRS00 (Black) (White) Illus. Part 4456103 Element, Broil 4449154 Screw 4457277 Grill, Broiler 4457276 Pan, Broiler 4448717 Rack, Oven 9759322 Pad, Rack 4452153 Element, Bake (Biscuit) (S.Steel) DESCRIPTION 8186303...
- Page 7 CABINET AND STIRRER PARTS For Models:GMC305PRB00, GMC305PRQ00, GMC305PRT00, GMC305PRS00 (Black) (White) (Biscuit) (S.Steel) 8186303...
- Page 8 CABINET AND STIRRER PARTS For Models:GMC305PRB00, GMC305PRQ00, GMC305PRT00, GMC305PRS00 Illus. Part DESCRIPTION 4375299 Bracket, Capacitor 4375037 Rubber Ring 4375038 Screw 4375314 Air Duct, Magnetron 4375315 Damper 4375260 Duct, Inlet 4375316 Insulation, Switch 4375322 Fan Wheel 4375317 Duct, Air 4375264 Block, Side...
- Page 9 MICROWAVE COMPARTMENT PARTS For Models:GMC305PRB00, GMC305PRQ00, GMC305PRT00, GMC305PRS00 (Black) (White) (Biscuit) (S.Steel) Illus. Part DESCRIPTION Support Rails 4452551 Right Side 4452552 Left Side 4449809 Screw 4452548 Rear Channel 4449809 Screw 4449154 Screw 8186303...
- Page 10 MICROWAVE DOOR PARTS For Models:GMC305PRB00, GMC305PRQ00, GMC305PRT00, GMC305PRS00 Illus. Part DESCRIPTION W10151072 Glass, Middle 8303556 Frame, Door 4450038 Screw Bracket, Mounting 4449141 Right Side 4449142 Left Side 4449809 Screw (Black) (White) (Biscuit) Illus. Part DESCRIPTION Filler, Side 4449083 Right Side...
- Page 11 For Models:GMC305PRB00, GMC305PRQ00, GMC305PRT00, GMC305PRS00 Illus. Part DESCRIPTION 4450378 Cover, Top 4450118 Nut 4449809 Screw 4448935 Baffle, Blower 4450920 Blower 1180485 Screw 4451789 Plate, Mounting 6610122 Transformer, (Lights) 4449809 Screw 8300642 Transformer, Control 4450027 Bracket, Duct 4449809 Screw 8186303 TOP VENTING PARTS...
-
Page 12: Optional Parts
For Models:GMC305PRB00, GMC305PRQ00, GMC305PRT00, GMC305PRS00 Illus. Part DESCRIPTION PAINT, TOUCH−UP (1/2oz.) 72017 White 261869 Cord Brown 72032 Black PAINT, SPRAY 350930 White 261900 Citrine White 830864 Black ADHESIVE 591014 Adhesive Loctite (1/3 oz.) 482338 Sealer, Silastic (3 oz.) OPTIONAL PARTS...
