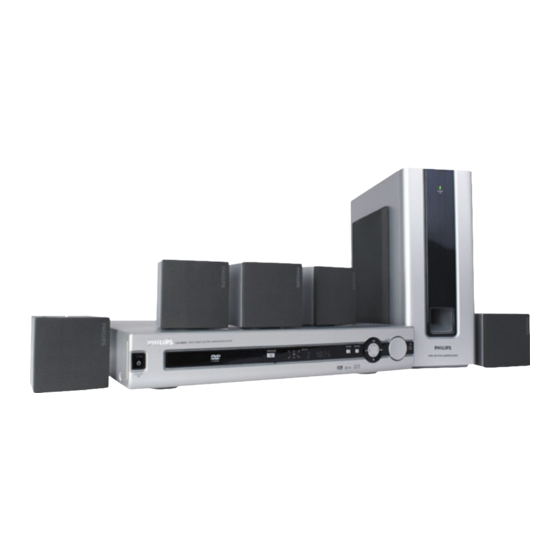

DVD Receiver
Service
Service
Service
Service
Service
Service Manual
For repair information on the Subwoofer please refer to
Service Manual of Active Subwoofer SW3000/SW3500
12NC: 3139 785 30057
©
Copyright 2002 Philips Consumer Electronics B.V. Eindhoven, The Netherlands
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or
transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise
without the prior permission of Philips.
Published by KC-ET0212 Service Audio Printed in The Netherlands
Version 1.2
TABLE OF CONTENTS
Location of PC Boards ................................................ 1-2
Versions Variation & Package .................................... 1-2
Specifications ..............................................................1-3
Measurement Setup ................................................... 1-4
Service Aids ................................................................ 1-5
ESD & Safety Instruction ............................................ 1-6
Setting Procedure & Repair Instructions ....................... 2
Disassembly Instructions & Service positions .............. 3
Block & Wiring Diagram ................................................ 4
Key/ Volume/ LED/ Earphone Board ............................. 5
Tuner Board ................................................................... 6
DVD Module:
KIT572SE .......................................... 7
KIT772SI ......................................... 7A
Main Board /Speaker Jack Board .................................. 8
MPEG Board .................................................................. 9
Scart/ RGB Board ........................................................ 10
Surround Board ........................................................... 11
Power Board ................................................................ 12
Mechanical Exploded View & Parts List ...................... 13
Document History ........................................................ 14
Subject to modification
LX3000D/
21L/21S/22S/30S/37S
LX3500D/
Page
CLASS 1
LASER PRODUCT
GB
It`s Free
21H/21R/37S
COMPACT
DIGITAL AUDIO
3139 785 30242
