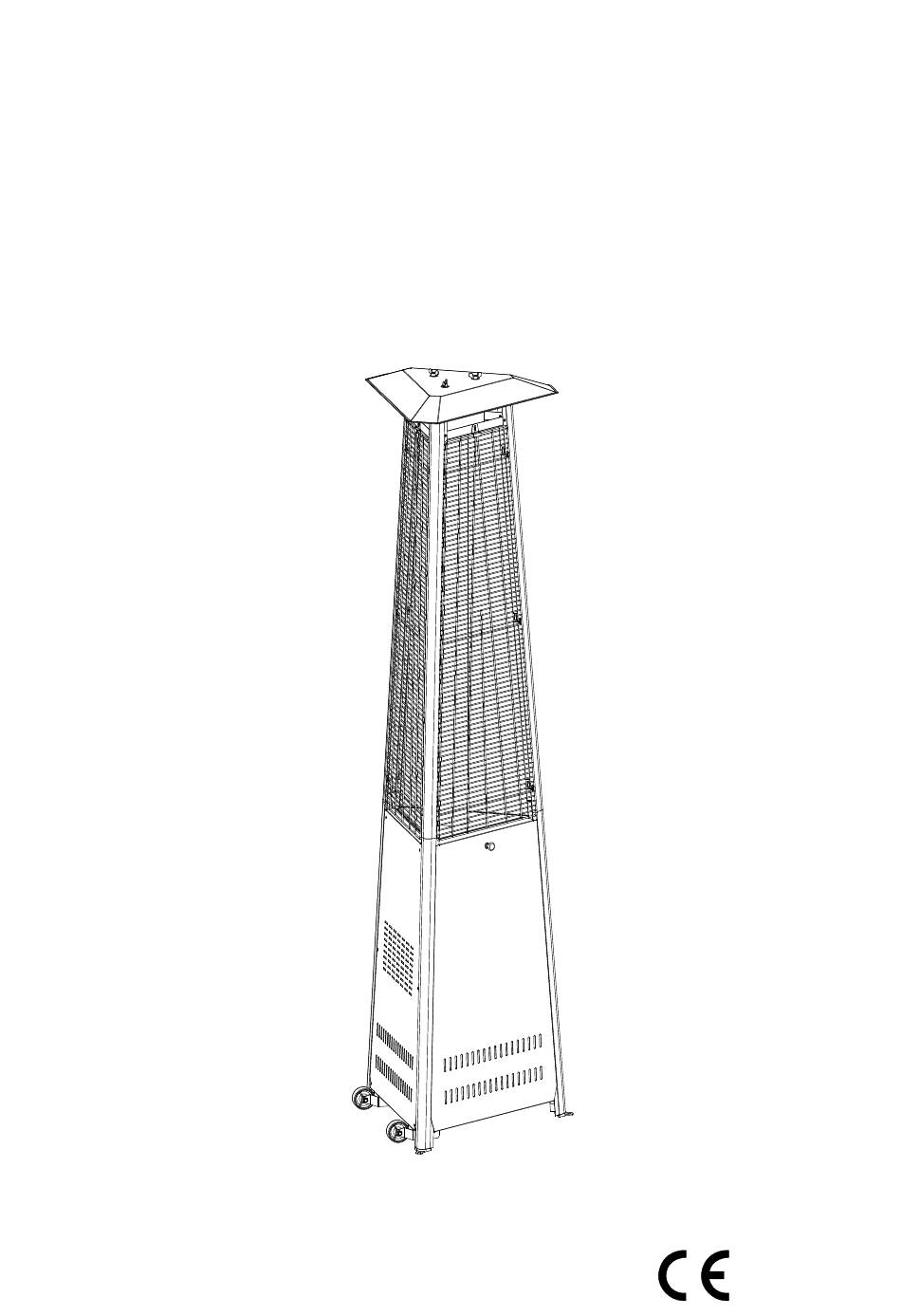

- Page 1 QUARTZ GLASS TUBE PATIO HEATER INSTRUCTION MANUAL Keep the instructions for future reference 0063...
- Page 2 WARNlNG SAFETY RULES PLEASE READ THE FOLLOWING SAFETY RULES PRlOR TO OPERATION OF THE HEATER FOR YOUR SAFETY If you smell gas: 1 Shut off gas to the appliance. 2 Extinguish any open flame. 3 If odor continues, immediately call your gas supplier or your fire Department.
- Page 3 warning Read the instructions before installation and use. -This appliance must be installed and the gas cylinder stored in accordance with the regulations in force; -Do not obstruct the ventilation holes of the cylinder housing; -Do not move the appliance when in operation; -Shut off the valve at the gas cylinder or the regulator before moving the appliance;...
-
Page 4: Table Of Contents
TABLE OF CONTENTS Caution ………………………………………………………. Heater Stand and Location ………………………………… Gas Requirements ………………………………………….. Leakage Test ………………………………………………… Operation and Storage ……………………………………... Cleaning and Care ………………………………………….. Parts and Specifications ..………………………………….. Assembly Parts and Procedures ………………………….. Problems Check List ………………………………………... -
Page 5: Caution
CAUTION PLEASE READ CAREFULLY THE FOLLOWING SAFETY GUIDELINES BEFORE OPERATION. Do not use the patio heater for indoors, as it may cause personal injury or property damage. This outdoor heater is not intended to be installed on recreational vehicles and/or boats. Installation and repair should be done by a qualified service person. -
Page 6: Heater Stand And Location
HEATER STAND AND LOCATION The heater is primarily for outdoor use only. Always ensure that CE IL IN G adequate fresh air ventilation is provided. 100 cm Always maintain proper clearance to non protected combustible materials i.e. top 100 cm and sides 100 cm minimum. Heater must be placed on level firm ground. -
Page 7: Operation And Storage
maximum Warning check that no broken on the glass is found before operation. Off: the heater stop work Hi: maximum temperature position Lo: minimum temperature position lgniter Igniter Variable control knob regulator... -
Page 8: Cleaning And Care
CLEANING AND CARE • Wipe off powder coated surfaces with soft, moist rag. Do not clean heater with cleaners that are combustible or corrosive. • Remove debris from the burner to keep it clean and safe for use. • Cover the burner unit with the optional protective cover when the heater is not in use. PARTS AND SPECIFICATIONS 600 mm Reflector... - Page 9 A. Construction and characteristics Transportable terrace/garden heater with tank housing Casing in steel with powder-coating or in stainless steel. Gas hose connections with metal clamp (screw caps for Germany) Heat emission from reflector B. Specifications Use propane,butane or their mixtures gas only. Max.
-
Page 10: Assembly Parts And Procedures
ASSEMBLY PARTS Tools needed: Philips screwdriver w/ medium blade Spray bottle of soap solution for leakage test Parts List: QUANTITY QUANTITY Reflector Block Belt Mesh Gas Hose Glass Tube Fixer Wheel Assembly Bottom plate Top Plate Front Panel Upper Support (Long) Ceramic Fiber Protective Guard Glass Tube... - Page 11 ASSEMBLY PARTS HARDWARE CONTENTS Wing nut Stud Small Flat M5 x 12 mm Screw M6 x 12 mm Bolt Qty. 3 Qty. 3 Washer Qty. 35 Qty. 8 Qty. 6 M4 x 6 mm Chain Knob Screw Qty.1 Qty. 1 Fixing Bracket Qty.1 Qty.
- Page 12 ASSEMBLY INSTRUCTIONS 1-1. Unscrew the switch button, load small battery, tighten the switch button. 1-2.Insert the hoods of bottom plate (O) to the lower holes of the three lower supports (K) Insert the hoods of control box assembly (J) AA Battery (1.5 V) to the upper holes of the three lower support (K).
-
Page 13: Problems Check List
ASSEMBLY INSTRUCTIONS Use Phillips screwdriver (LL) to fasten the control box assembly (J) and the bottom plate (O) with M5 x 12 mm screws (DD). Hardware Used M5 x 12 mm Screw Phillips Screwdriver 4.Use Phillips screwdriver (LL) to secure the top plate (D) to the upper supports (E) with M5 x 12 mm screws (DD). - Page 14 ASSEMBLY INSTRUCTIONS 5. Using wrench (KK) to assemble the wheel assembly (N) to the bottom plate (O) with M6 x 12 mm bolts (EE). Hardware Used M6 x 12 mm Bolt Wrench 6. Use Phillips screwdriver (LL) to secure the block belt (L) to the lower supports (K) with M5 x 12 mm screws (DD).
- Page 15 ASSEMBLY INSTRUCTIONS 7. Carefully install the glass tube (G) between the center of top plate (D) and control box assembly (J). Make sure the end of the glass tube (G) is inserted securely into the three clips of the control box assembly (J). 8.
- Page 16 ASSEMBLY INSTRUCTIONS 9. Assebmly the protective guard and mesh Insert the hooks of protective guard (F) to the holes of upper supports (E). Put the mesh (B) on the top plate (D). Make sure the screw holes align the holes of top plate (D). Use Phillips screwdriver (LL) to secure the mesh (B) and protective guard (F) to the top...
- Page 17 ASSEMBLY INSTRUCTIONS 11. Install the knob (GG) to M4x10 screw (HH) . Hang the chain (II) to the hole on the control box assembly (J) and put the pothook of front panel to the holes of bottom plate. Hardware Used Knob Screw M4 X 6 Chain...
- Page 18 ASSEMBLY INSTRUCTIONS 13. Propane Only-Proper Hose Connection. WARNING! Ensure the hose does not contact any high temperature surfaces, or it may melt and leak causing a fire. After the cylinder is placed inside the heater, secure the cylinder with block belt tightly. 14.
- Page 19 PROBLEMS CHECK LIST PROBLEM PROBABLE CAUSE SOLUTION Pilot will not light Gas valve may be OFF Turn the gas valve ON Tank fuel empty Refill LPG tank Opening blocked Clean or replace opening Air in supply system Purge air from lines Loose connections Check all fittings Pilot will not stay on...
