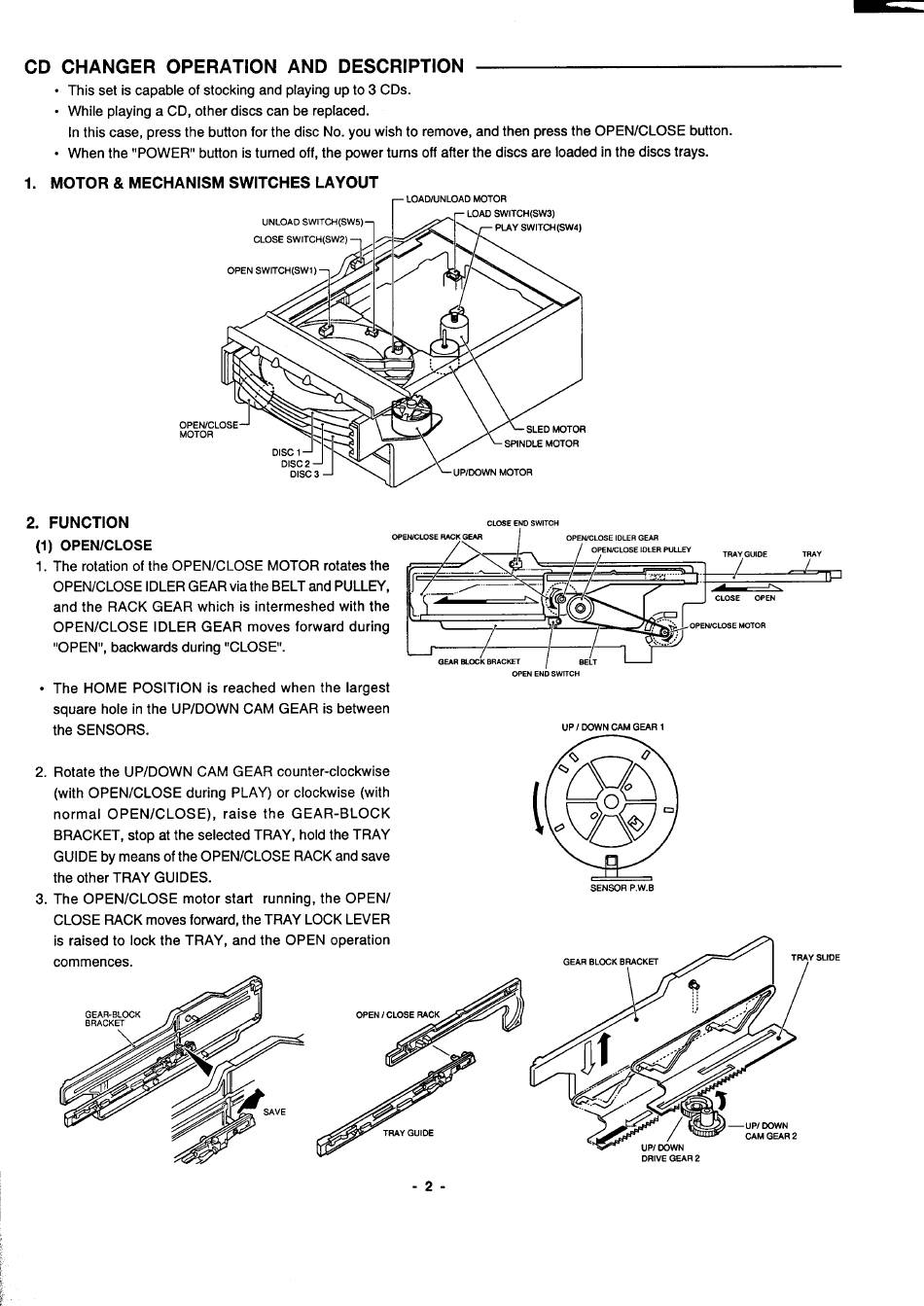

CD CHANGER
OPERATION
AND DESCRIPTION
This set is capable of stocking and playing
up
to 3 CDs.
While playing a CD, other discs can be replaced.
In this case, press the button for the disc No. you wish to remove, and then press the OPEN/CLOSE
button.
When the "POWER" button is turned off, the power turns off after the discs are loaded in the discs trays.
1.
MOTOR & MECHANISM
SWITCHES
LAYOUT
~
LOAD/UNLOAD
MOTOR
UNLOAD SWITCH(SW5)
1
I
Az5Vw::::i(sw4)
2. FUNCTION
CLOSE END SWITCH
1.
.
2.
3.
(1) OPEN/CLOSE
OPEtUCLOSE RACK GEAR
The rotation of the OPEN/CLOSE
MOTOR rotates the
OPEN/CLOSE IDLER GEAR via the BELT and PULLEY,
and the RACK GEAR which is intermeshed
with the
OPEN/CLOSE
IDLER GEAR moves forward
during
~aep
"OPEN", backwards during "CLOSE'.
-SRAGW
/~/w
OPEN END SWITCH
The HOME POSITION
is reached
when the largest
square hole in the UP/DOWN CAM GEAR is between
the SENSORS.
UP/ DOWN CAM GEAR 1
Q
'3
o
Rotate the UP/DOWN CAM GEAR counter-clockwise
(with OPEN/CLOSE
during PLAY) or clockwise
(with
f'fjv~
L&7
0° ~
normal
OPEN/CLOSE),
raise
the GEAR-BLOCK
BRACKET, stop at the selected TRAY, hold the TRAY
o
'Q
GUIDE by means of the OPEN/CLOSE
RACK and save
the other TRAY GUIDES.
The OPEN/CLOSE
motor starl
running,
the OPEN/
SENSOR P.W.B
CLOSE RACK moves forward, the TRAY LOCK LEVER
is raised to lock the TRAY, and the OPEN operation
commences.
GEAR BLOCK BRACK~
TRAY SLIDE
*
[~
J
,.-'
d~
:,1
. . .
,.,
/
...
,.,
,,.
/
,Y
',
3
—uP/
00WN
CAM
GEAR 2
UP/ OOWN
DRIVE GEAR 2
-2-
