- Page 1 MANUALE TECNICO SERRATURA A COMBINAZIONE ELETTRONICA ELECTRONIC COMBINATION LOCK, TECHNICAL MANUAL RUNNER 3154/Y - 3155/Y EN 1300 CLASSE A By JUWEL Srl web www.sercas.it mail info@sercas.it ITA/ENG 3/3031/2...
- Page 2 SERRATURA A - TASTIERA ALFANUMERICA CERTIFICATE ECB-S - MOVIMENTO A MOTORE EN 1300 CLASSE "A" COMBINAZIONE - ALIMENTAZIONE 6V. (4) ELETTRONICA - ALIMENT. D'EMERGENZA (5) ELECTRONIC - ALPHANUMERIC KEYBOARD EN 1300 CLASS "A" - MOTOR MOVEMENT CERTIFIED ECB-S COMBINATION - 6V ALIMENTATION (4) LOCK - EMERGENCY SUPPLY (5) SERRATURA Art.
- Page 3 8.75 ELECTRONIC LOCK ITALY 150 mm ERROR ART.5/8330/Y FLAT SUPERIORE FLAT INFERIORE TUTTO A SINISTRA TUTTO A DESTRA ART.5/8348/1 16 POLI CONNETTORI ALLINEATI COME DA DISEGNO 14 POLI...
- Page 4 Which instruc ons to follow ?. VERSION 03 – DELAYED OPENING (TIME-DELAY) Digit (ON) + 12 + (E). You will get : THE SAFE CAN BE OPEN ONLY AFTER A PROGRAMMABLE TIME-DELAY FROM 00 TO 99 MINUTES. 1 - beep for Version 01- NORMAL 3 - beeps for Version 03- TIME-DELAY opening It is supplied with a Time-Delay of 1 minute and an Ope- 5 - beeps for Version 05- SUPERVISION (Time-Delay)
- Page 5 ELECTRONIC LOCK INSTALLATION INSTRUCTIONS ART. RUNNER. 3154 / Y - 2155 / Y Screws not included ; recommended : screw M5 x 30 UNI7687 (Max : 6 N.m) See below indica ons for op mal dimensions and sugge- sted placement for the “hole for contacts passage” . The combina on must be placed back to the keyboard.
Need help?
Do you have a question about the SERCAS RUNNER 315 Series and is the answer not in the manual?
Questions and answers

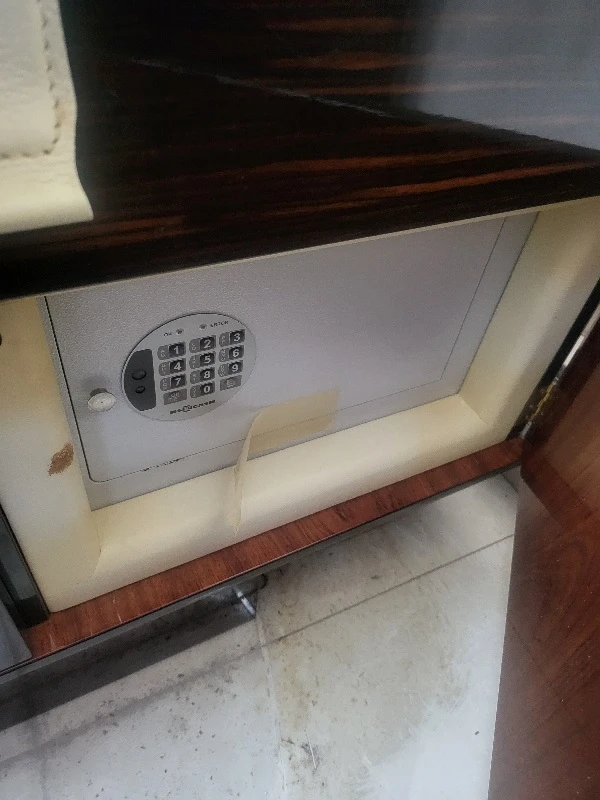

Cofre fechado com bateria descarregada. Solução para abrir?
The Juwel SERCAS RUNNER 315 Series safe has an emergency power supply option. To open the safe with a dead battery:
1. Use a 6LR61 battery (9V) as an emergency power source.
2. Connect the battery to the emergency power input of the lock.
3. Press (ON) on the keypad.
4. Enter the Personal Code.
5. Press (E) to confirm.
6. The safe should open if the correct code is entered.
Ensure you replace the internal batteries with four 1.5V LR6 alkaline batteries after opening the safe. Do not use rechargeable batteries.
This answer is automatically generated
How to open in error mode? With New AA bateries
To open the Juwel SERCAS RUNNER 315 Series in error mode with new AA batteries:
1. Ensure the keyboard is properly connected and glued without air bubbles.
2. Insert 4 new 1.5V AA alkaline batteries with correct polarity. A single beep confirms correct power.
3. Press (ON), then enter the personal code using the alphanumeric keyboard.
4. If the lock is in error mode, it may require configuration or reset using the "instructions for technicians & installers" from the manufacturer.
Note: Do not use rechargeable batteries.
