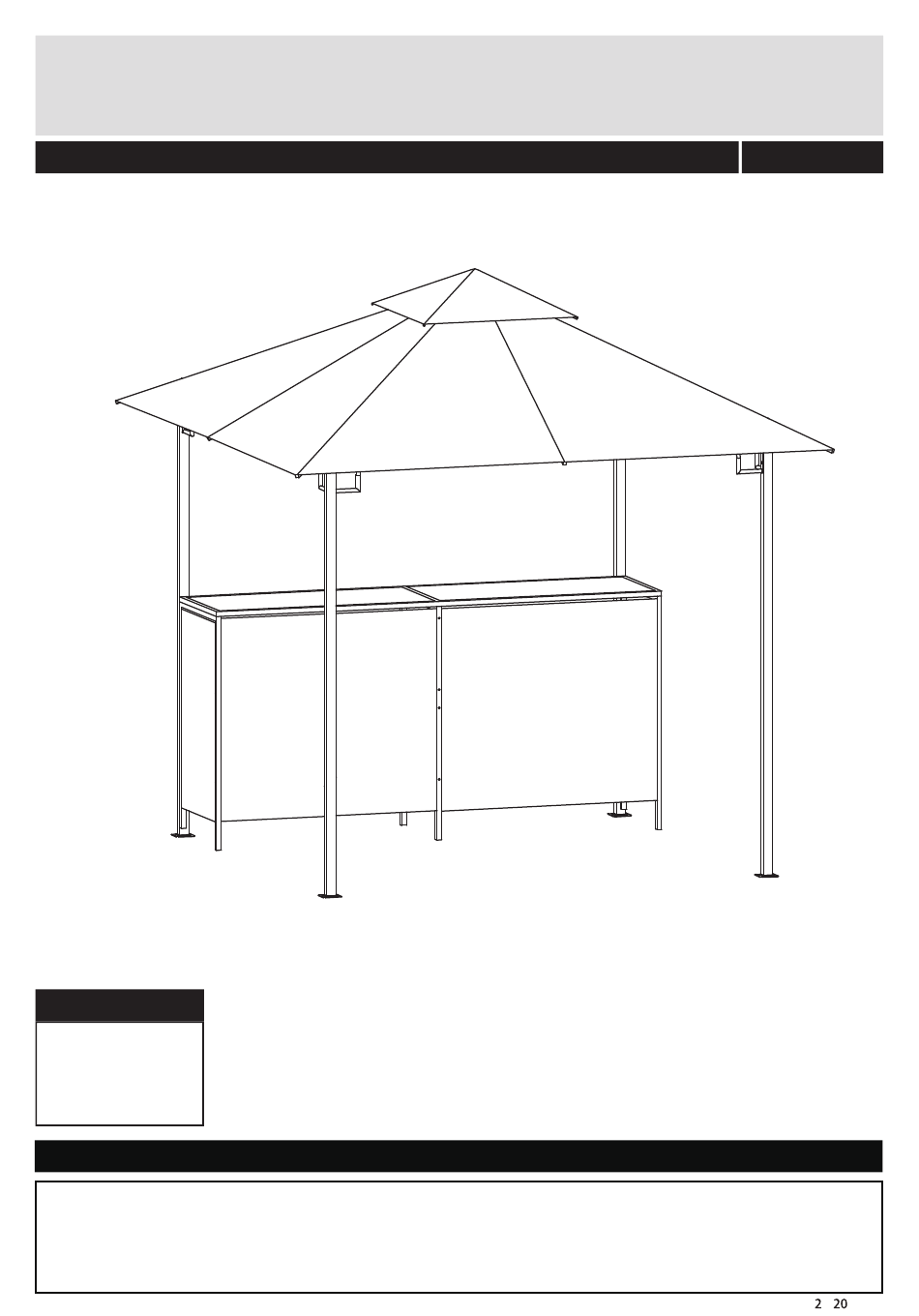

Bar Gazebo & Table
Assembly Instructions
Dimensions
Width - 245cm
Depth - 245cm
Height - 250cm
Important
– Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the
Customer Helpline: Argos = 0345 6400800
For further assistance please visit http://www.argos-support.co.uk
Address: 489-499 Avebury Boulevard Saxon Gate West, Central Milton Keynes Bucks,MK9, 2NW
- Please keep for future reference
872/9314
Issue
-
/06/14
Advertisement
Related Manuals for Argos Bar Gazebo & Table 872/9314
Summary of Contents for Argos Bar Gazebo & Table 872/9314
- Page 1 – Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: Argos = 0345 6400800 For further assistance please visit http://www.argos-support.co.uk Address: 489-499 Avebury Boulevard Saxon Gate West, Central Milton Keynes Bucks,MK9, 2NW...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read all instruction before using and keep for future reference Read these instructions carefully and familiarise when assembly. Please keep four persons under light or no yourself with the procedure children under direct supervision wind conditions. before assembling the unit. of adult when using. -
Page 3: Components - Parts
Components - Parts Customer Helpline: Argos = 0345 6400800 If you have damaged or missing components, call the Please check you have all the parts listed below Gazebo Leg Pole x 2 Gazebo Leg Pole x 1 Gazebo Leg Pole x 1... - Page 4 Components - Parts Customer Helpline: Argos = 0345 6400800 If you have damaged or missing components, call the Please check you have all the parts listed below Main Gazebo Cover x 1 Wine Glass Rack x 1 Components - Fittings...
- Page 5 Assembly Instructions Step 1 Assembling Gazebo Leg and Support Poles connect the support pole to leg pole with screws Note: suggest to complete this product assembly by 2 persons Important note: Because of the size of this unit we recommend that it is built in the place intended for using.
- Page 6 Assembly Instructions Step 2 Assembling Metal Connector onto the gazebo frame a: After fixing leg poles assemble metal connector onto leg poles with srews At this step please keep metal connector 45 degrees with the line of support poles b: Fix metal connectors onto the support poles with screws Step 3...
- Page 7 Assembly Instructions Step 4 Assembling gazebo covers Carefully place the upper gazebo cover and the main cover over the assembled top poles. Then fix the upper gazebo gazebo cover tightly over the assembled roof frame. But at this step please do not fix the main gazebo cover tightly.
- Page 8 Assembly Instructions Step 6 Assembling bar table Fix table legs Fix table legs onto table top frame with screws Important: Do not fully tighten all screws until assembly is complete. Step 7 Assembling panels Insert sling tube into panels Insert sling tube into panels...
- Page 9 Assembly Instructions Step 8 Assembling table sling tubes into the table frame connect the panels to table legs with screws with screws connect the panels to table legs with screws...
- Page 10 Assembly Instructions Step 9 Assembling shelves onto the table legs connect the shelves onto the table legs with screws and screw caps connect the shelves connect the onto the table legs with screws and screw caps Step 10 Connect the table and the gazebo leg poles Fix the table legs onto the gazebo poles...
