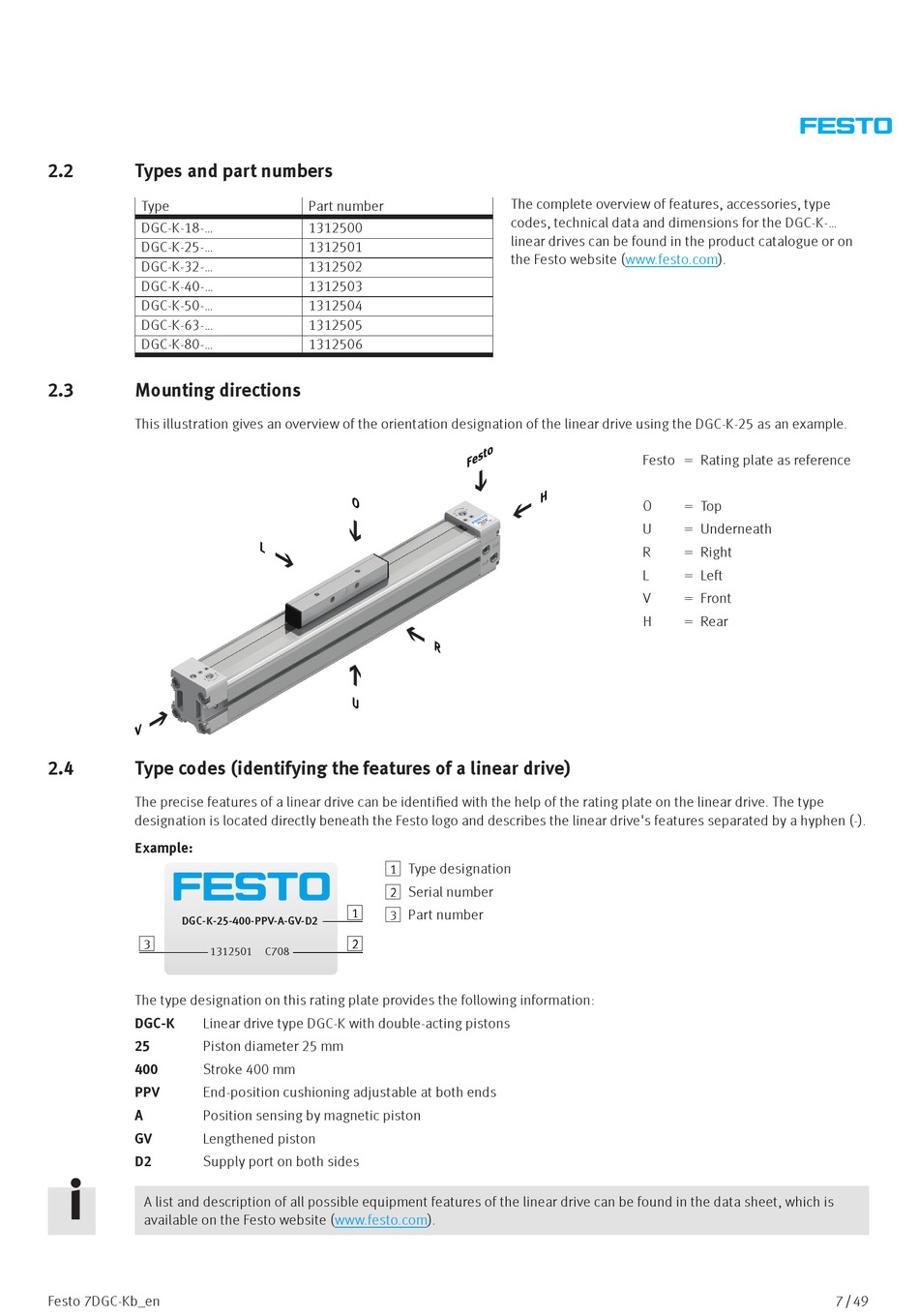

2.2

Types and part numbers

Type

DGC-K-18-...

DGC-K-25-...
DGC-K-32-...
DGC-K-40-...
DGC-K-50-...
DGC-K-63-...
DGC-K-80-...
2.3

Mounting directions

This illustration gives an overview of the orientation designation of the linear drive using the DGC-K-25 as an example.
2.4

Type codes (identifying the features of a linear drive)

The precise features of a linear drive can be identifi ed with the help of the rating plate on the linear drive. The type
designation is located directly beneath the Festo logo and describes the linear drive's features separated by a hyphen (-).
Example:
DGC-K-25-400-PPV-A-GV-D2
3
1312501
The type designation on this rating plate provides the following information:
DGC-K Linear drive type DGC-K with double-acting pistons
25 Piston diameter 25 mm
400 Stroke 400 mm
PPV
End-position cushioning adjustable at both ends
A
Position sensing by magnetic piston
GV
Lengthened piston
D2 Supply port on both sides
A list and description of all possible equipment features of the linear drive can be found in the data sheet, which is
available on the Festo website (www.festo.com).
Festo 7DGC-Kb_en
Part number
1312500
1312501
1312502
1312503
1312504
1312505
1312506
1 Type designation
2 Serial number
1
3 Part number
2
C708
The complete overview of features, accessories, type
codes, technical data and dimensions for the DGC-K-...
linear drives can be found in the product catalogue or on
the Festo website (www.festo.com).
Festo = Rating plate as reference
O = Top
U = Underneath
R = Right
L = Left
V = Front
H = Rear
7 / 49
