- Page 1 TOP AND CONSOLE PARTS 29"GAS DRYER For Model: WGD5300SQ0, WGD5300ST0 (Designer White) (Biscuit) 5−06 Litho in U.S.A. (LT) Part No. 8181288...

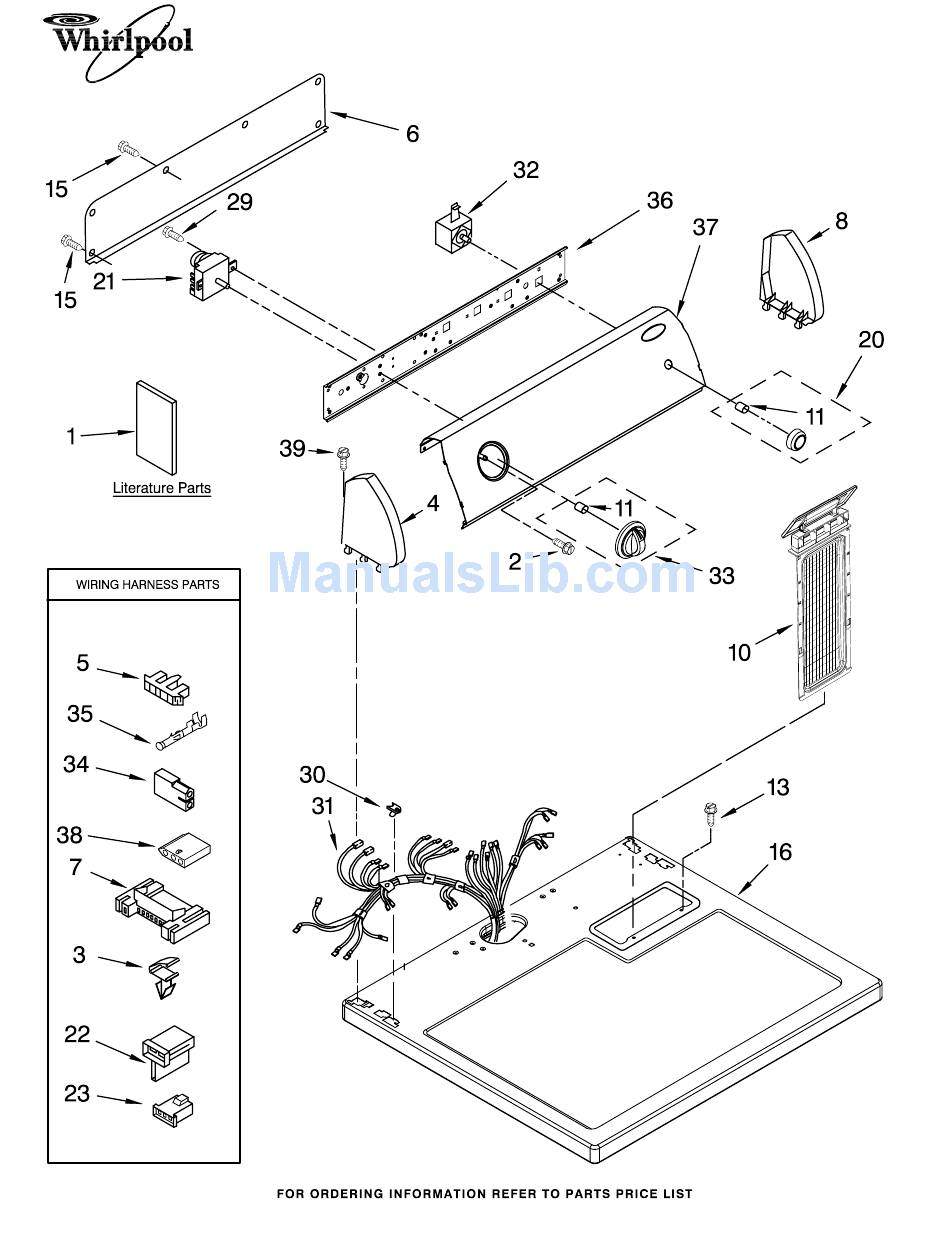

- Page 2 677818 Dryer 8533951 Screw, Grounding 3394427 Clip, Harness Cap, End (L.H.) 8271365 White 8271368 Biscuit 3397269 Connector (Timer) TOP AND CONSOLE PARTS For Model: WGD5300SQ0, WGD5300ST0 (Designer White) (Biscuit) Illus. Part DESCRIPTION 8274261 Panel, Rear Console 3395683 Housing, Connector (Motor) Cap, End (R.H.)
-
Page 3: Cabinet Parts
CABINET PARTS For Model: WGD5300SQ0, WGD5300ST0 (Designer White) (Biscuit) 8181288... - Page 4 Hinge Hole 3404413 White 3404415 Biscuit 3392100 Foot, Dryer 279810 Foot − Optional (Extended Length Package Of 2 (Not Included) CABINET PARTS For Model: WGD5300SQ0, WGD5300ST0 (Designer White) (Biscuit) Illus. Part DESCRIPTION Cabinet (Includes Illus. 8) 8530603 White 8530606 Biscuit...
- Page 5 BULKHEAD PARTS For Model: WGD5300SQ0, WGD5300ST0 (Designer White) (Biscuit) 8181288...
- Page 6 BULKHEAD PARTS For Model: WGD5300SQ0, WGD5300ST0 (Designer White) (Biscuit) Illus. Part DESCRIPTION 348368 Lint Chute Assembly 489463 Screw, 8−18 x 5/8 3388703 Washer−Support 347139 Seal, Lint Chute 90767 Screw, 8−18 x 3/8 3406022 Bracket, Bulkhead 3392519 Fuse, Thermal 8066086 Drum Hole...
-
Page 7: Burner Assembly
8318272 BURNER ASSEMBLY For Model: WGD5300SQ0, WGD5300ST0 (Designer White) (Biscuit) USE WITH TYPE 1 − NATURAL AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES BA−150 8181288... - Page 8 8318272 BURNER ASSEMBLY For Model: WGD5300SQ0, WGD5300ST0 (Designer White) (Biscuit) USE WITH TYPE 1 − NATURAL AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES Illus. Part 8318272 Burner Assembly 688617 Tube, Burner 694298 Bracket, Ignitor 686590 Ignitor 3393909 Screw & Washer 343641 Screw, 10−16 x 1/2...
- Page 9 OPTIONAL PARTS (NOT INCLUDED) 8181288 For Model: WGD5300SQ0, WGD5300ST0 (Designer White) (Biscuit) Illus. Part DESCRIPTION ACCESSORY PARTS 279948 Kit, Dryer Repair 346764 Kit, Hold−Down (Gas Dryer Mobile Home Installation) 3404351 Dry Rack 8522199 Kit, Dryer Vent Testing PAINT, TOUCH−UP (1/2oz.)
