Pella Architect Series Service Instruction

Sliding door screen and screen track replacement
Hide thumbs Also See for Architect Series:
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual
Sliding Door Screen and Screen Track Replacement
Service Instruction
These instructions apply to:
Architect Series
®
12/2004-Current
Designer Series
®
3/2005-Current
5/2011 - Current: One-Piece Track
1

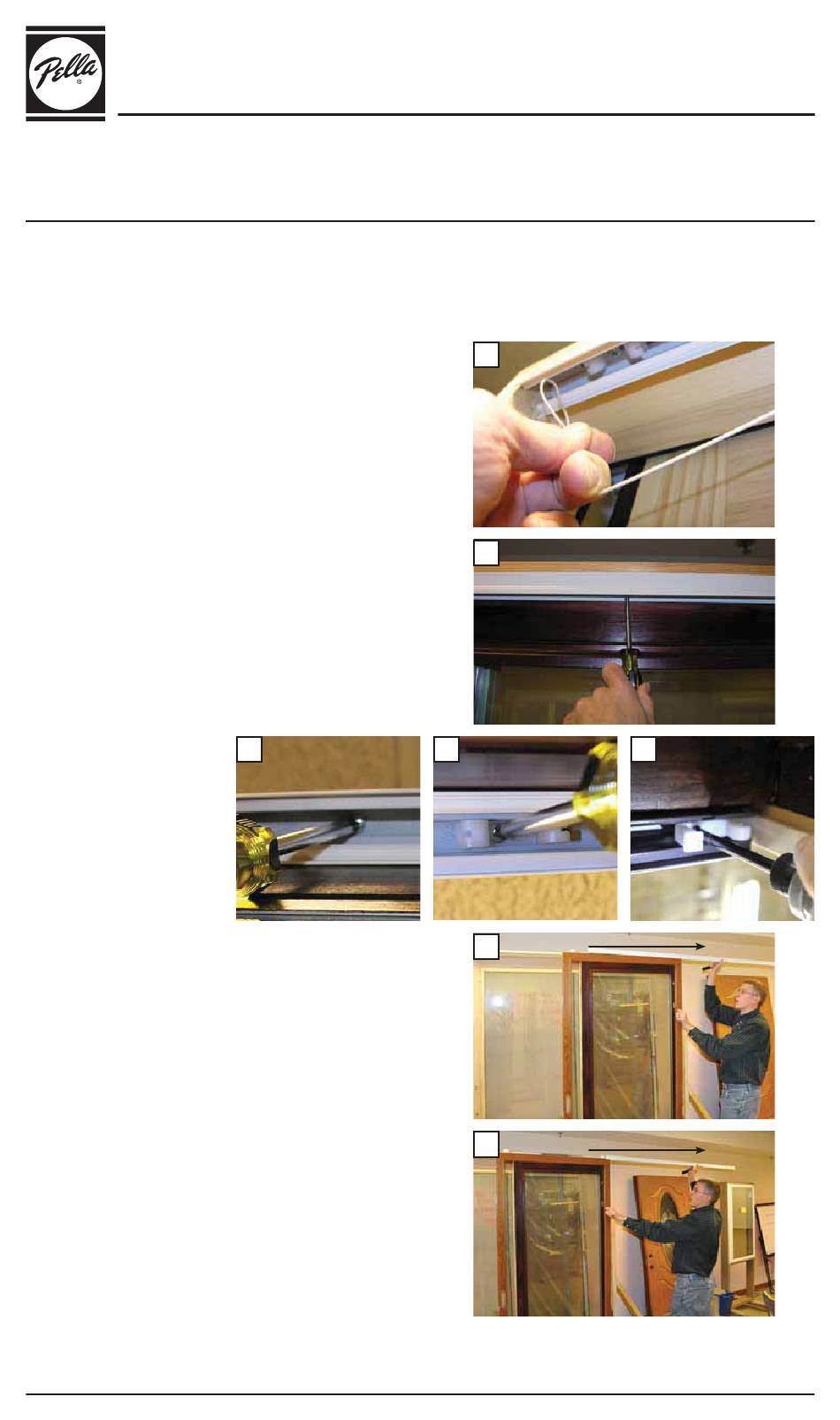

Removing The Screen Track, Screen and Screen Rollers
Note: The screen remains in the track while the track is
removed and/or installed.
A. Locate the Cord / screen holder with the cord
attached, disconnect the cord from the holder.
B. Locate the four screws at the head of the door frame
and turn each screw counter-clockwise to remove.
The screw at each end of the track is the attachment
screw for the factory-installed cord / screen holder.
Note: OXXO (4-panel) doors use two screen tracks which
meet in the center. Remove each track separately as
described above.
Note: Clip design may vary slightly from clips shown here.
C. When the screen track and screen are removed
from the frame, slide the screen track off of the
rollers on the top of the screen.
© 2014 Pella Corporation
1B
Page 1 of 7
Tools Required:
• #2 Phillips head screwdriver
1A
1B
1B
2004-3/2014
1C
1C
1B
3/2014-Current
Rev. 02/28/14
Part Number:80GA0003
