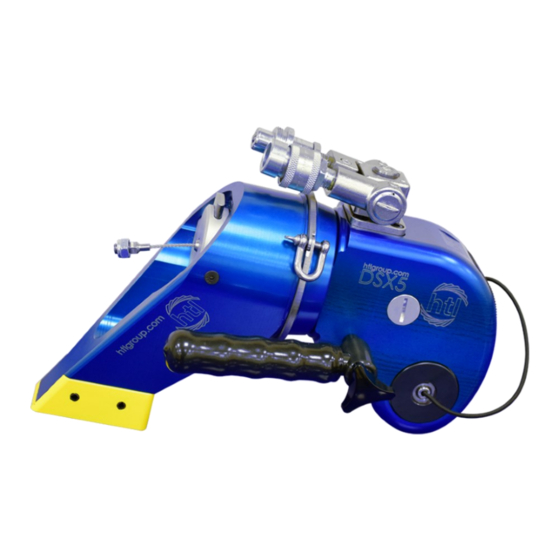

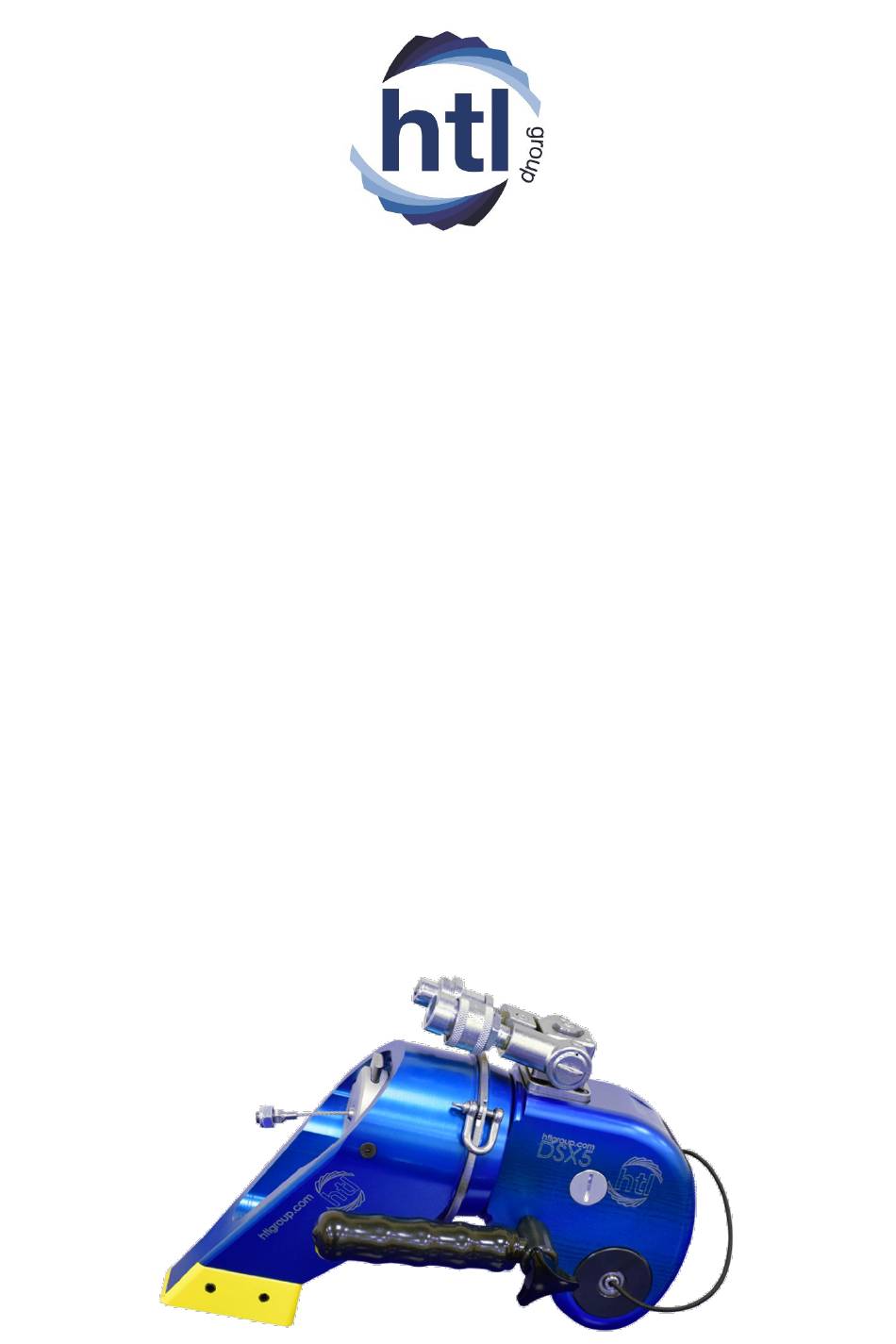

- Page 1 OPERATING INSTRUCTIONS HTL-DSX Dedicated Square Drive Wrench...
-
Page 2: Table Of Contents
CONTENTS Contents Safety Warranty Connecting the tool Setting the torque Operating the wrench Maintenance Troubleshooting guide Declaration Notes 9-11 Spare parts 12-15 Contact us SAFETY Please read this manual before operating the equipment. Prior to commencement of bolt torqueing, ensure that: •... -
Page 3: Warranty
HTL Group Ltd, this guarantee is rendered null and void. In the event of a warranty claim, return the equipment to HTL Group Ltd or the authorised dealer which sold you the hydraulic equipment. HTL Group Ltd will repair or replace the faulty equipment, whichever is deemed most appropriate. -
Page 4: Setting The Torque
malfunction, do not reverse connectors. Do not try to loosen the swivel assembly at any moment. Connect the twin-line hose to the swivel as shown: Drive direction change To remove the square drive, disengage the drive retainer assembly by depressing the round center button and gently pulling on the square end of the square drive. -
Page 5: Operating The Wrench
Depress the advance remote control button, causing the pressure to be shown on the gauge. Adjust the pressure by loosening the locking ring on the T Handle. Rotate the handle clockwise to increase the pressure and counter clockwise to decrease the pressure. When decreasing pressure, always lower the pressure below the desired point and then bring the gauge back up to the desired pressure. -
Page 6: Maintenance
All structural parts on the tools should be inspected at least once a year to determine if there are any cracks, chips, or deformities. We recommend you use HTL Group’s Pro-Moly Lubricant TROUBLESHOOTING GUIDE SYMPTOM... - Page 7 If problem persists, check pawls. Linkage between piston rod and Replace parts as necessary - return to HTL. drive plate is broken Voltage to electric pump is too Get shorter extension cord. If shop power is low to line drop or inadequate...
-
Page 8: Declaration
DECLARATION... -
Page 9: Notes
NOTES... - Page 10 NOTES...
- Page 11 NOTES...
-
Page 12: Spare Parts
CONTACT US HTL Group Corporate Headquarters 45 Colbourne Avenue Nelson Park Industrial Estate Cramlington Northumberland NE23 1WD Phone: +44 (0) 1670 700 000 Email: info@htlgroup.com HTL Europe b.v HTL Australasia Pty Ltd Euroweg 30 466 Victoria Road NL-2988 CM Ridderkerk...
