Simrad RF25 Instructions page 2

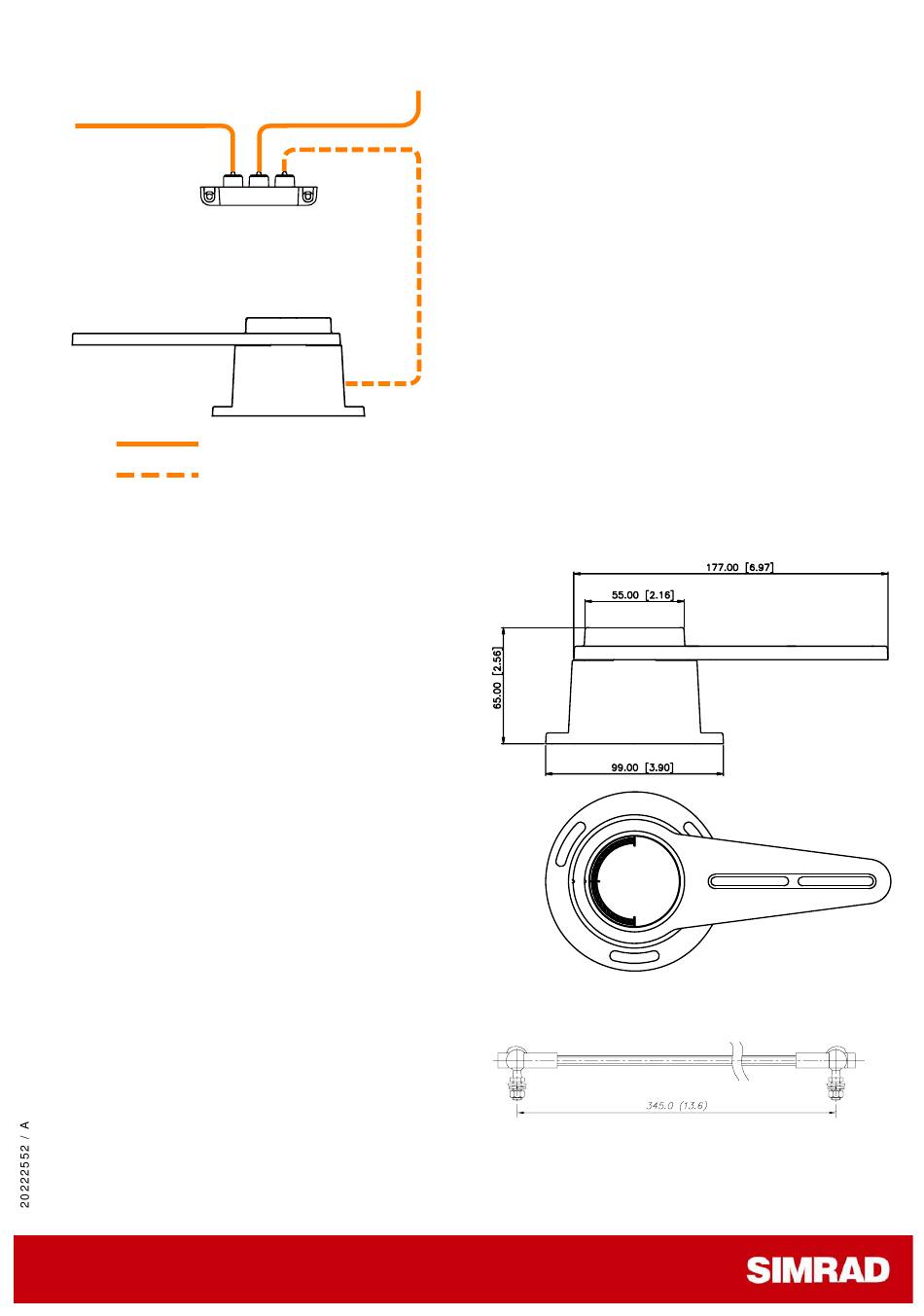

ELECTRICAL CONNECTION
8-16V SimNet supply
RF25 Rudder Feedback Unit
SimNet backbone
SimNet drop cable
RF25 connection to SimNet
TECHNICAL SPECIFICATIONS
Dimensions: ................... See figure
Weight: ......................... 0,5 kg (1,1 lbs)
Material: ....................... Arnite T06 200 PBT
Environmental Protection: IP56
Safe distance to compass: 1,0 m (3,1 ft.)
Temperature range:
Operation:.............. –25 to +55 °C
Storage:................. –30 to +70 °C
Mounting: ..................... Horizontal, vertical,
Supply and interface: ...... 8-16V via SimNet
Power consumption: ........ 0,4W
SimNet Network load factor (NL): 1
SimNet ports (input/output): 1
Cable supplied:............... 5 m (16') SimNet
Rudder angle: ................ ±120 degrees
Output signal: ................ SimNet/NMEA2000
Accuracy: ...................... ±0.25° within ±5°,
Repeatability:................. ±0.1°
NMEA compliant
Transmitter link: ............. Stainless 345 mm
Ball joint stud for rudder arm requires 4.2 mm
diameter hole and 5 mm tap.
SimNet
T-joiner
(–13 to +130 °F)
(–22 to + 158 °F)
or upside down
cable with connector
PGN127245
otherwise ±0.5°
(13.6") with 2 ball
joints.
SPARE PARTS
22014286 RF25 Rudder Feedback
w/accessories
20193454 Transmitter link
44133122
20193624
RF25 Dimensions
Transmitter Link – dimensions
Page 2 of 2
Transmitter rod
M5x325mm
Ball joint Ass'y (2)
